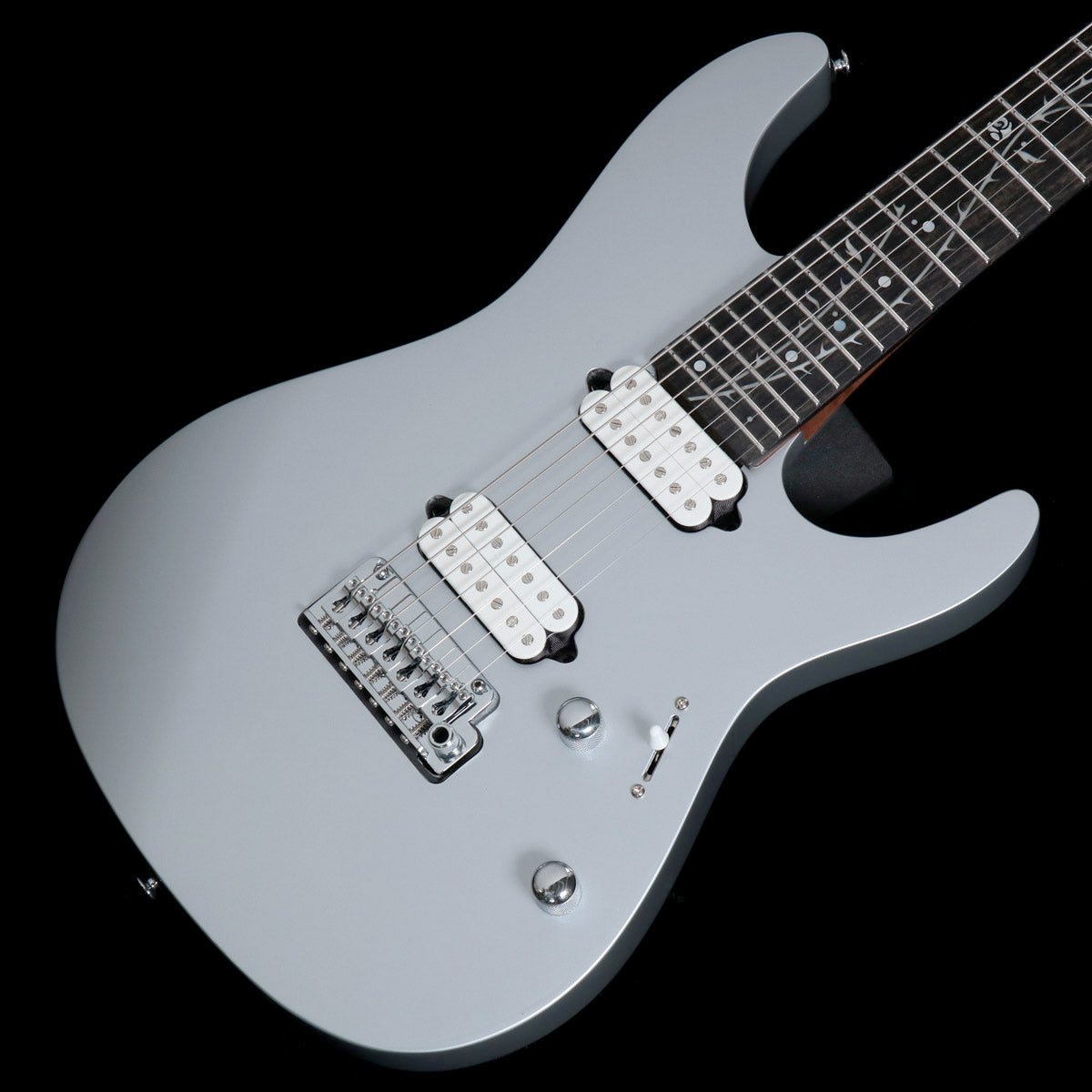

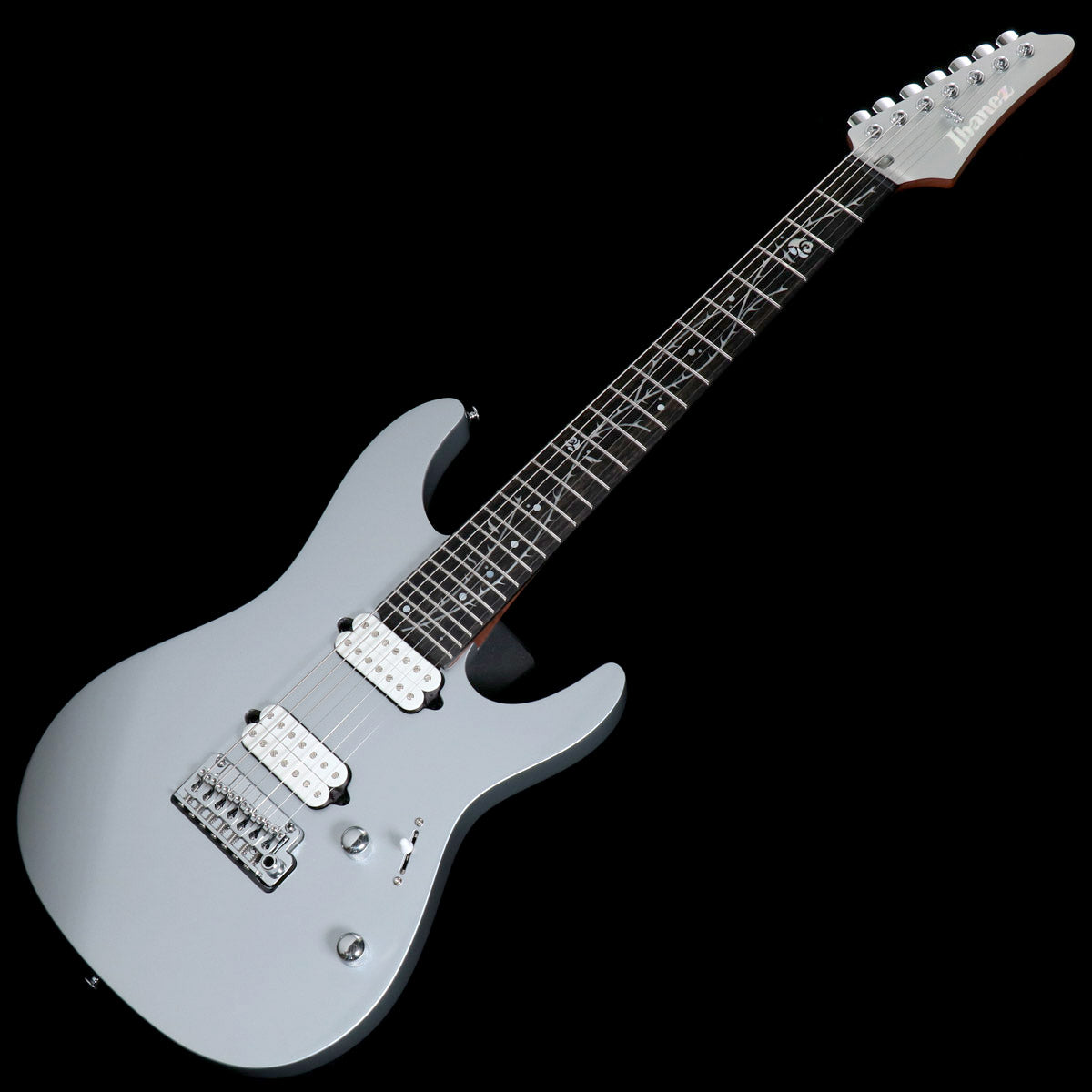

Ibanez / Tim Henson Signature Model TOD70 Tim Henson Polyphia [7-string model]

Tim Henson (Polyphia) signature 7 string model based on the AZ series with Fishman pickups and an impressive fretboard inlay design named "Tree Of Death" by Tim himself! AZ7 Oval C Roasted C

AZ7 Oval C Roasted Maple neck

The neck is made of heat-treated maple wood.

The heat treatment provides shape stability, durability against warping, water resistance, and resistance to temperature changes.

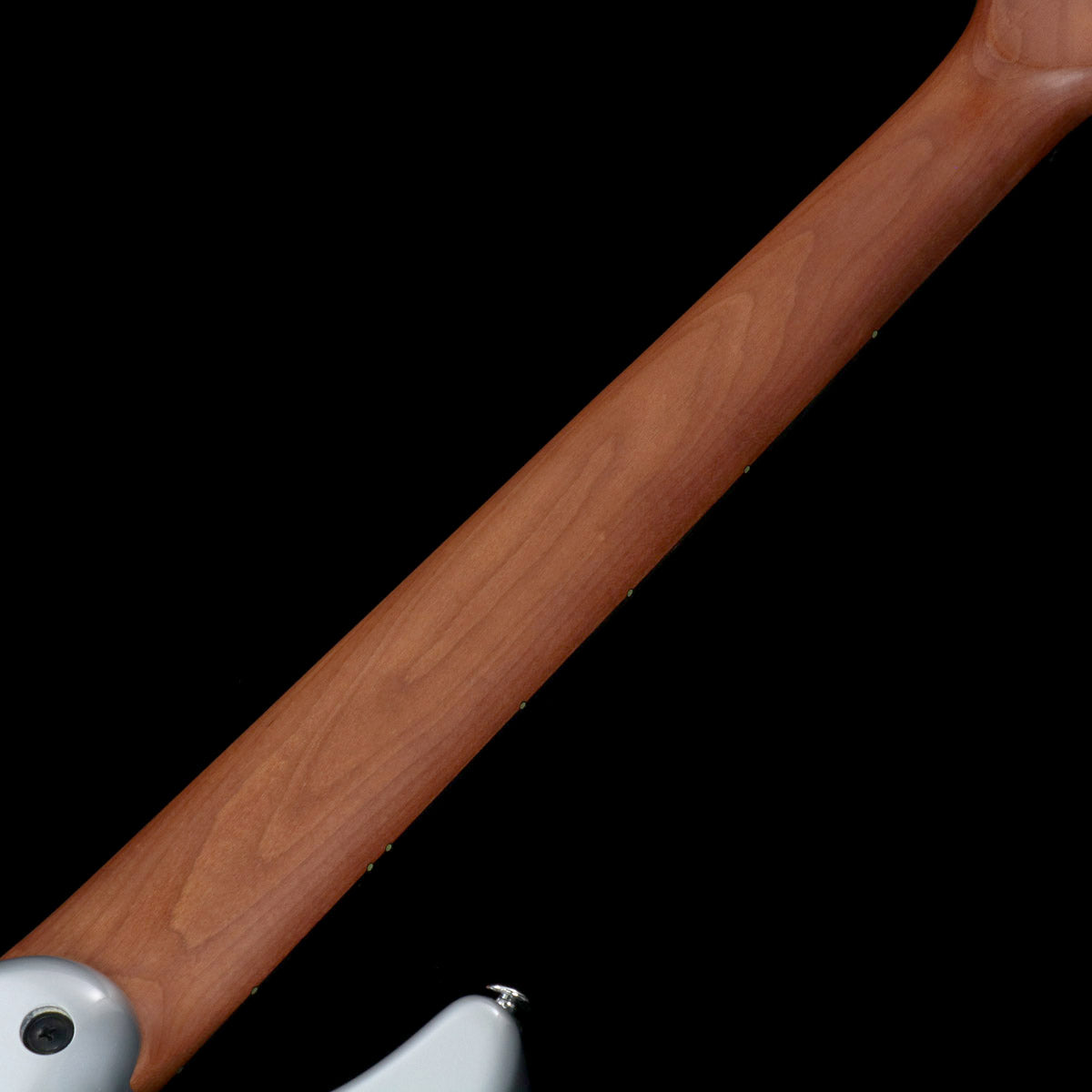

The back of the neck is finished with a satin finish to provide a smooth playing feel.

The original neck shape was created by measuring and analyzing the neck grips of dozens of guitars from both our own and other companies.

The neck is shaped to drop gently from the fingerboard-neck bonding surface to the fingerboard edge, and the fingerboard edge is rounded for a comfortable grip. The ball milling process reproduces the shape precisely and reliably.

The neck is 47 mm wide at the nut and 66 mm wide at the 24th fret, with special attention paid to grip comfort at the low frets and to playability in the classical style with the thumb on the back of the neck at the high frets.

Stainless Steel Fret

The fret is characterized by excellent maintenance, fast note rise, good separation when playing chords, and clear sound even when playing single notes.

Luminescent side dot inlay

The luminescent side dot inlay is highly visible and can be used in a variety of playing environments, including those with rapidly changing lighting conditions. You will never lose sight of the notes you want to play, even on a dark stage.

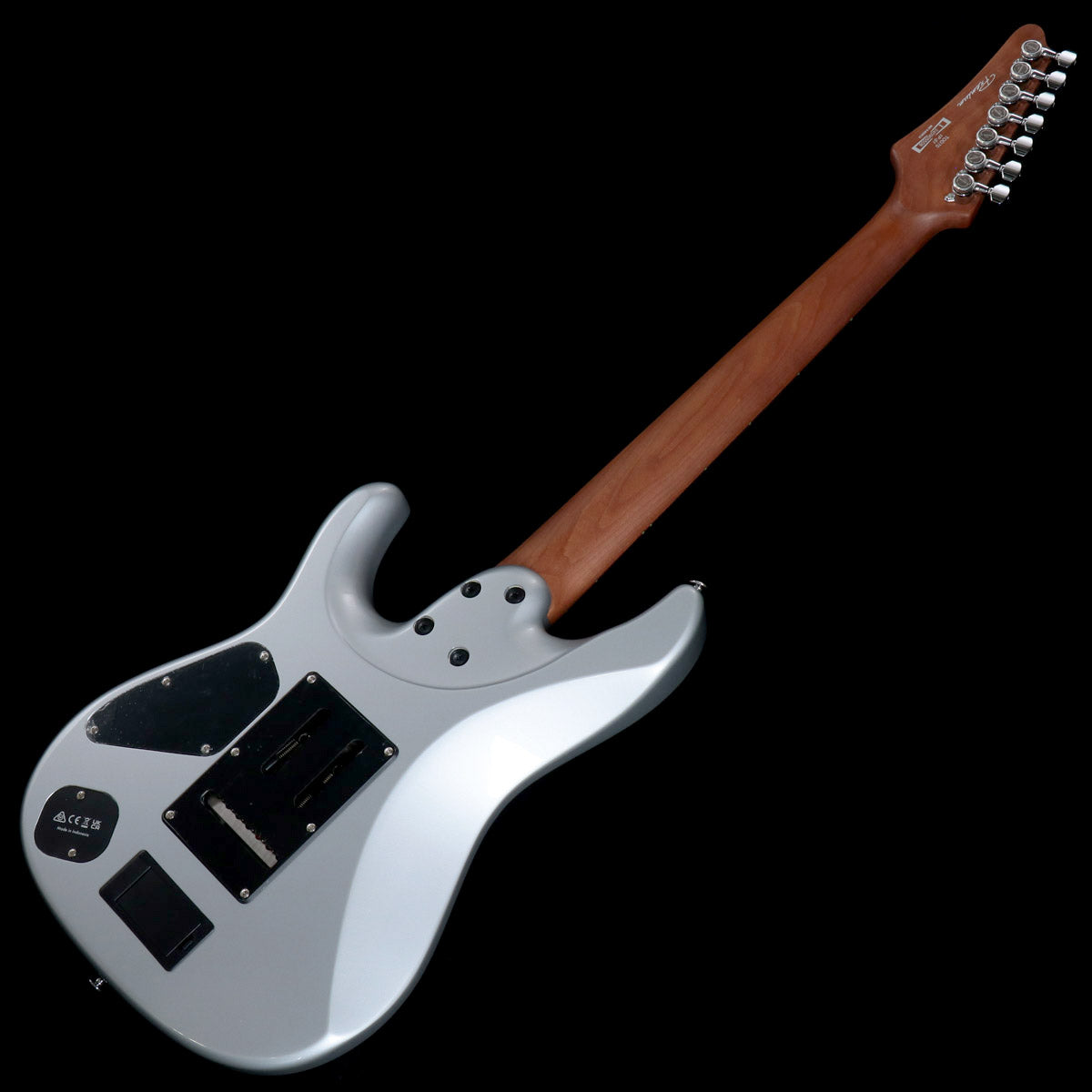

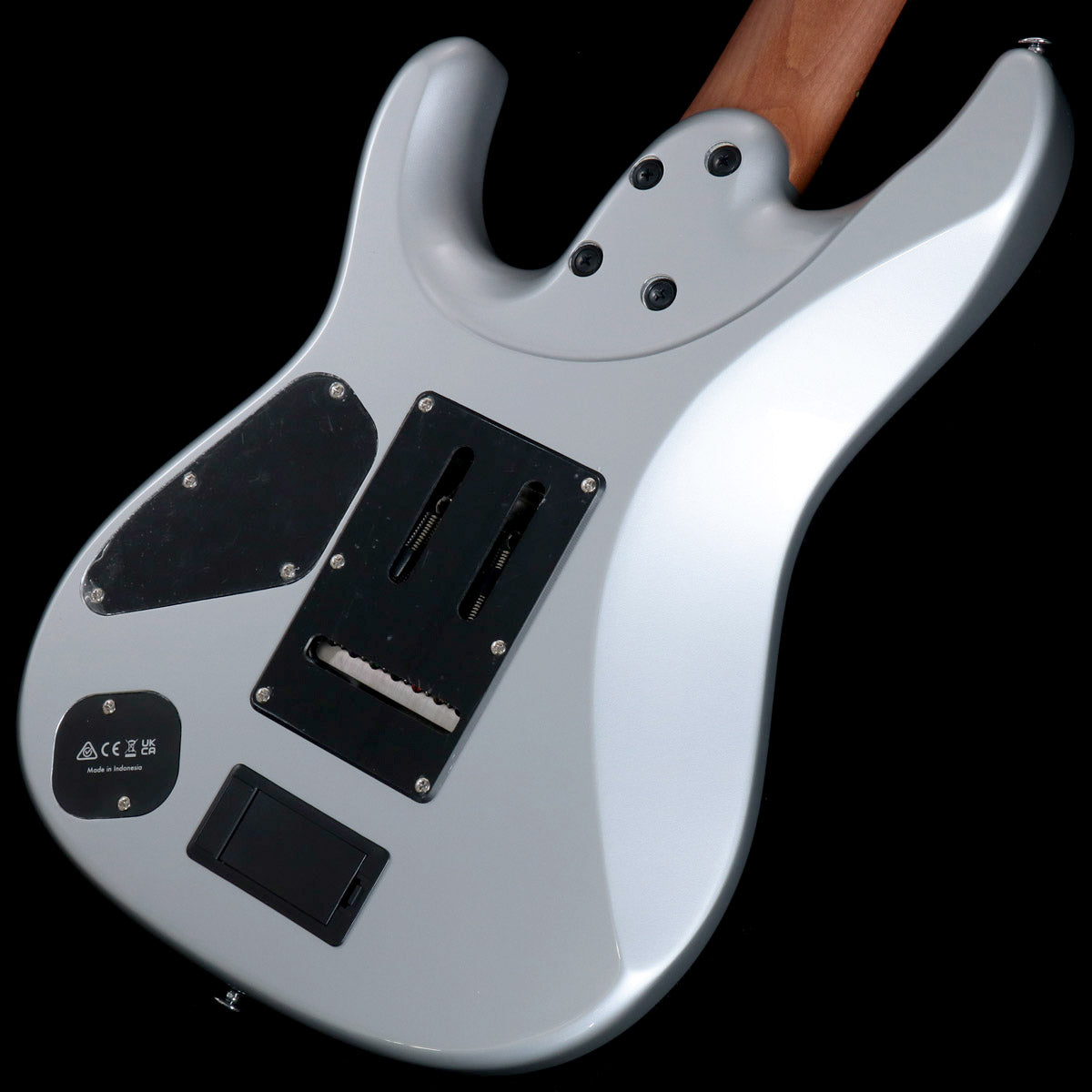

A shallow body back contour and Super All Access Neck Joint

The original body shape was designed for a contemporary look.

The thin body contour and large elbow contour, reminiscent of Ibanez's signature "S" model, create a sense of unity between the player and the guitar and contribute greatly to improved playability.

The deep neck of the body makes the guitar easy to hold and maneuver on stage, and also contributes to its high playability.

The ergonomic design of the body has a 3mm radius on the front side and an 8mm radius on the back side, with different radiuses on the front and back sides, so that the player can feel a good fit the moment he or she holds the guitar, regardless of whether he or she is seated or standing.

The "Super All Access Neck" is carved at a height difference of 8mm from the back of the body, and the joint with the neck is finished with a spherical surface to achieve high playability.

The cutaway on the bass string side is designed to be shallow to maximize the area between the body and the neck.

The horn and cutaway have a large gouge shape reminiscent of Ibanez's flagship model, the RG.

It is easy to play in the high position.

It is finished in the same gloss silver color as TOD10.

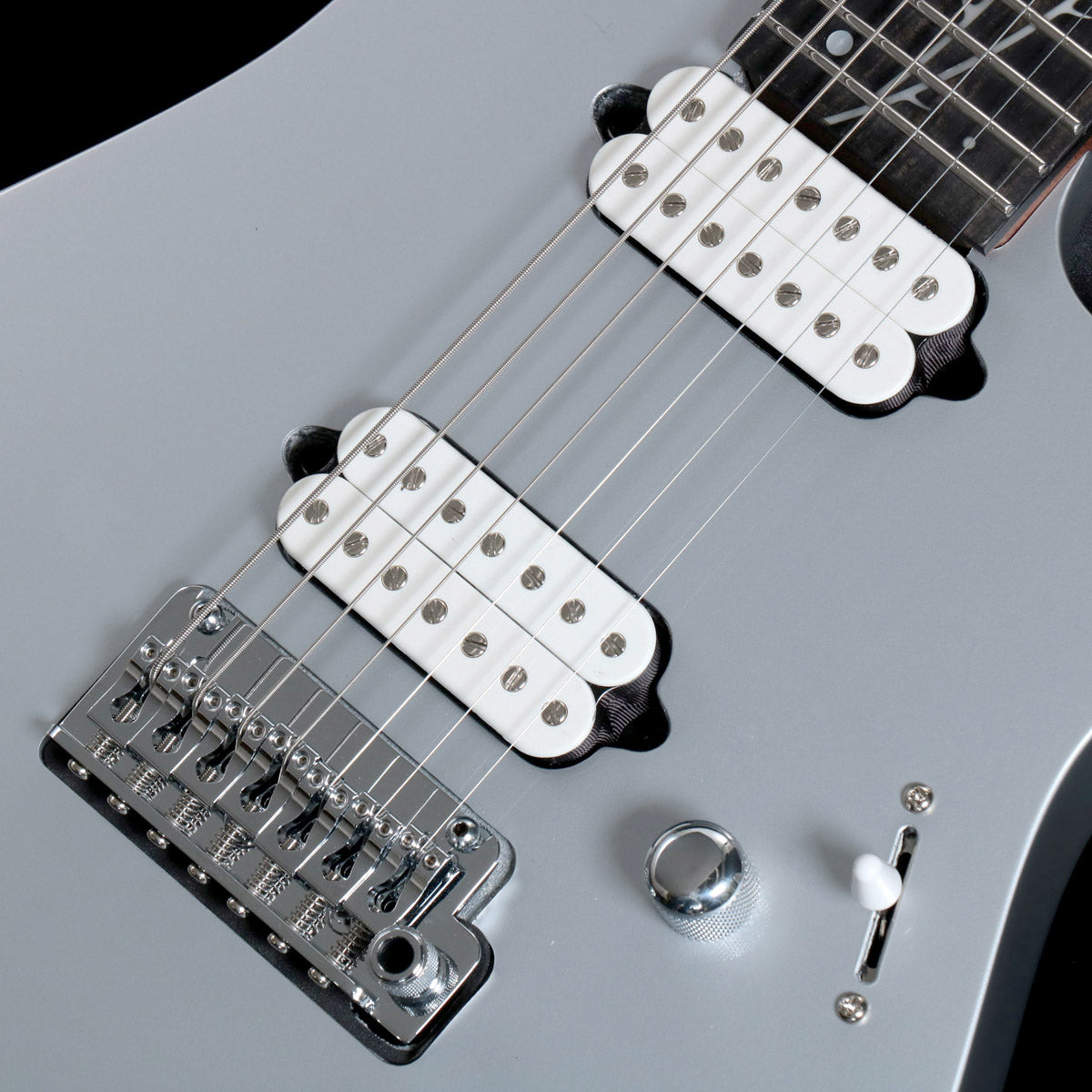

Fishman Fluence Tim Henson Signature Series 7 pickups

The Tim Henson Signature Series 7 pickups are designed to produce a wide range of sounds, from aggressive lead and backing sounds to single-coil clean sounds and even acoustic guitar-like sounds.

Main Specifications
Neck type : AZ7 Oval C Roasted Maple neck
Body : American Basswood body

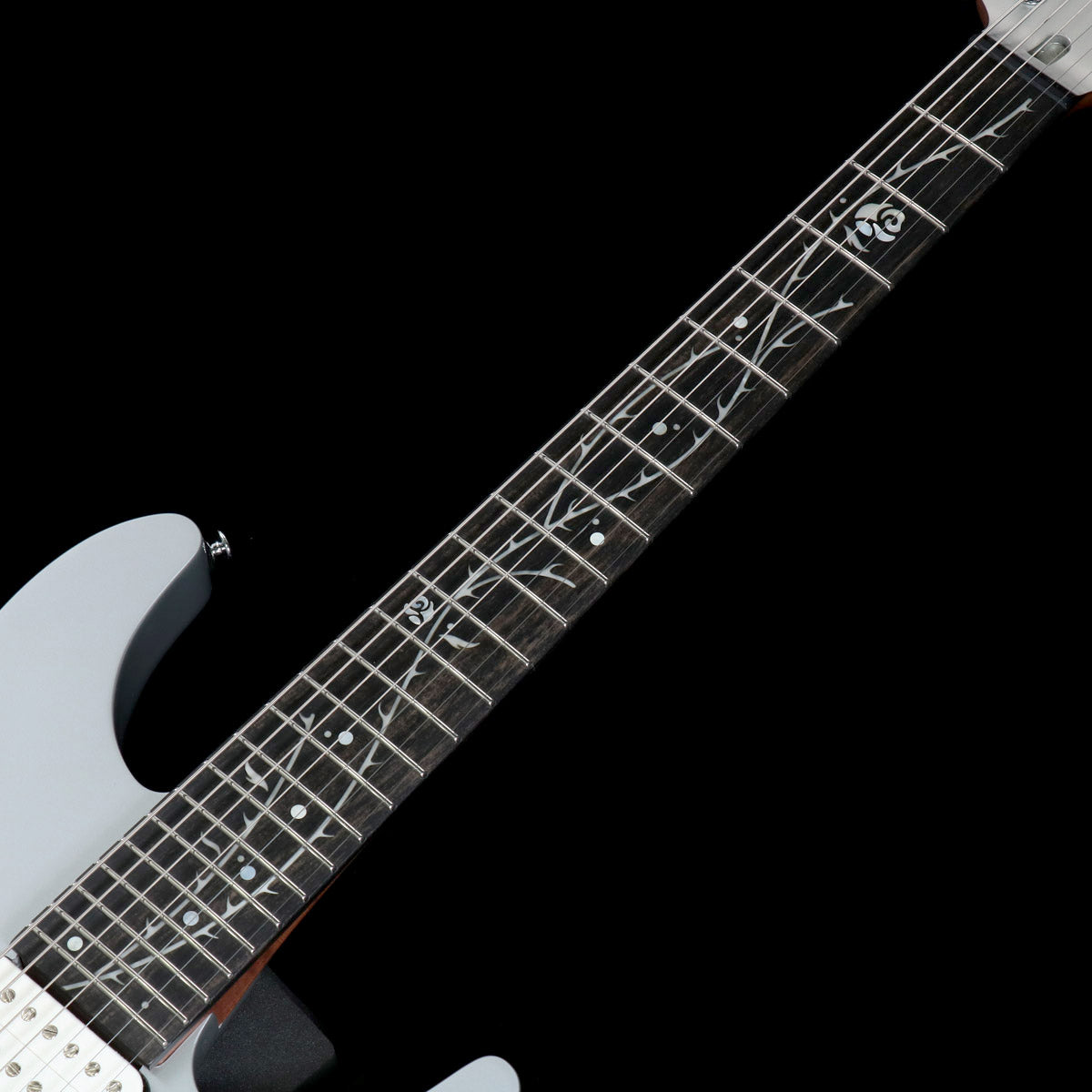

Fretboard : Ebony fretboard w/ Tree of Death inlay & Luminescent side dot inlay
Fret : Jumbo Stainless Steel fret

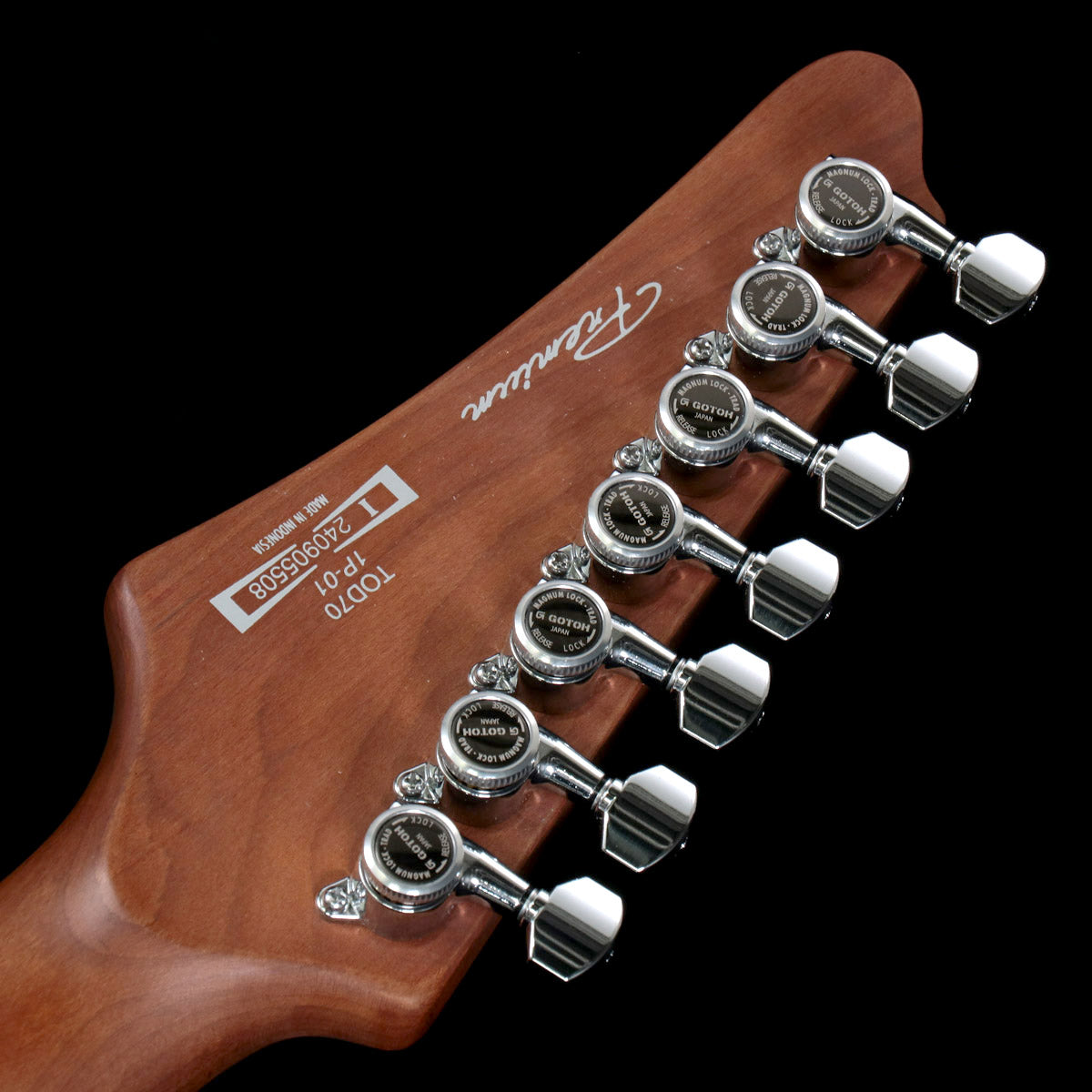

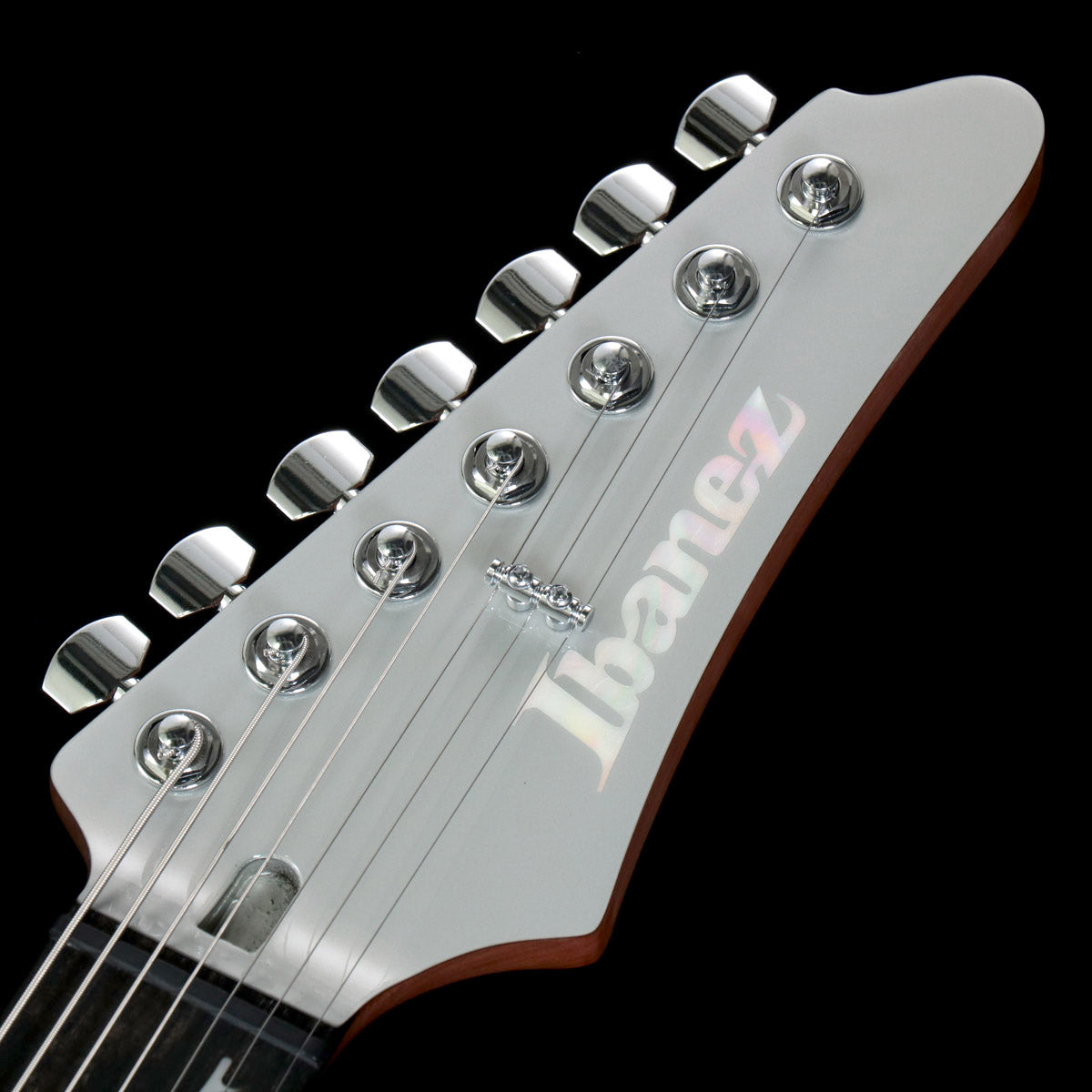

Machine head : Gotoh MG T locking machine head
Nut : Graph Tech nut

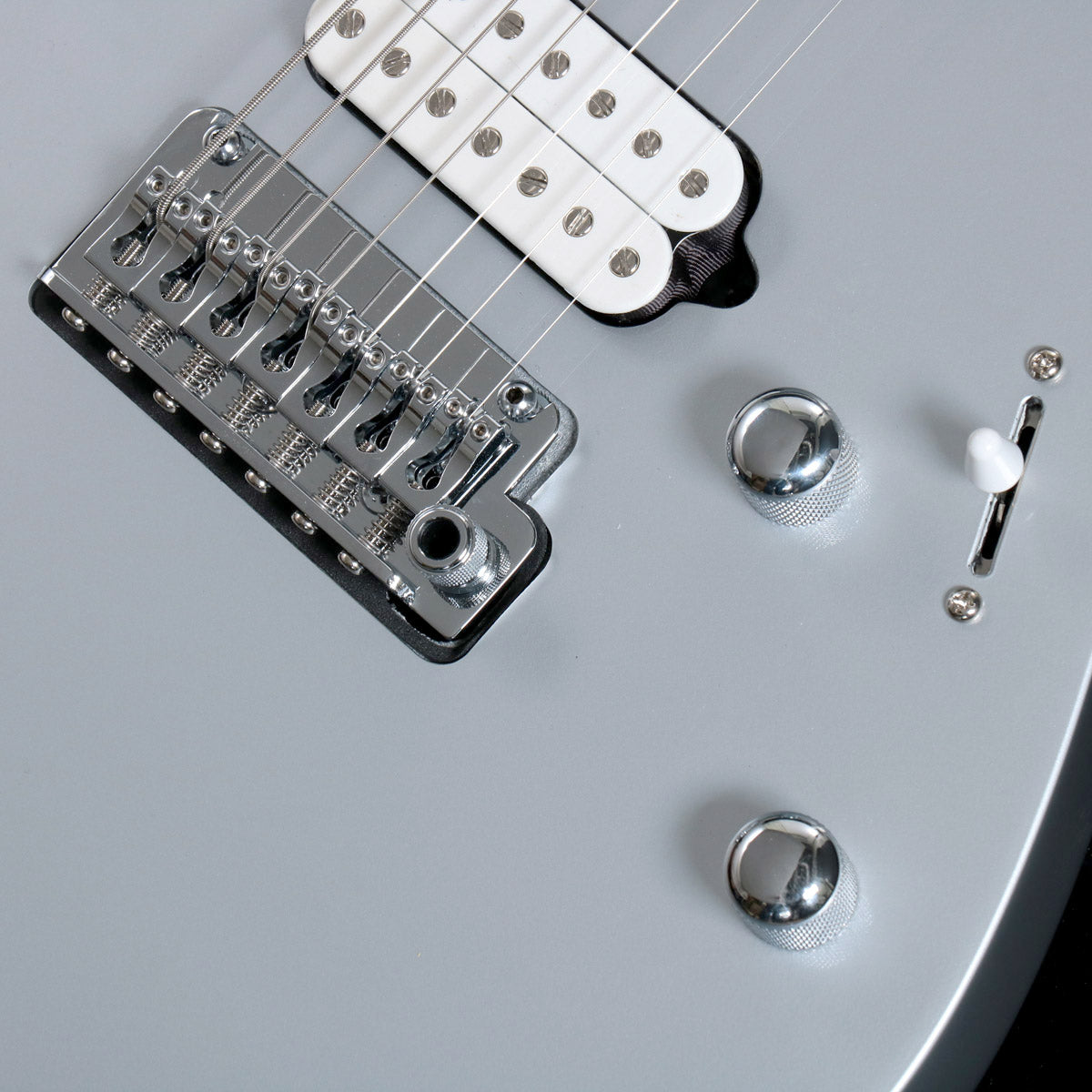

Bridge : Gotoh T1572S tremolo bridge
Neck pickup : Fishman Fluence Tim Henson Signature Series 7 (H) neck pickup
Bridge pickup : Fishman Fluence Tim Henson Signature Series 7 (H) Bridge pickup
Controls : 1 Volume, 1 Tone (Push: Voice 1,3 / Pull: Voice 2,3), 5way lever switch
Other switches : Fishman Fluence Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups
Hardware color : Chrome
Strings gauge : .010/.013/.017/.026/.036/.046/.059 (D'Addario EXL110 7)
Scale : 648mm/25.5"
a : Width at Nut : 47mm
b : Width at Last Fret : 66mm
c : Thickness at 1 : st 20.5mm
d : Thickness at 12th : 22.5mm
Radius : 305mmR
Accessories : Gig bag, tremolo arm, wrench for adjustment
Item code: 4549763359476
Weight : 3.56kg
Serial number: I240905508

Specs

Neck type
AZ7 Oval C Roasted Maple neck

Body
American Basswood body

Fretboard
Ebony fretboard w/ Tree of Death inlay & Luminescent side dot inlay

Fret
Jumbo Stainless Steel fret

Machine head
Gotoh MG T locking machine head

Nut
Graph Tech nut

Bridge
Gotoh T1572S tremolo bridge

Neck pickup
Fishman Fluence Tim Henson Signature Series 7 (H) neck pickup

Bridge pickup
Fishman Fluence Tim Henson Signature Series 7 (H) Bridge pickup

Controls
1 Volume, 1 Tone (Push: Voice 1,3 / Pull: Voice 2,3), 5way lever switch

Other switches
Fishman Fluence Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups

Hardware color
Chrome

Strings gauge
.010/.013/.017/.026/.036/.046/.059 (D'Addario EXL110 7)

Scale
648mm/25.5"

a : Width at Nut
47mm

b : Width at Last Fret
66mm

c : Thickness at 1
st 20.5mm

d : Thickness at 12th
22.5mm

Radius
305mmR
