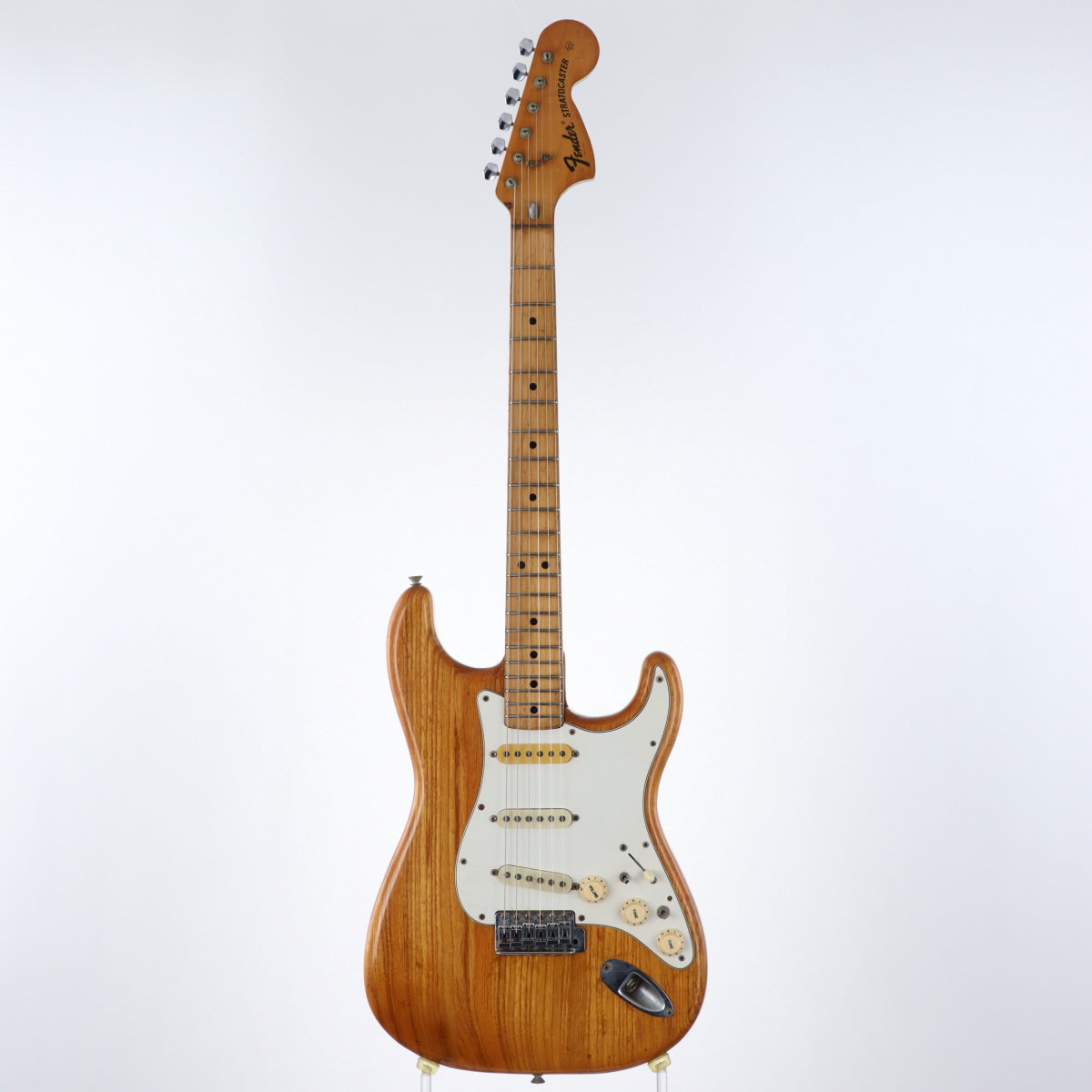

USED Fender / 1974 Stratocaster MOD Natural / Maple Fingerboard [12]

We have a 1974 Strat in stock.
There is no body/neck date, but we have determined that it was made in 1974 by the serial number, PAT.3,143,028 patent number under the head logo, and rear pickup date ('74).

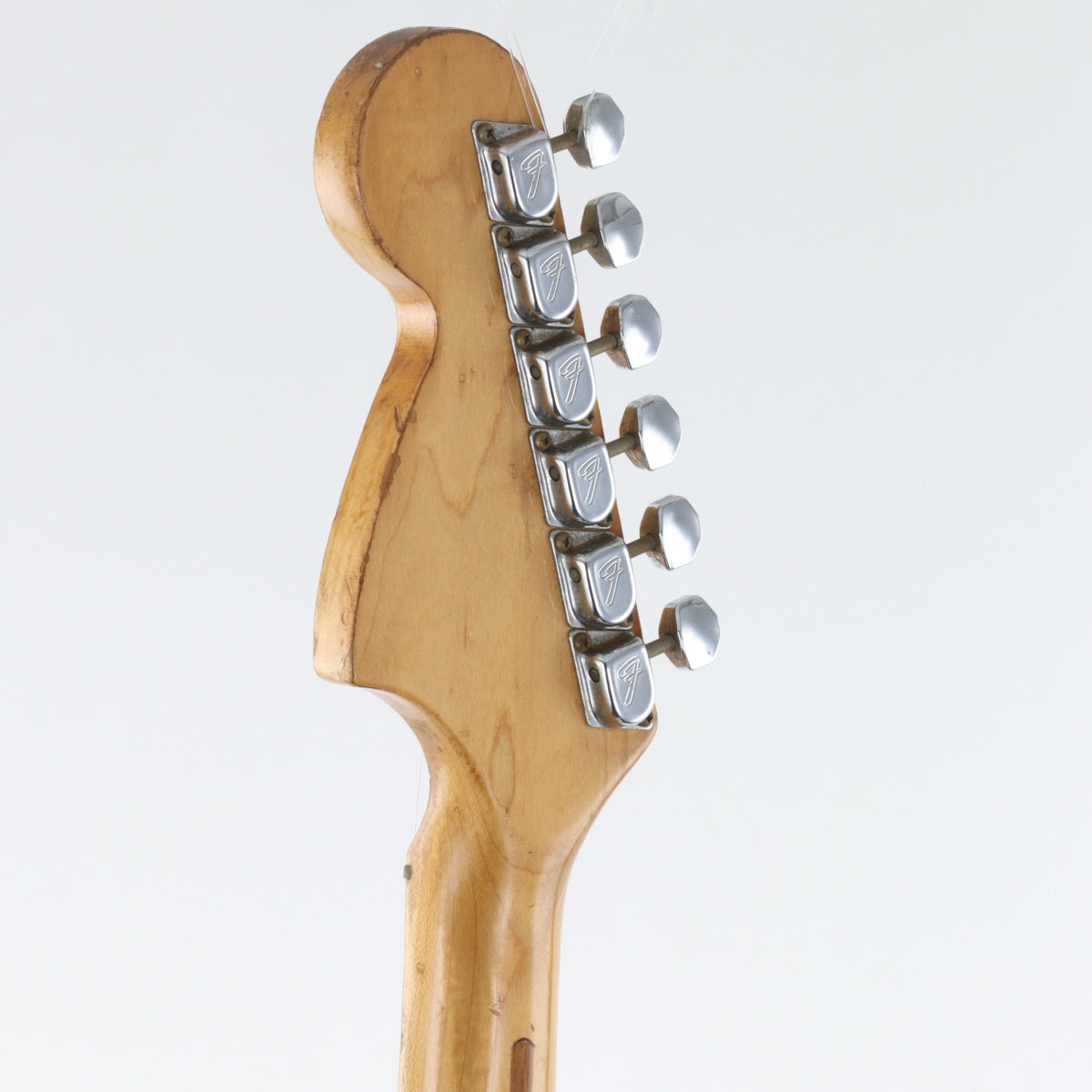

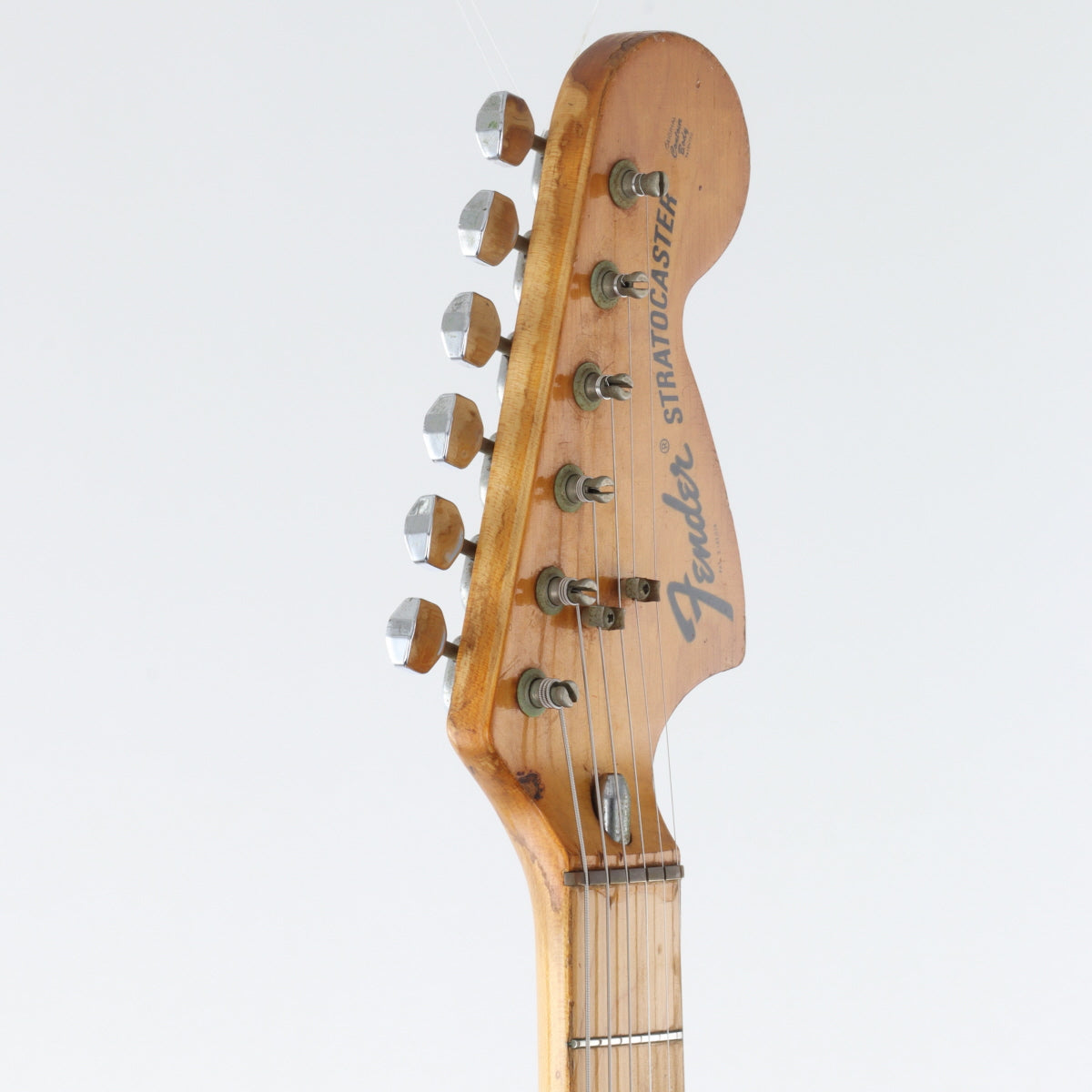

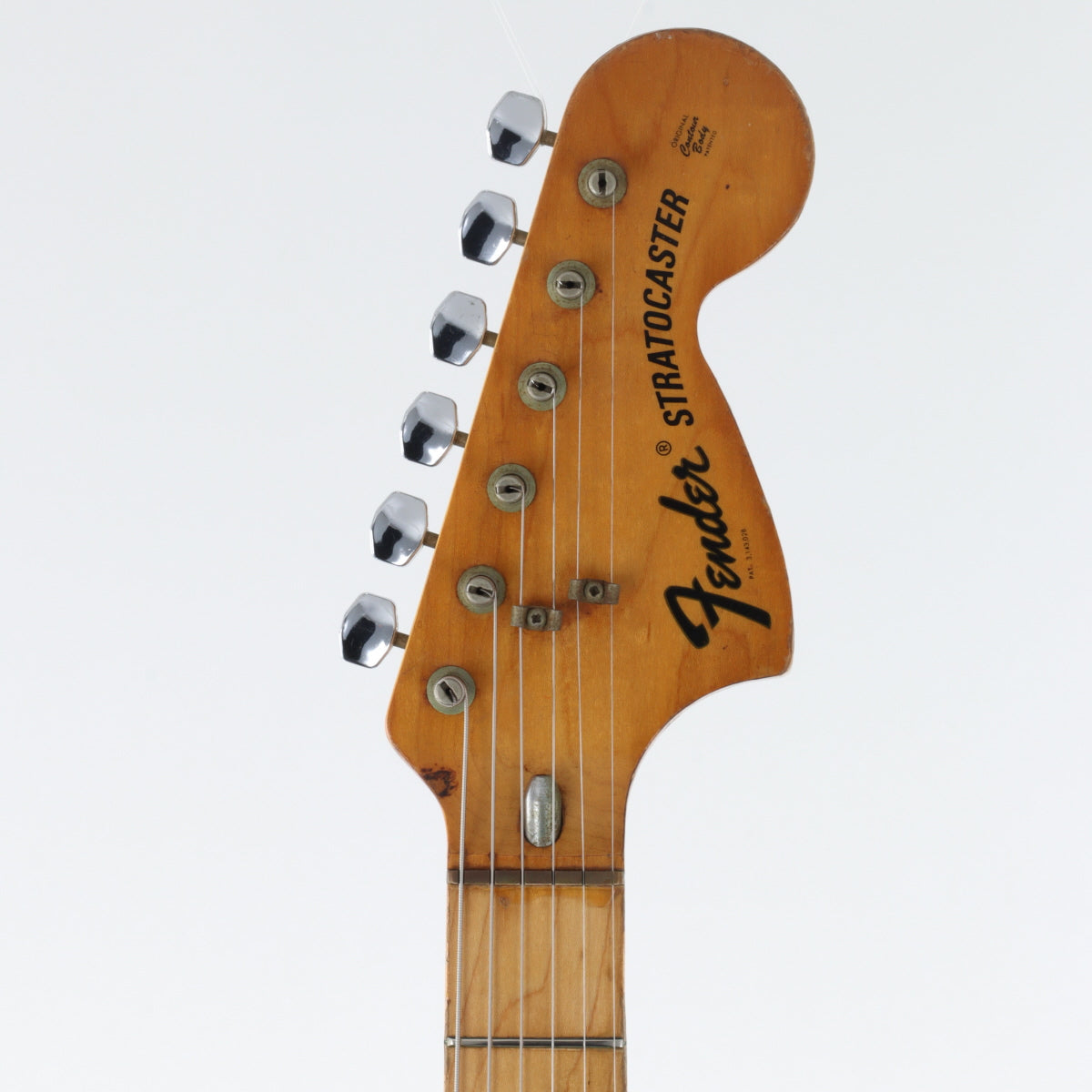

It has a large head, F-KEY pegs, two corrugated string guides, and a bullet nut.

The nut has been replaced with a brass one, and it has been refretted, but the frets are very low due to use.

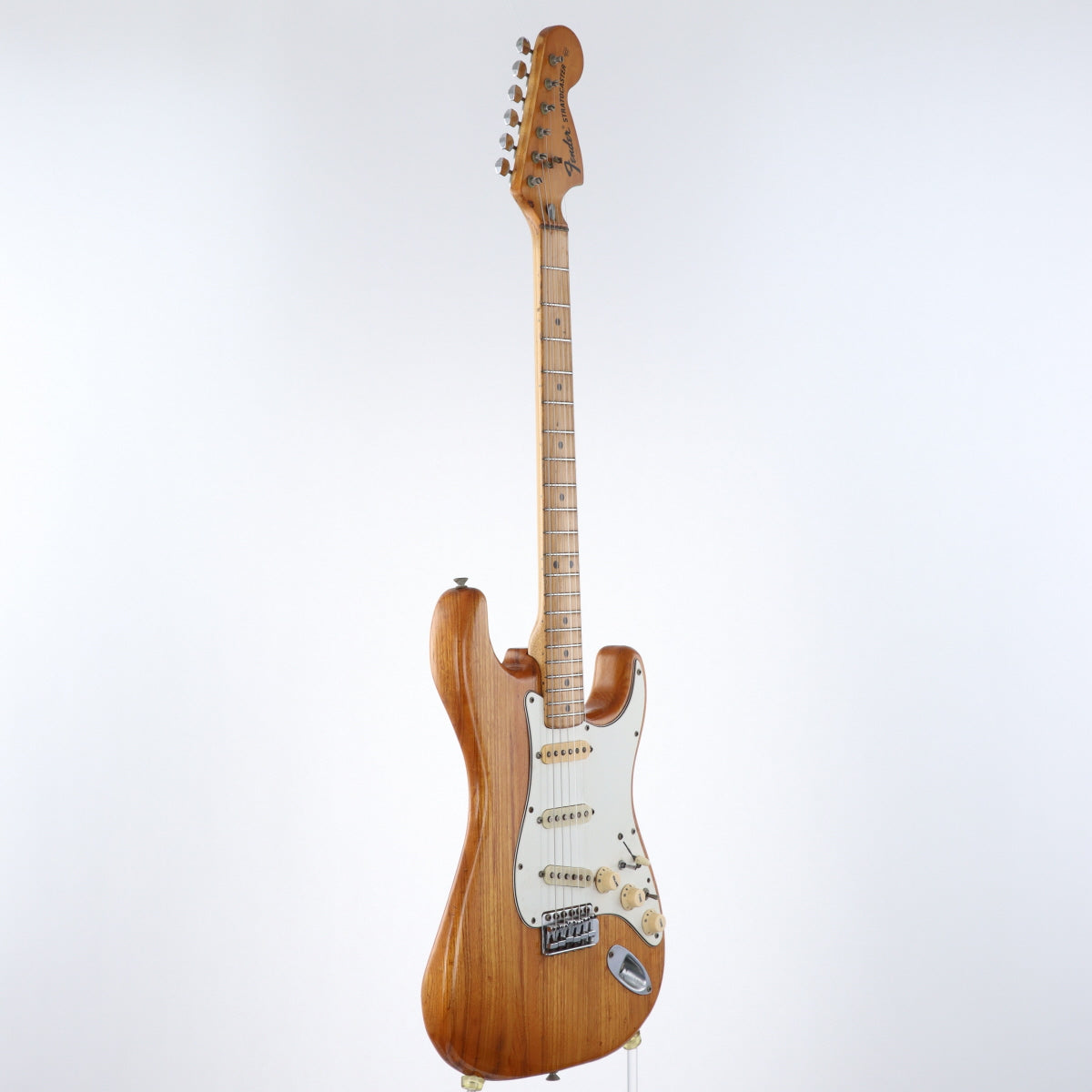

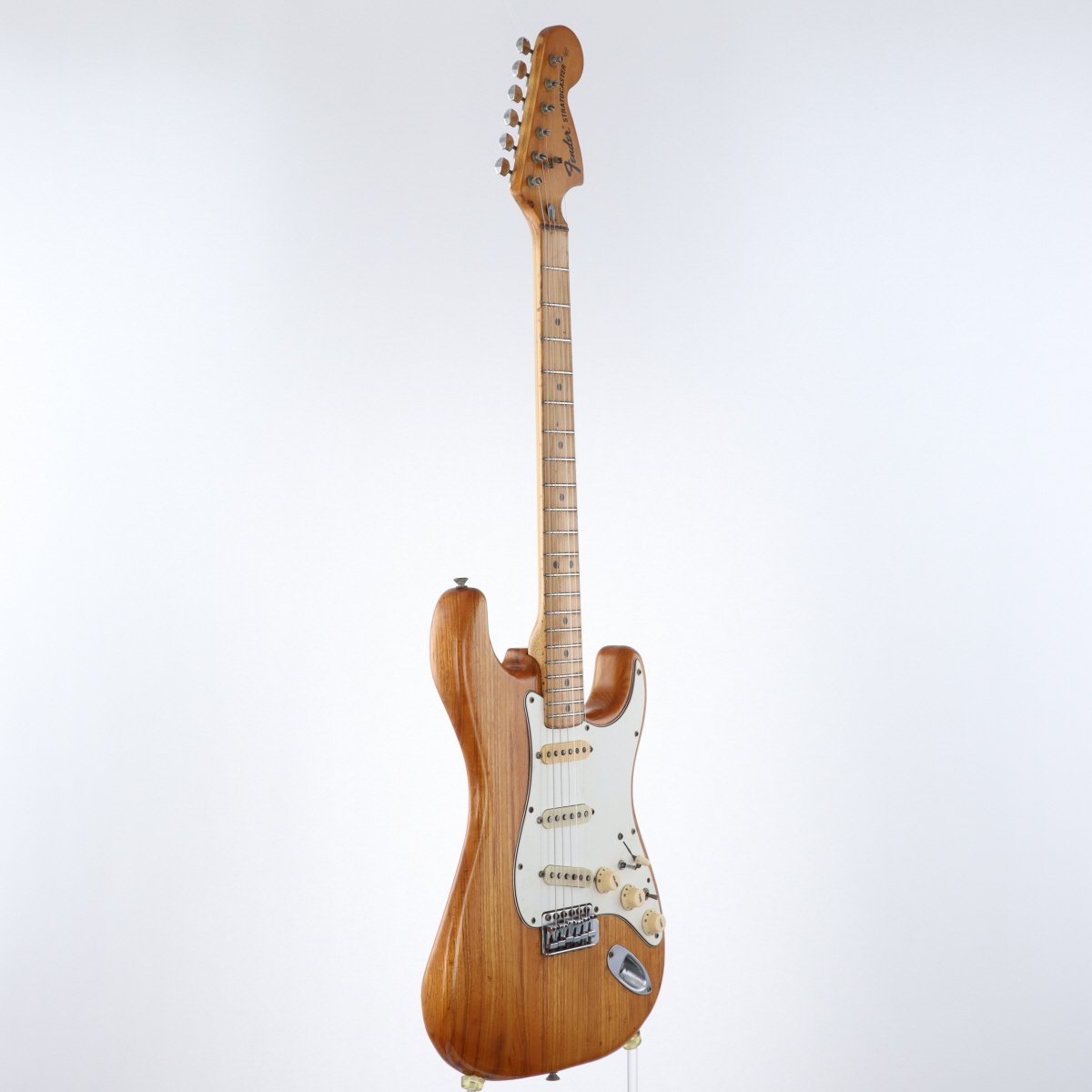

The front pickups have been replaced with black bobbin/crosswire pickups of unknown make and model, but the center (missing date) and rear pickups have the original gray bobbins.
All three pots have been replaced with domestic pots, knobs have also been replaced with domestic ones, lever switches have been replaced, and aluminum foil has been added behind the pickguard and inside the pickup cavities.
Aluminum foil has also been applied to the controls, but these are original specs.
Two mini switches have been added, but they are dummies and are currently not functioning.

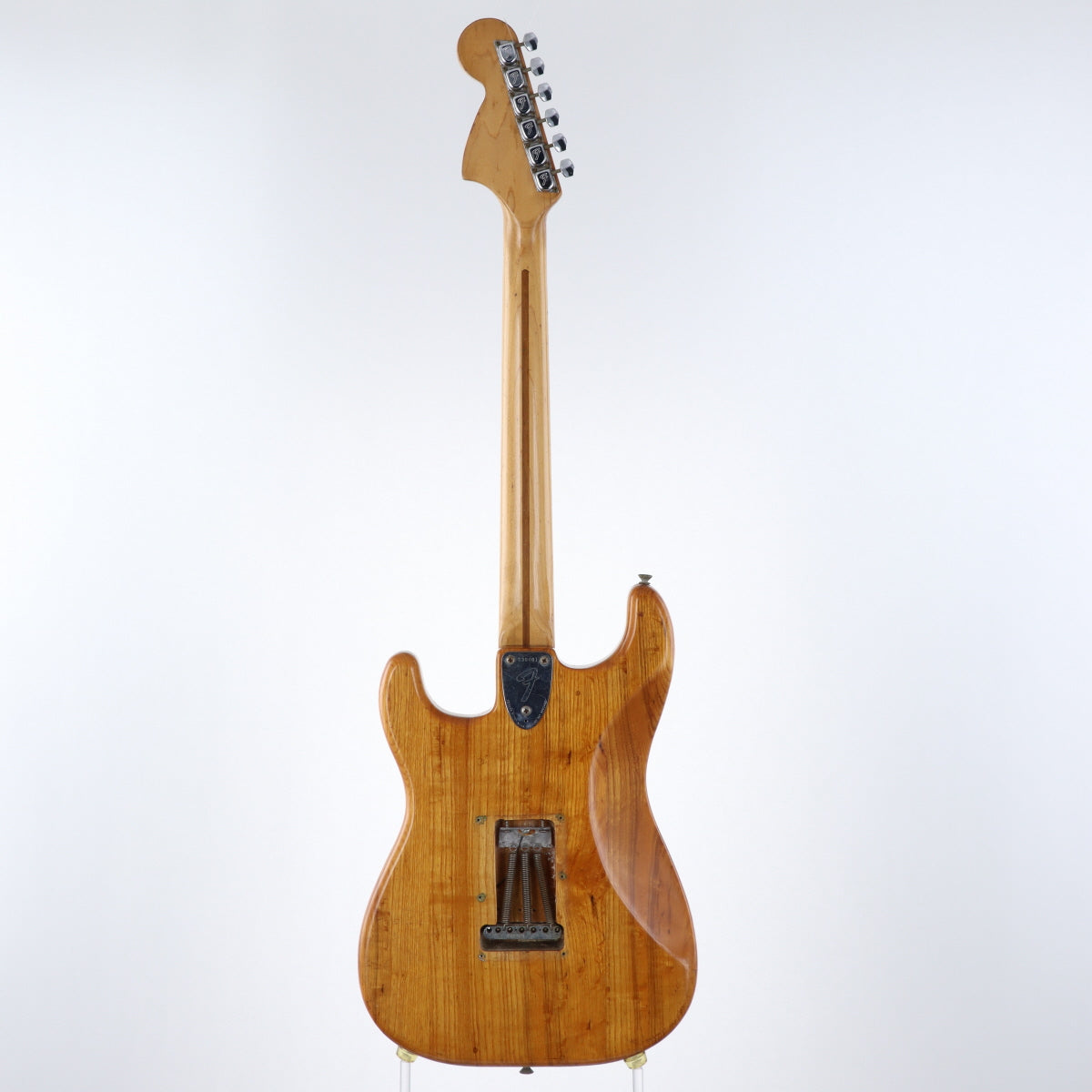

The ash body and one-piece maple neck are hard wood specs, but after being played for many years, it has a slightly fat sound with a good amount of overtones in the mid-range.
There are many scratches, dents, and paint chips scattered throughout the instrument from the head to the body, and there is a paint crack on the neck joint.
There is paint discoloration and peeling from the head side to the neck grip, which has been over-lacquered.

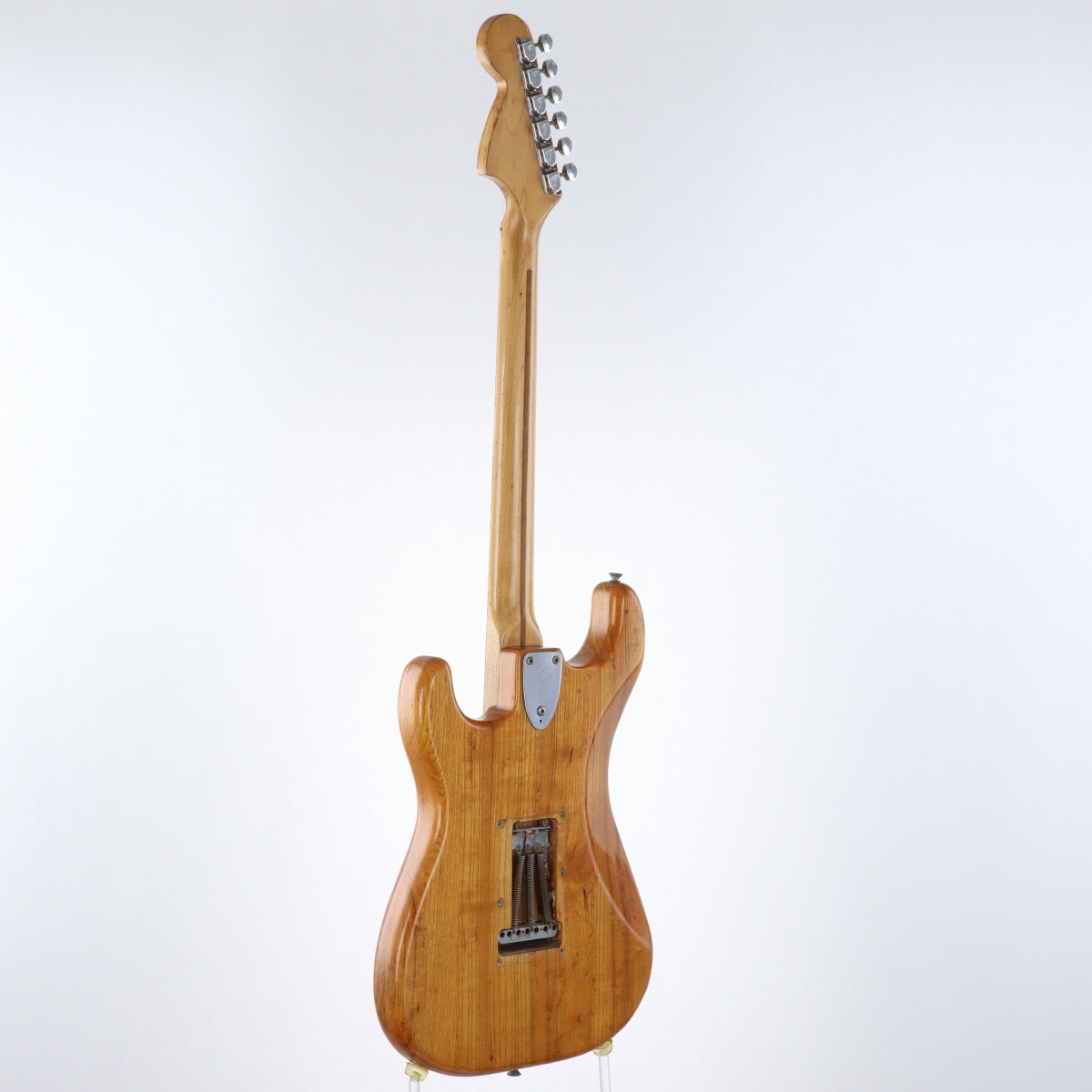

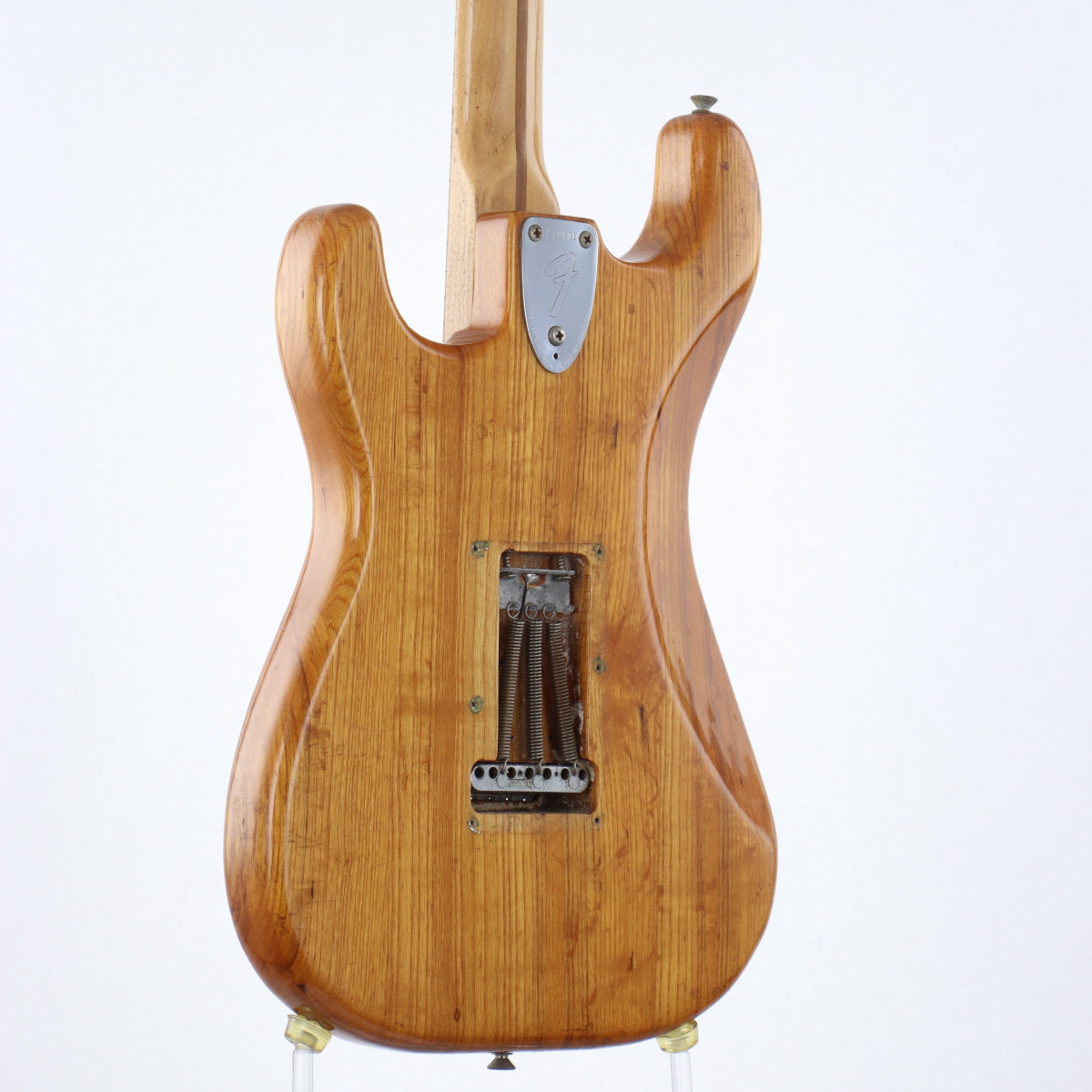

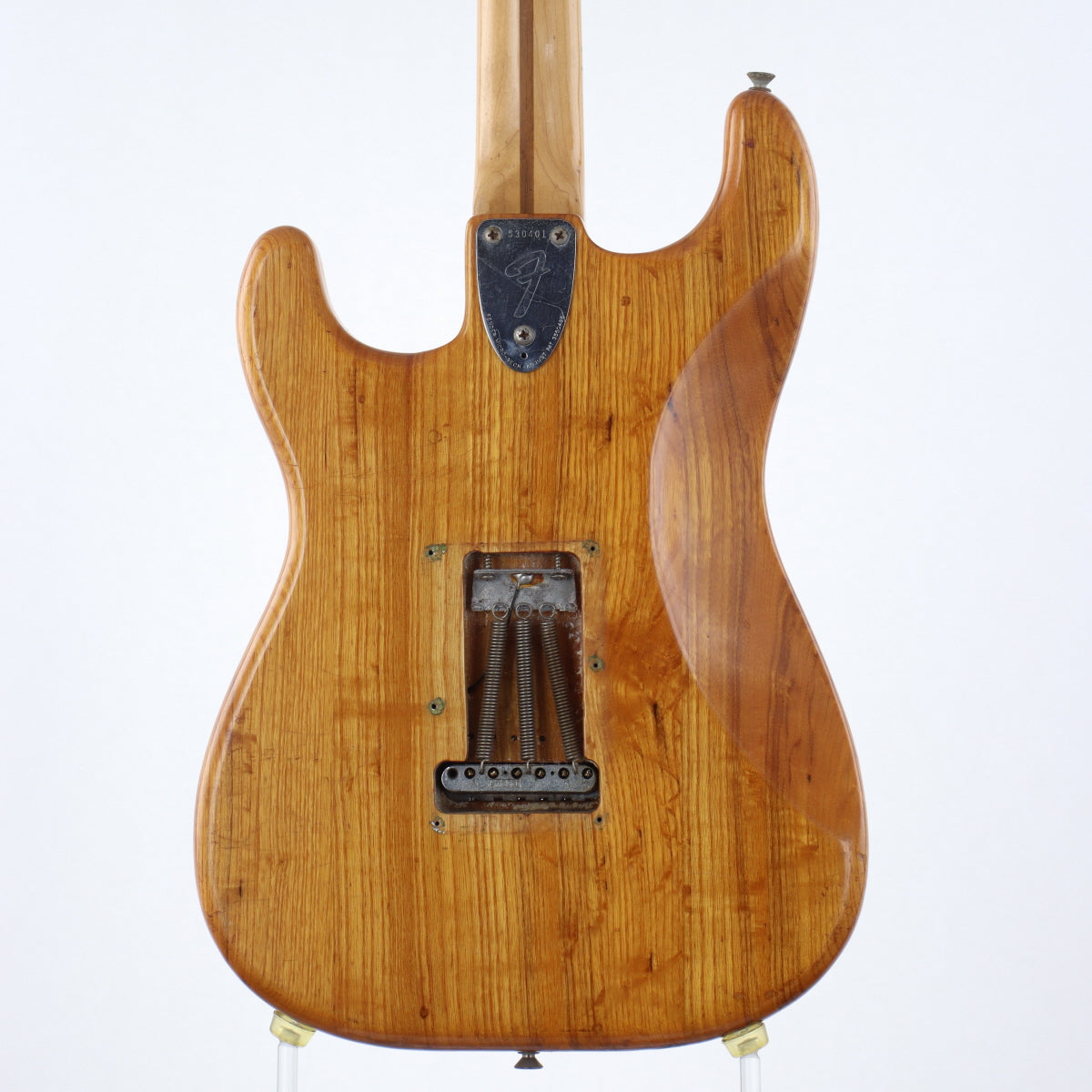

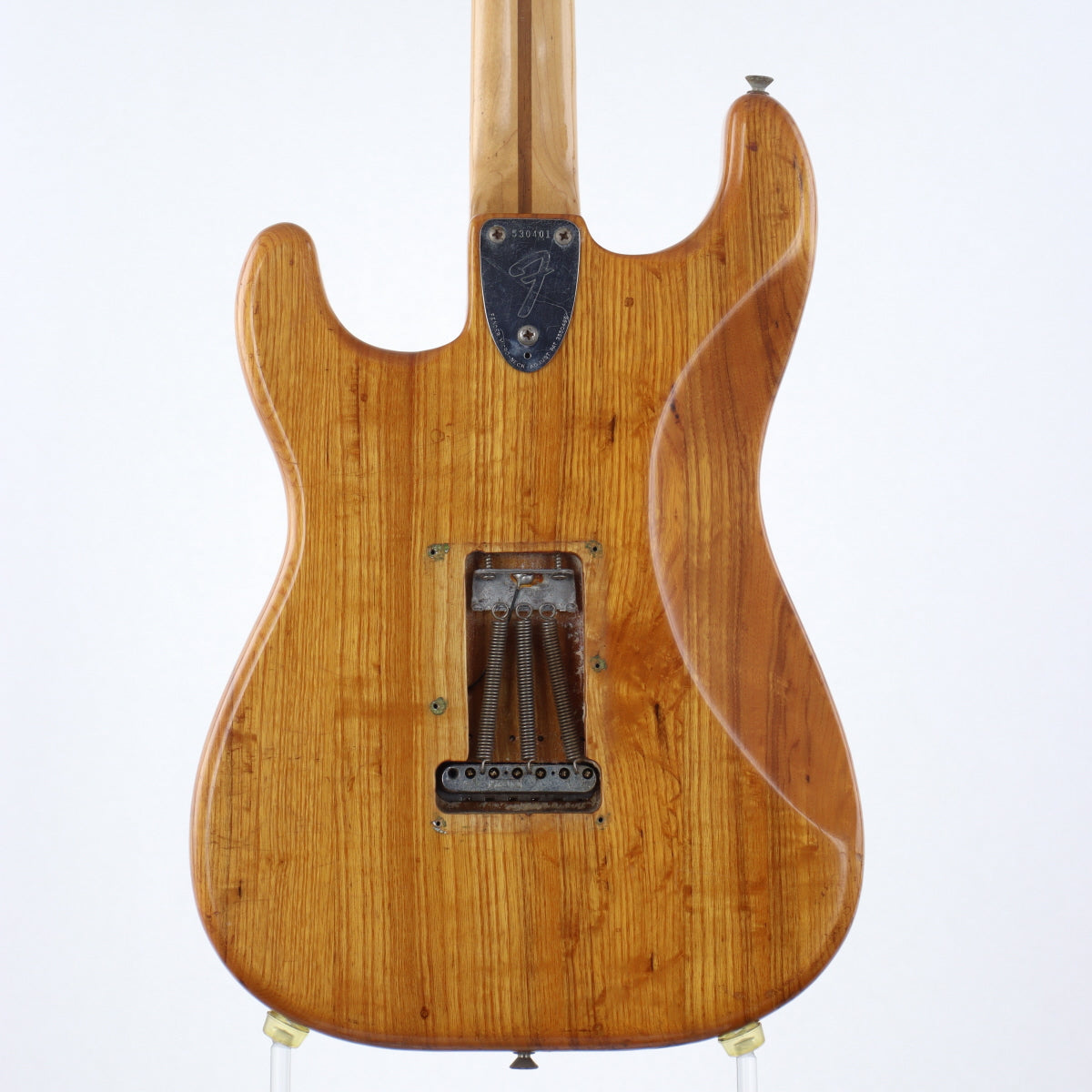

The back panel is missing, many parts have been replaced, and the frets are very low, but the guitar has been set up at our repair center in a condition that does not interfere with playing.

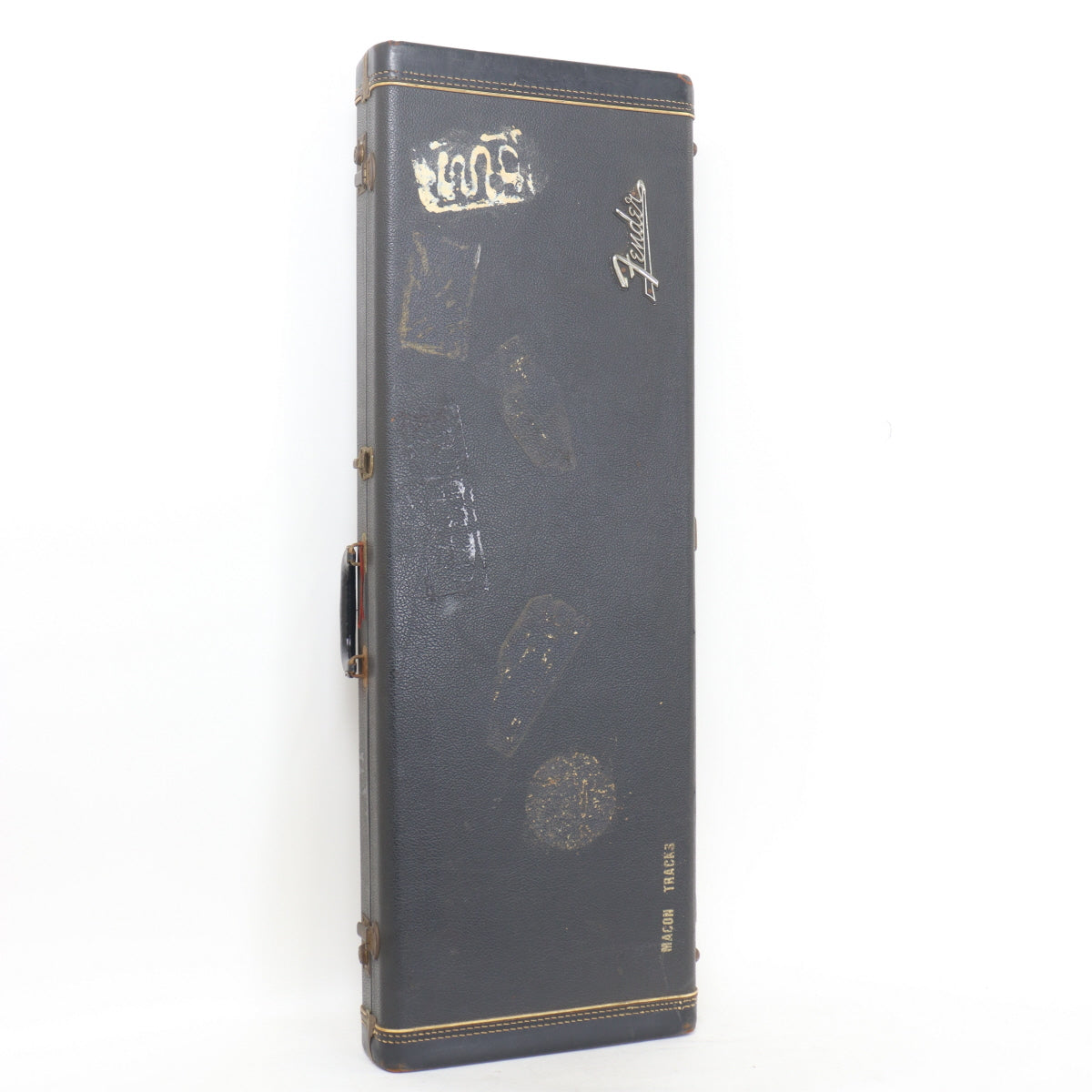

The hard case is original, but there are many sticker marks and pen writings on the exterior.
Item Rank: B: Fairly scratched and used, but no problems in normal use.

Serial number: 530401
Year of manufacture: 1974
Country of manufacture: USA
Case: Hard Case
Accessories: Arm
Weight: 3.91kg
Truss Rod: No problem, rod is fine, checked up to 60 degrees to the left and right
Fret Residue: Needs to be replaced at the next repair.
String height on bass side: 2.0mm above 12th fret
String height on treble string side: 1.5mm above 12th fret
Nut width: 40.9mm
Neck thickness near 1st fret: 21.0mm
Neck thickness near 12th fret: 23.1mm
SCALE: 648mm (25.5")
RADIUS: 184mm (7.25")
Strings in setup: ERNIE BALL 2223 / .009-.042 set
Repair and maintenance parts: Cleaning, string replacement, rod adjustment, octave adjustment, string height adjustment, matching, electrical repair

* This is a used item and may have scratches, dents, etc. that are difficult to see in the photos or that are not shown in the description. Please understand that there are scratches, dents, etc. that are difficult to see in the photos or that are not listed.

* If the truss rod, remaining frets, or string height is indicated, it was measured by our staff at the time of setup, and may change due to climate, humidity, or other environmental factors.
The values are intended to be used as a reference at the time of purchase, and we do not guarantee that they will be the same when you receive the instrument.

* This item is a one-of-a-kind item and is listed on multiple malls at the same time, including in-store displays. We try to delete product information as soon as possible, but this is not always in real time.
We apologize in advance if the item is sold out after you place your order.

Specs

Product rank
B: Fairly scratched and used, but no problem in normal use.

12 months old

Serial No.
530401

Year of manufacture
1974

Country of manufacture
U.S.A.

Case
Hard Case

Accessories
Arm

Weight
3.91kg

Truss Rod
No problem, rod is fine, checked up to 60 degrees to the left and right.

Fret remainder
Need to consider re-fretting for next repair

String Height Low String Side
2.0mm above 12th fret

String height on treble string side
1.5mm above the 12th fret

Nut width
40.9mm

Neck thickness near 1st fret
21.0mm

Neck thickness near 12th fret
23.1mm

Scale
648mm (25.5")

RADIUS
184mm (7.25")

Strings for setup
ERNIE BALL 2223 / .009-.042 set

Repair and maintenance
Cleaning, string replacement, rod adjustment, octave adjustment, string height adjustment, rubbing, electrical repair
