YAMAHA / FS9RX [FS highest model Adirondack SP/Rose S&B Eleaco specification]

<Main Features
Concert-style body with good sound separation, ideal for fingerpicking
Traditional Yamaha scale "634mm" specification
Atmosfeel(TM) pickup system for natural acoustic sound
Adirondack spruce faceplate and specially developed scalloped X-bracing for a powerful yet subtle sound

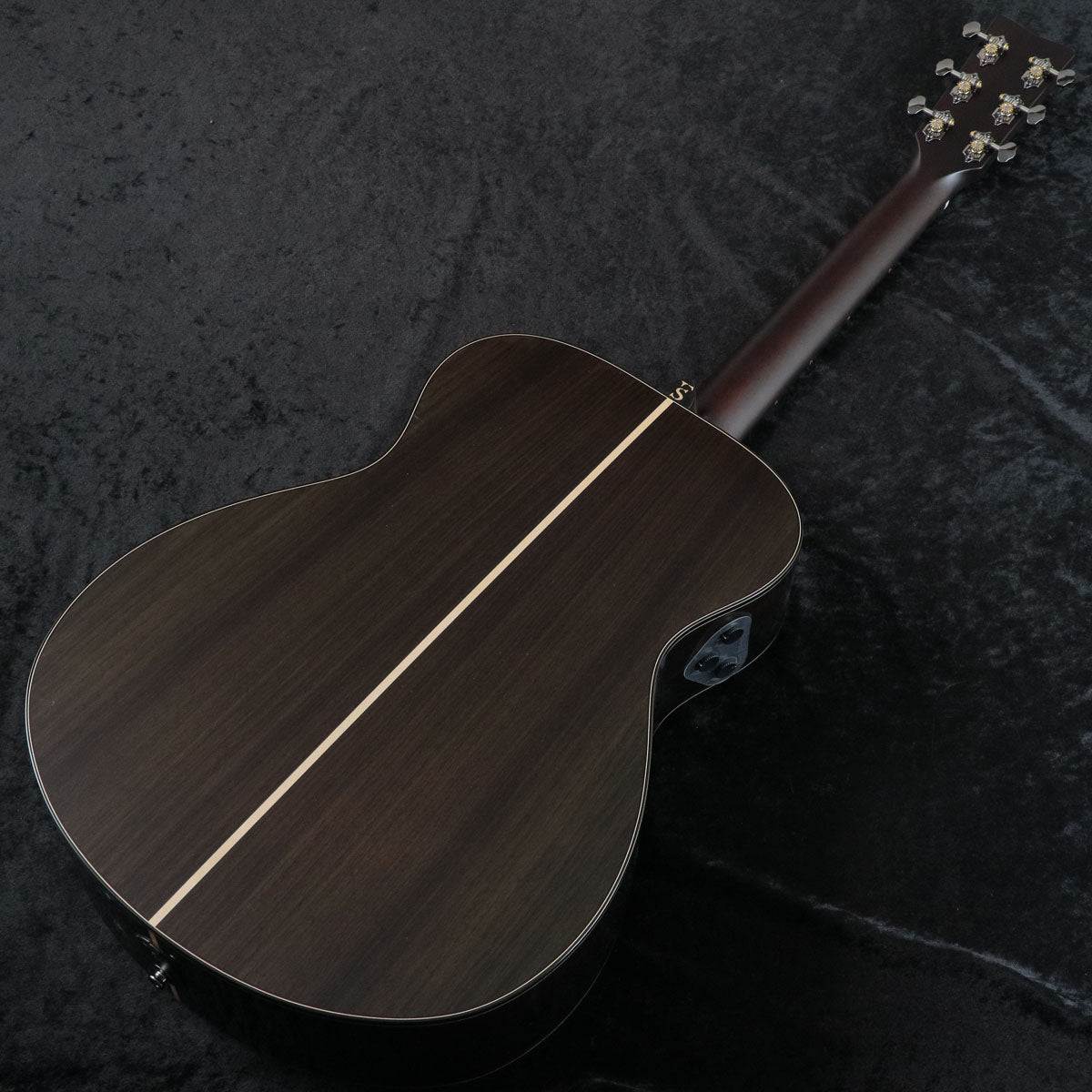

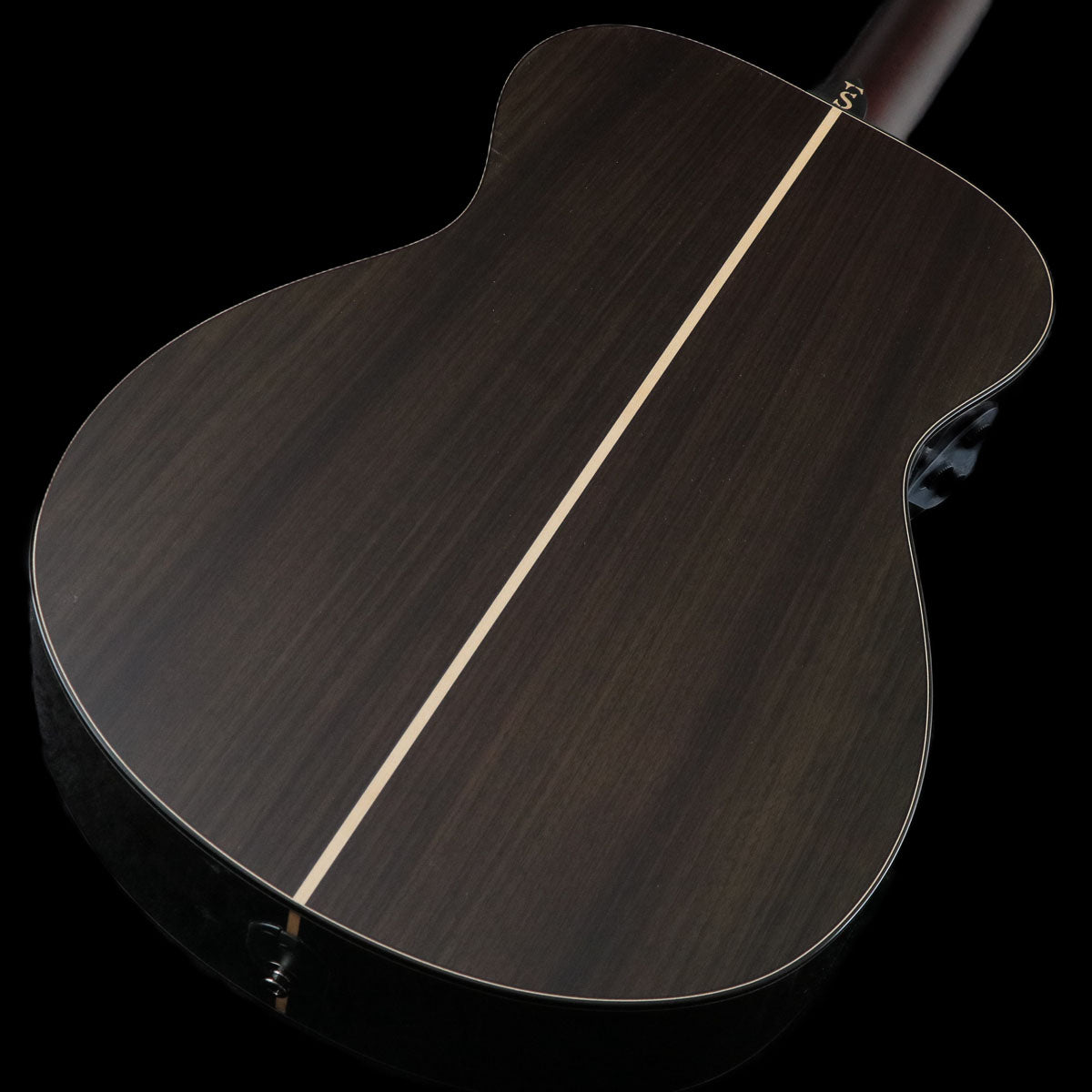

Indian rosewood side and backboards provide rich bass and overtones.

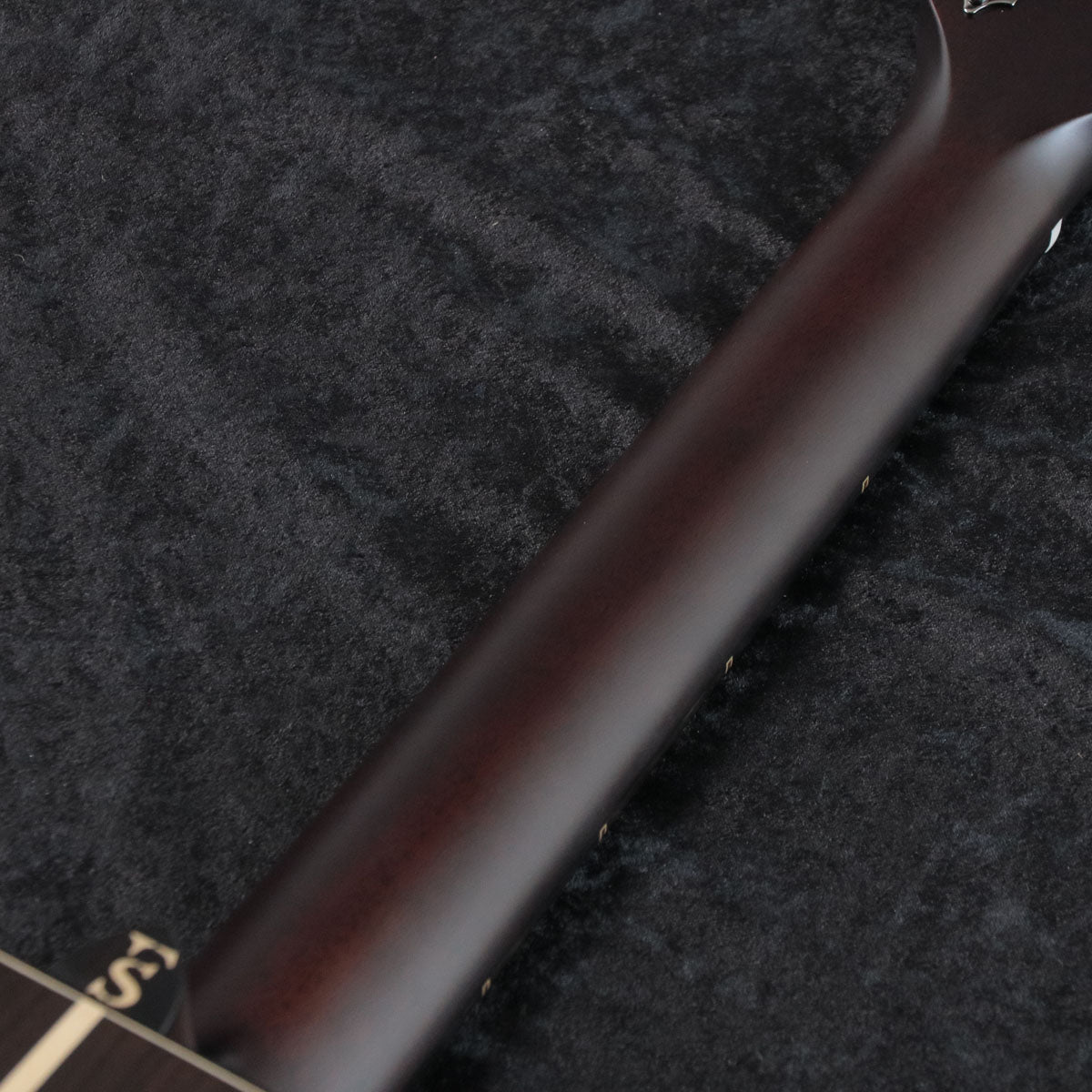

Slightly rounded V-shaped mahogany neck for a comfortable grip and smooth playing.
Bolt-on neck joint for increased volume and power and easy maintenance
Cow bone nut and saddle provide the ideal balance of clear sound and sustain.
Unique design incorporates an elegant yet understated Japanese aesthetic
Lacquered finish brings out the resonance of the wood and deepens the sound as the instrument is played.
Hard case included

Powerful reach and clarity
The FG9 and FS9 have outstanding tonal reach, excellent clarity, and subtle expressiveness, characteristics that make them very well suited for vocal accompaniment.

Adirondack Spruce and Tapered Edge Finish
One of the unique features of the FG9 and FS9 is their tapered-edge adirondack spruce faceplates. This provides structural strength and at the same time allows the body to vibrate more effectively, contributing to both power and delicacy.

Bolt-on Neck Joint
The neck features a new structural design that combines bolted-on and glued sections to increase body vibration and ease maintenance. The joint between the neck and body is finished and adjusted with high precision.

Elegant and understated Japanese aesthetics

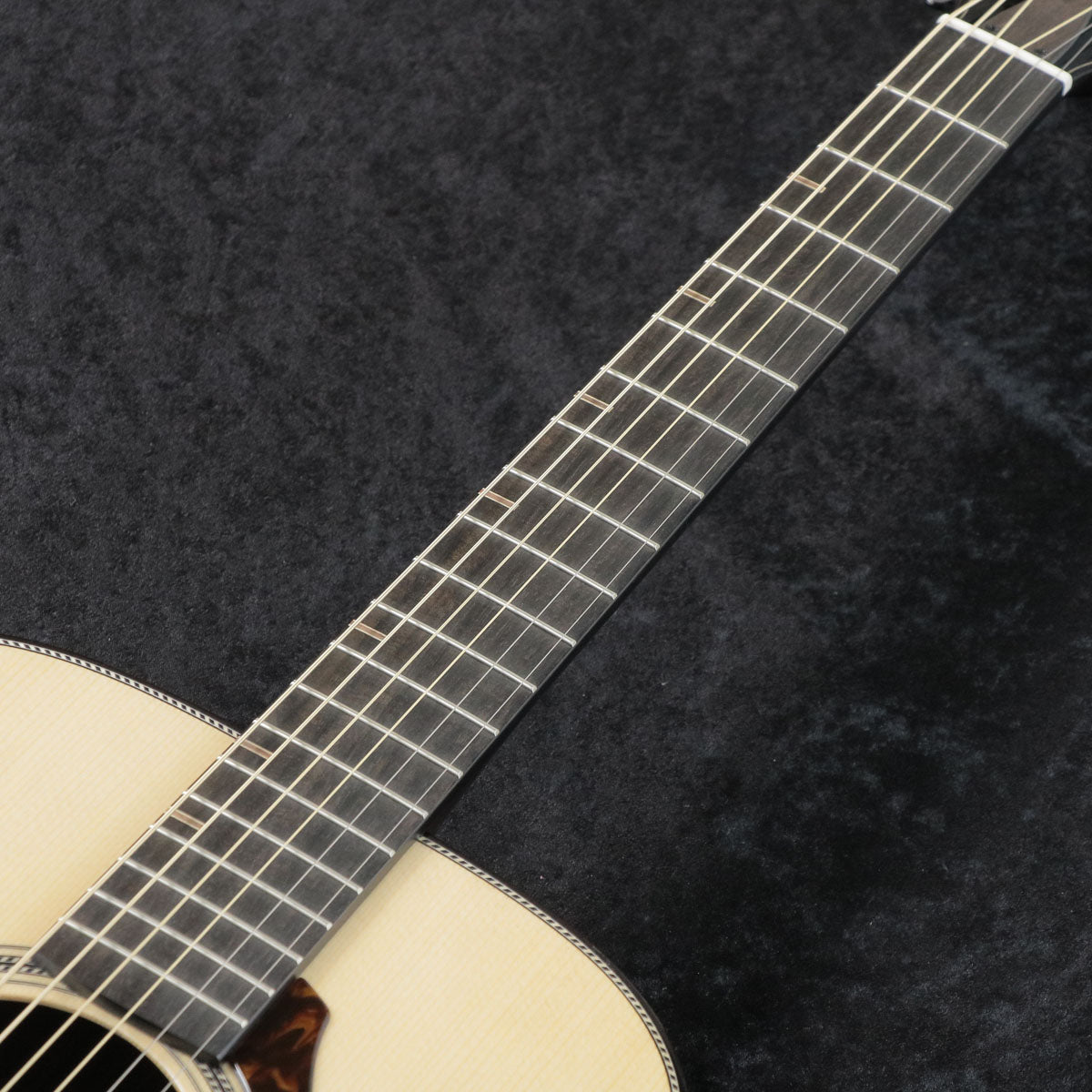

The distinctive position markings on the fingerboard are similar to Japanese Kumiki work, and the rope inlays and purfling design around the soundhole are based on Japanese culture.

Atmosfeel(TM) pickup system
The Atmosfeel 3-way pickup system reproduces the sound components of a guitar with natural nuances that cannot be picked up by conventional pickups. The piezo sensor on the undersaddle pickup picks up the vibration of the strings, the condenser microphone mounted inside the body picks up the airy feeling inside the body of the guitar, and the contact sensor pickup made of thin and durable piezoelectric synthetic paper attached to the back of the front panel picks up the high frequencies derived from the vibration of the front panel. By combining these three sounds, the natural acoustic sound of the guitar is reproduced in its entirety.

<Main Specifications
Style|concert style
String length|634mm
Overall length|1022mm
Body width/thickness|380mm(max. width)/90-115mm
Front Board|Solid Adirondack Spruce
Back/Sideboard|Solid Indian rosewood
Neck|Mahogany 1 piece
Fingerboard material/Radius|Ebony/ R400mm(15 3/4")
Bridge|Ebony
Nut/Saddle
Nut width|44mm

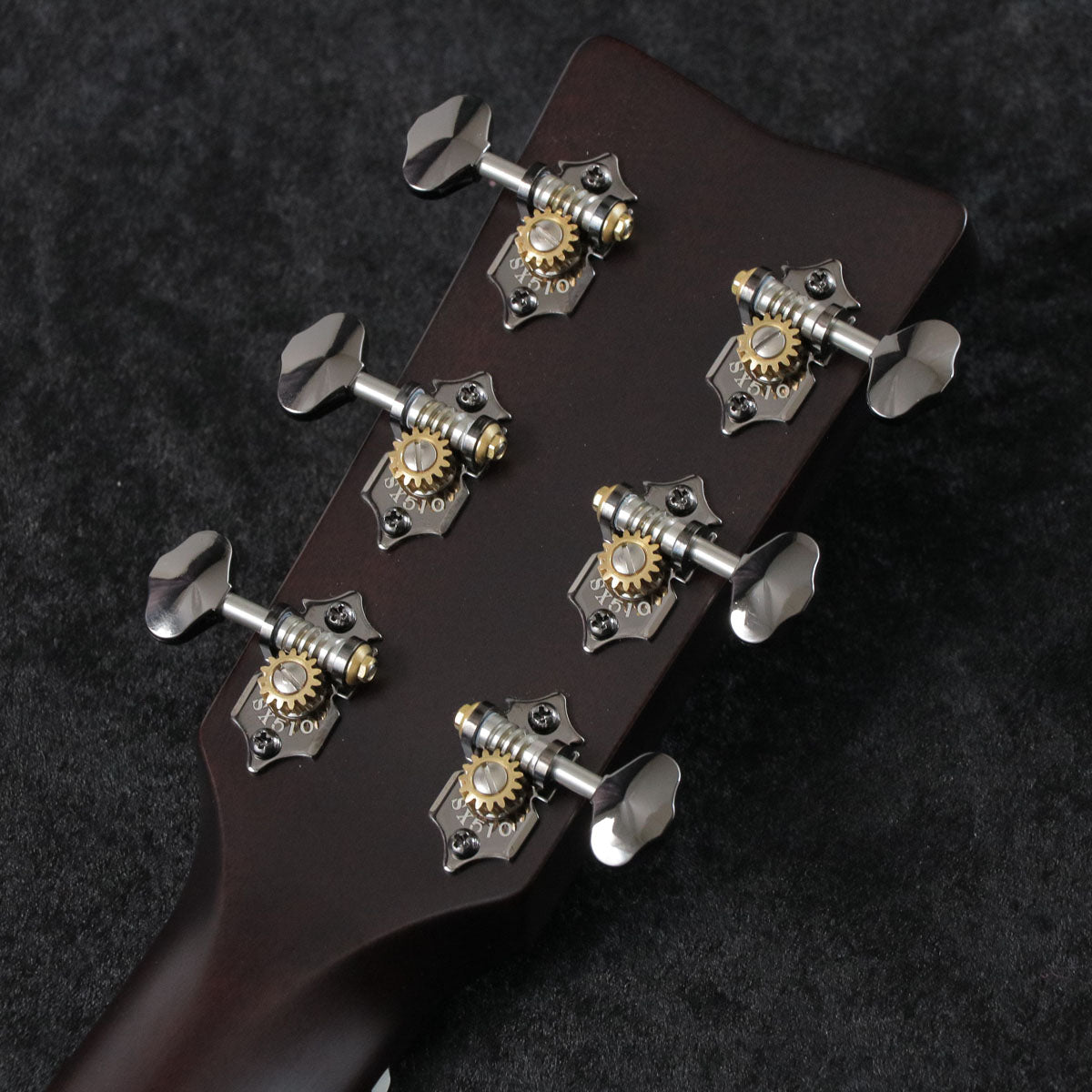

Tuners: Gotoh SXN510 Cosmo Black
Body Binding: Ebony + Wooden Rope Pattern Purfling
Soundhole Inlay: Wooden Rope Pattern
Pickguard: Tortoiseshell pattern
Body Paint: Gloss Finish (Nitrocellulose Lacquer)
Neck Paint: Semi-gloss finish (Polyurethane)
Pickup System|YAMAHA Atmosfeel (SYSTEM74)
Controls|Master Volume, Mic Blend, Bass EQ
Accessories|Hard Case, Allen Wrench, Certificate, Soundhole Cover
Serial number:IKZ005A

specs

Style
Concert Style

String length
634mm

Total length
1022mm

Body width/thickness
380mm(max. width)/ 90-115mm

Face Plate(s)
Solid Adirondack Spruce

Back/Sideboard
Solid Indian rosewood

Neck
Mahogany 1 piece

Fingerboard Material/Radius
Ebony / R400mm(15 3/4")

Bridge
Ebony

Nut/Saddle
Cattle bone

Nut width
44mm

Tuner
Gotoh SXN510 Cosmo Black

Body Binding
Ebony + Wooden Rope Pattern Purfling

Soundhole Inlay
Wooden Rope Pattern

Pick Guard
Tortoiseshell pattern

Body Paint
Gloss finish (nitrocellulose lacquer)

Neck Finish
Semi-gloss finish (Polyurethane)

Pickup System
YAMAHA Atmosfeel (SYSTEM74)

Controls
Master Volume, Mic Blend, Bass EQ

Accessories
Hard Case, Allen Wrench, Certificate, Sound Hole Cover
