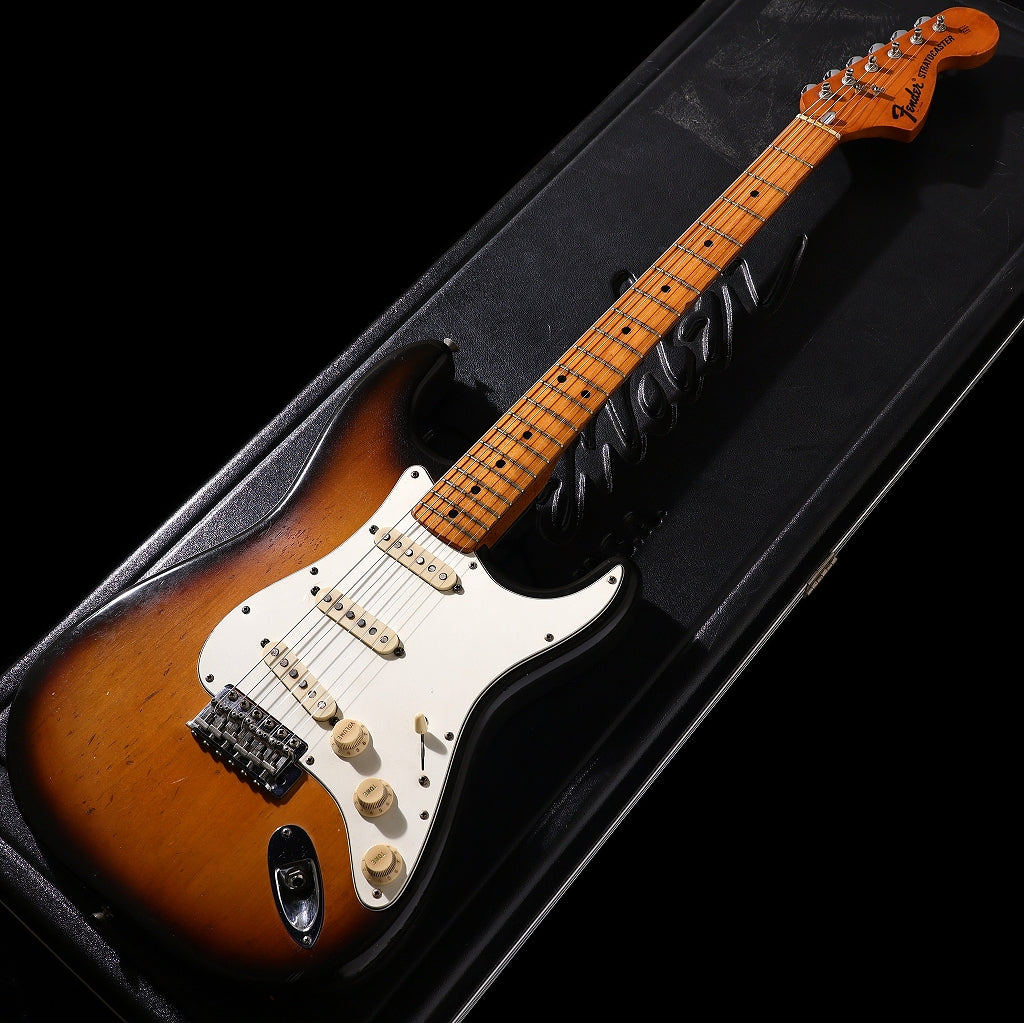

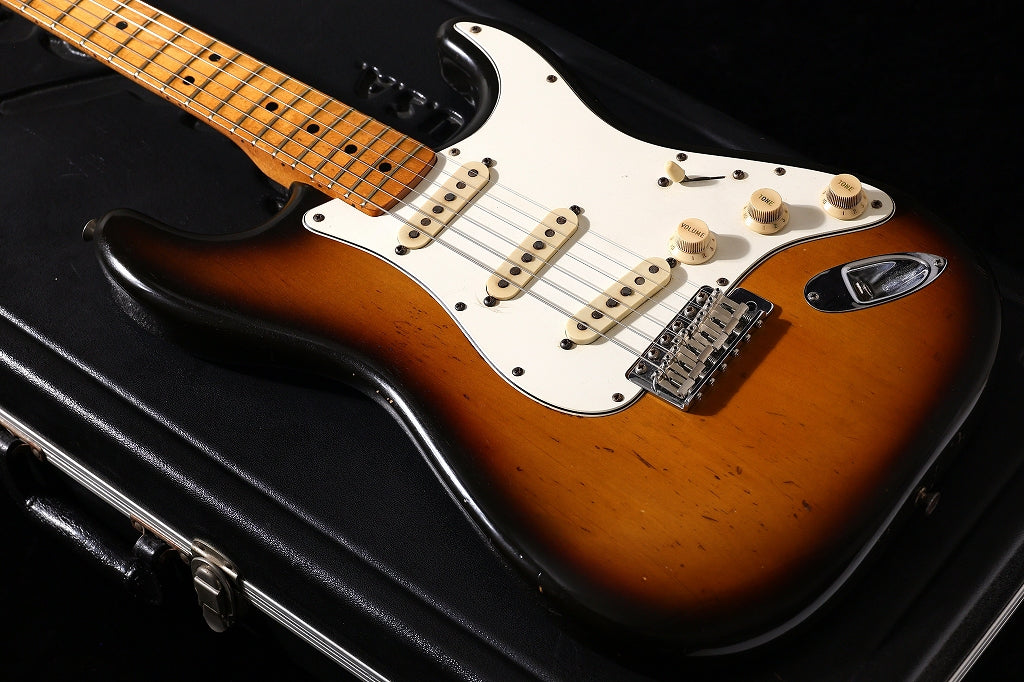

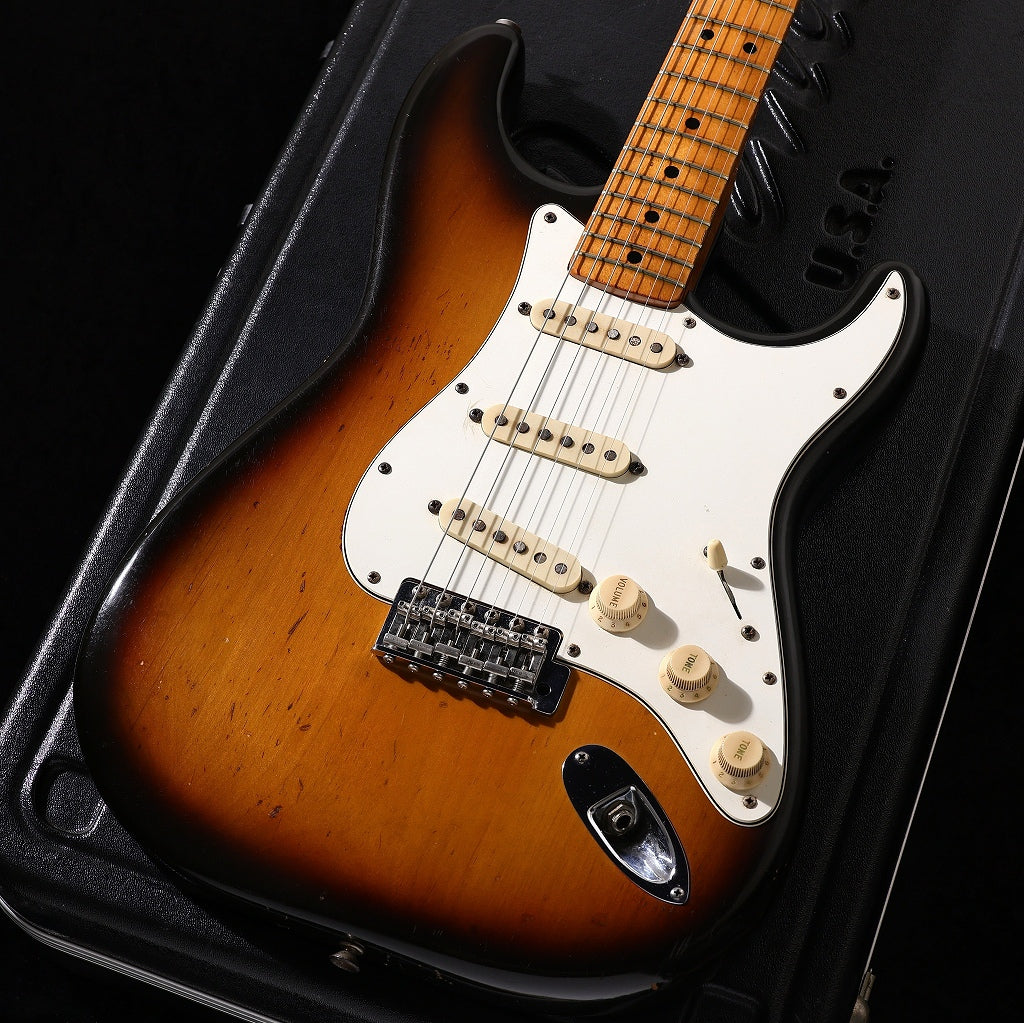

USED FENDER USA / 1974 Stratocaster Sunburst [03]

The Stratocaster, which has been in production since 1954, has been beloved by many players for many years.

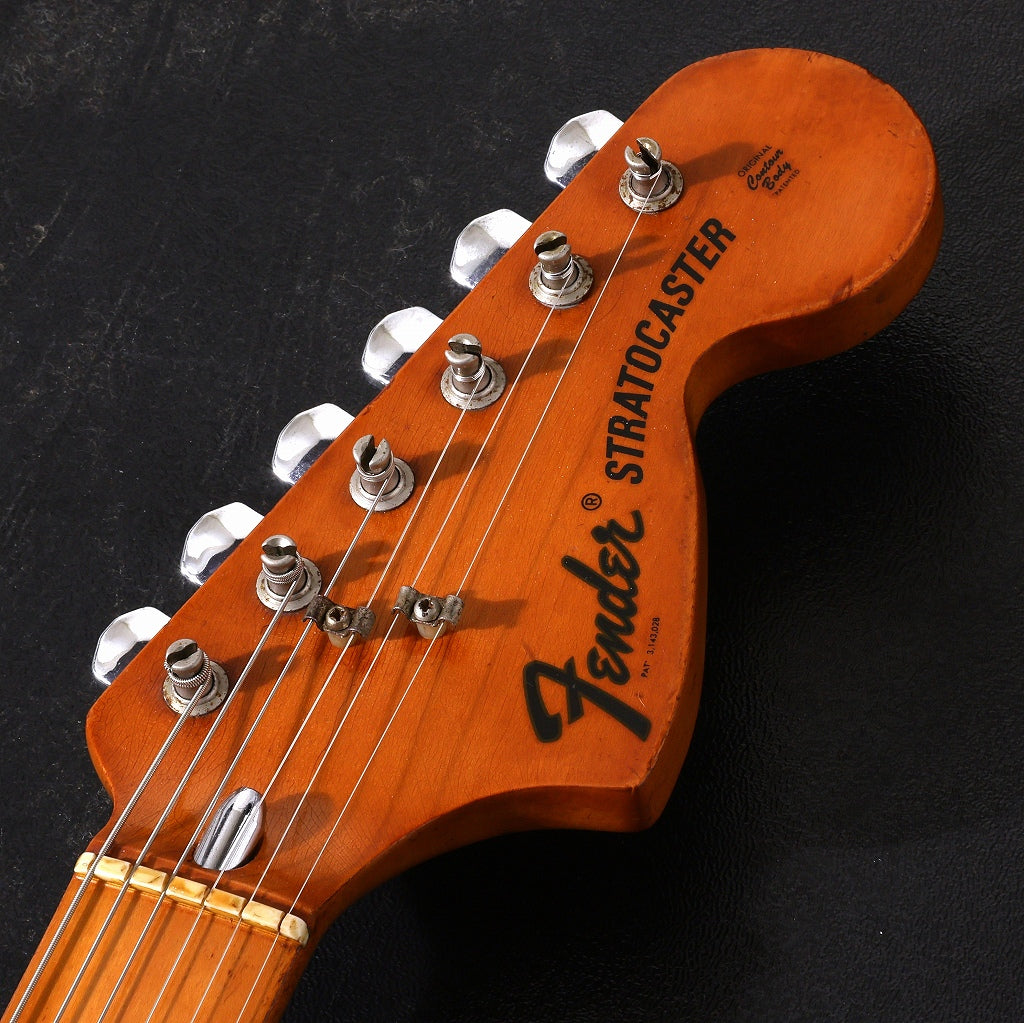

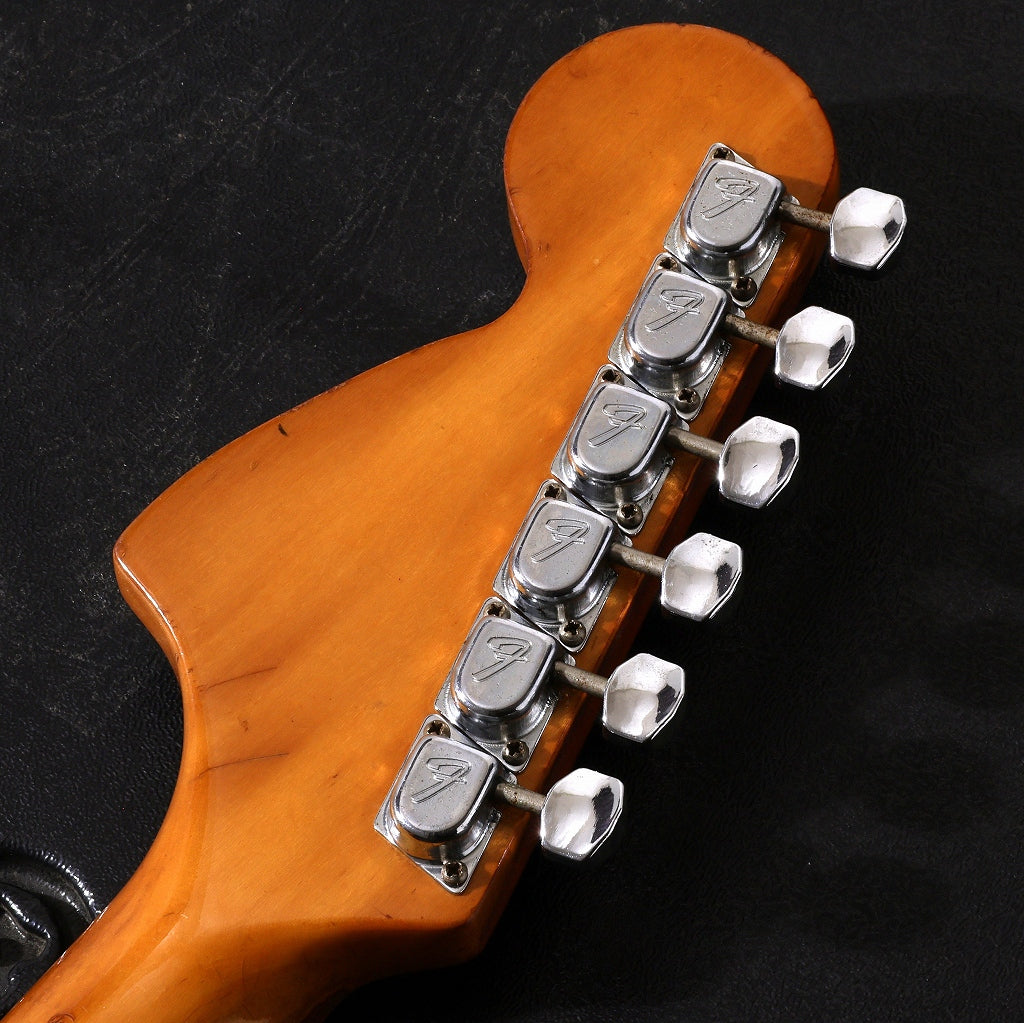

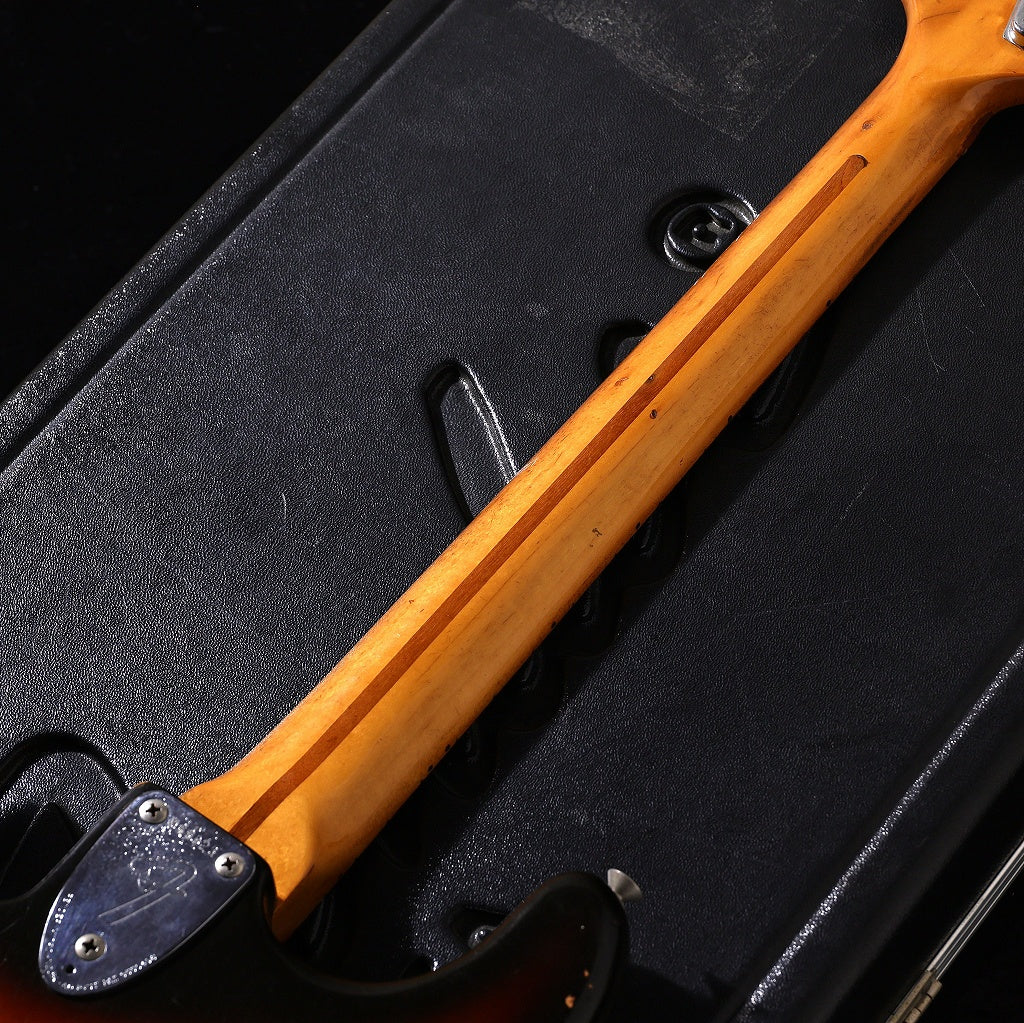

The model we’ve just received is a 1974 Stratocaster featuring specifications different from those of the ’50s and ’60s, such as a large headstock, a bullet nut that allows for truss rod adjustment from the headstock, and a three-point neck joint.

The body is made of alder, and the top features a faded reddish hue, giving it a dignified, vintage-style appearance.
Weighing in at 3.43 kg, this is a lightweight, well-balanced instrument.

The neck date is 09033433, indicating it was manufactured in 1973.

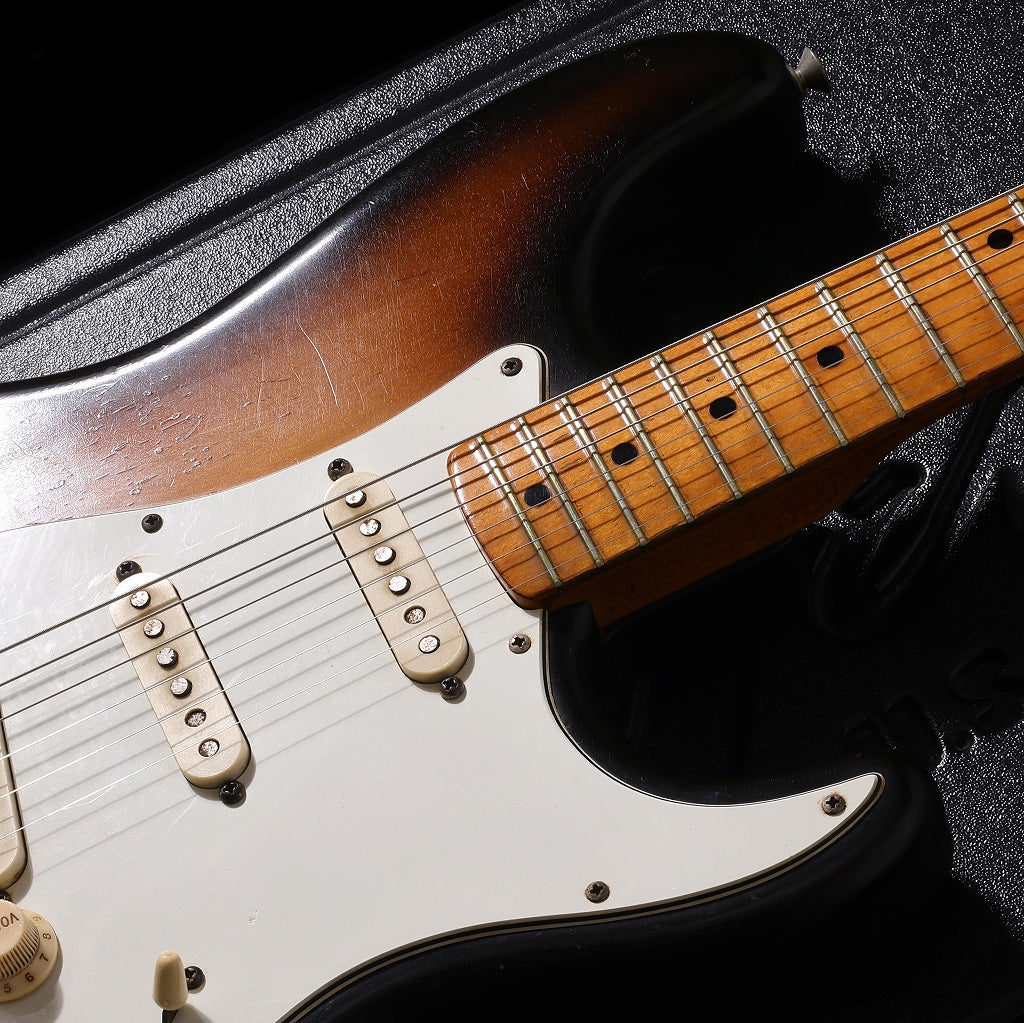

It is equipped with three gray-bobbin pickups featuring staggered pole pieces.

The dates are “x3xx74” for the front, “183074” for the middle, and “183074” for the bridge—all original 1974 parts.

It pairs well with driven tones, producing a trebly, cutting rock sound.
It’s also a perfect match for clean-tone cutting.

The pots are Vol 1377430, Tone 1 1377430, and Tone 2 1377430—all original 1974 models.
There are signs that some of the solder on the pot section has been reworked, a ground connection has been added, and the upper strap pin hole has been re-drilled.
The selector switch is the original 3-way model.

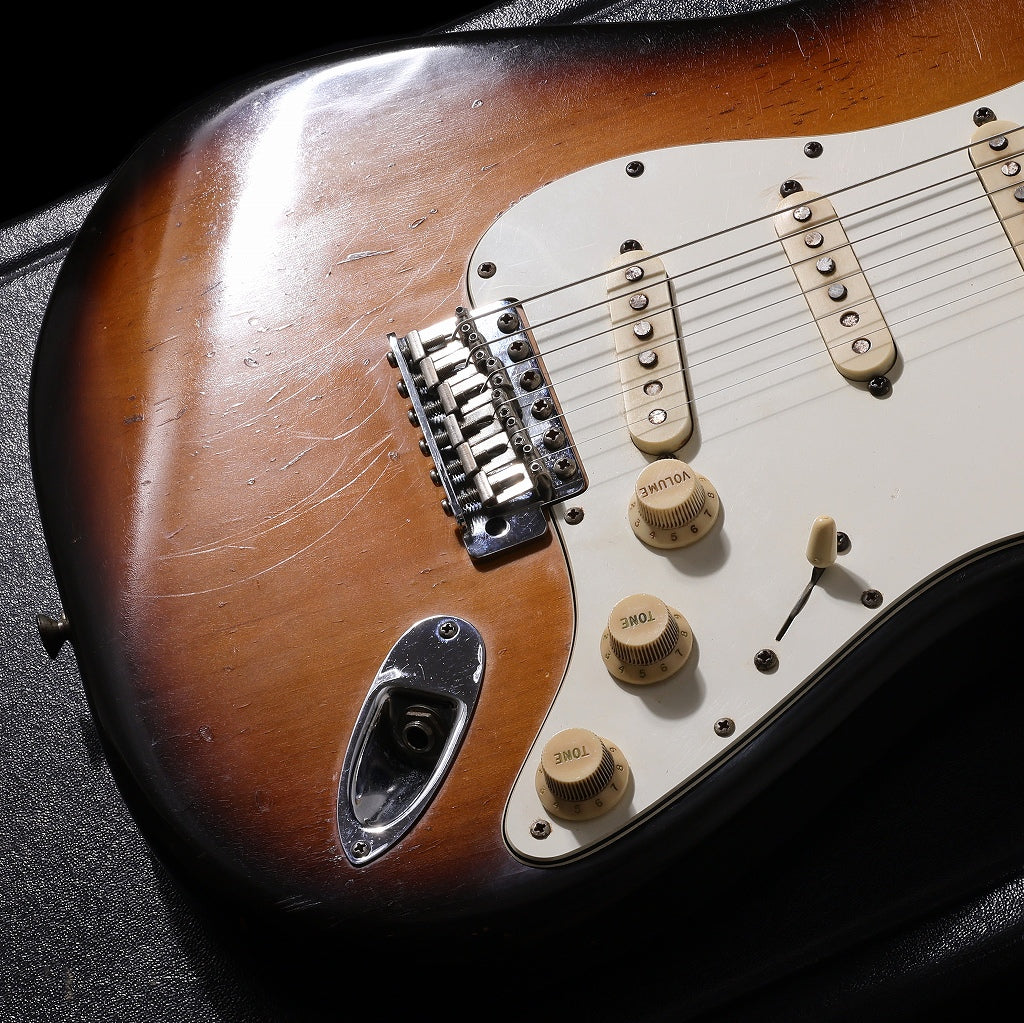

The entire bridge assembly—including the tremolo springs and block—and the jack have been replaced.

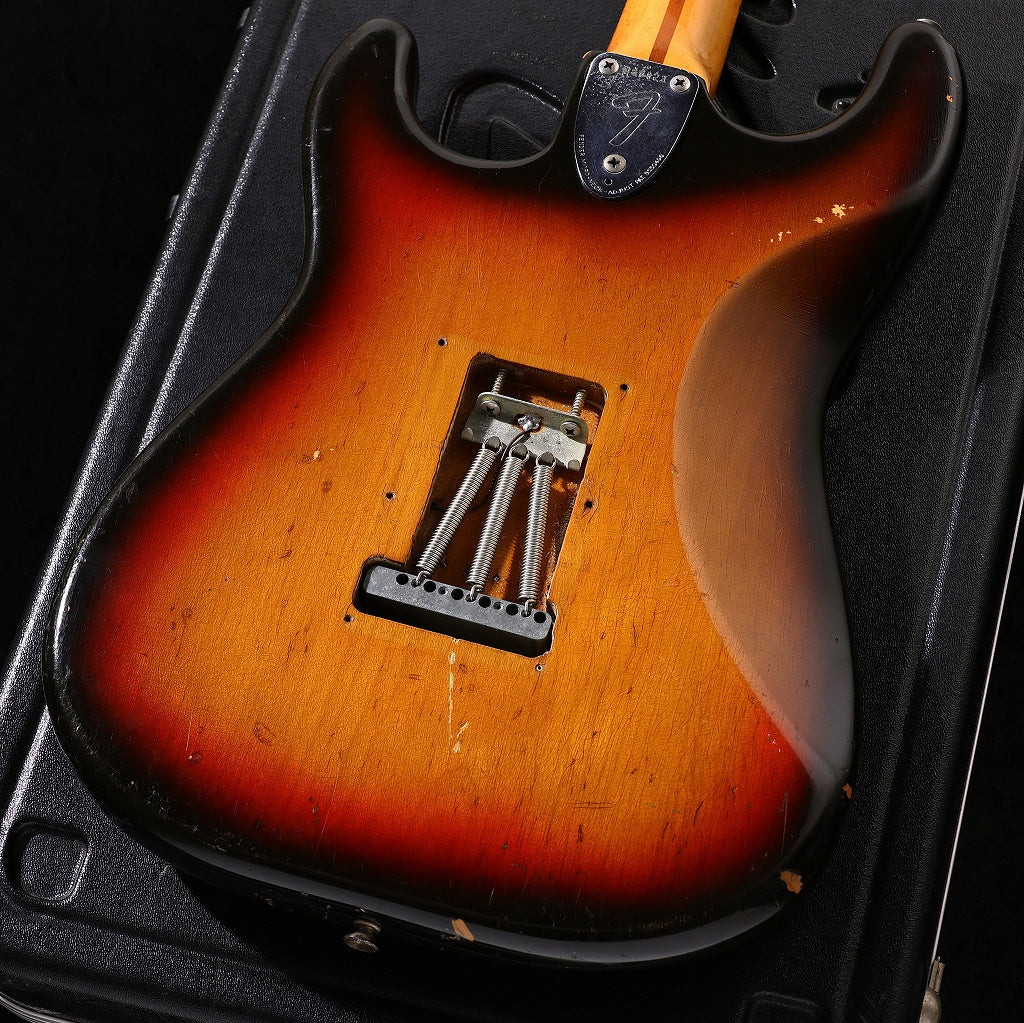

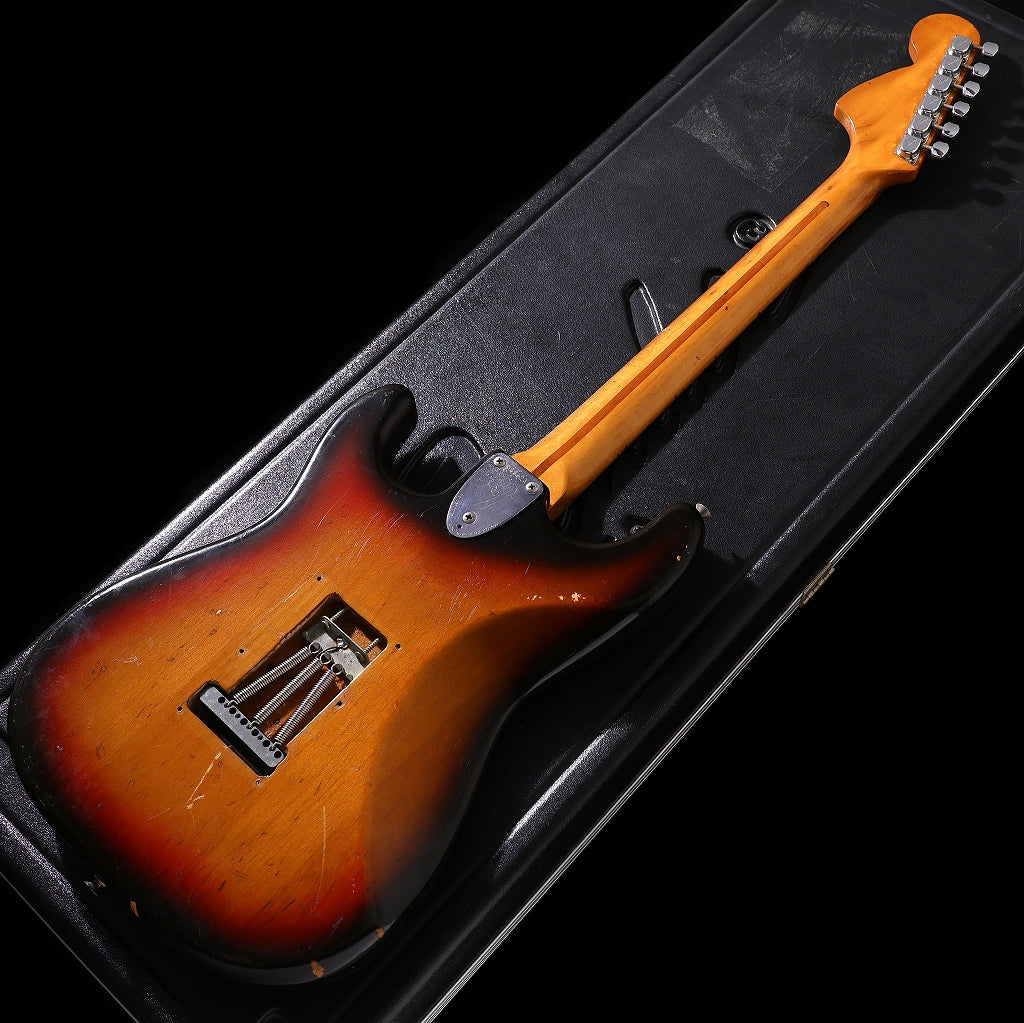

The back panel is missing.

Overall, there are scratches, dents, peeling paint, and weather checking.
Additionally, there are paint melt marks around the base of the headstock caused by a stand.

Although it shows signs of use, it’s a very cool-looking guitar with a vintage vibe.
.

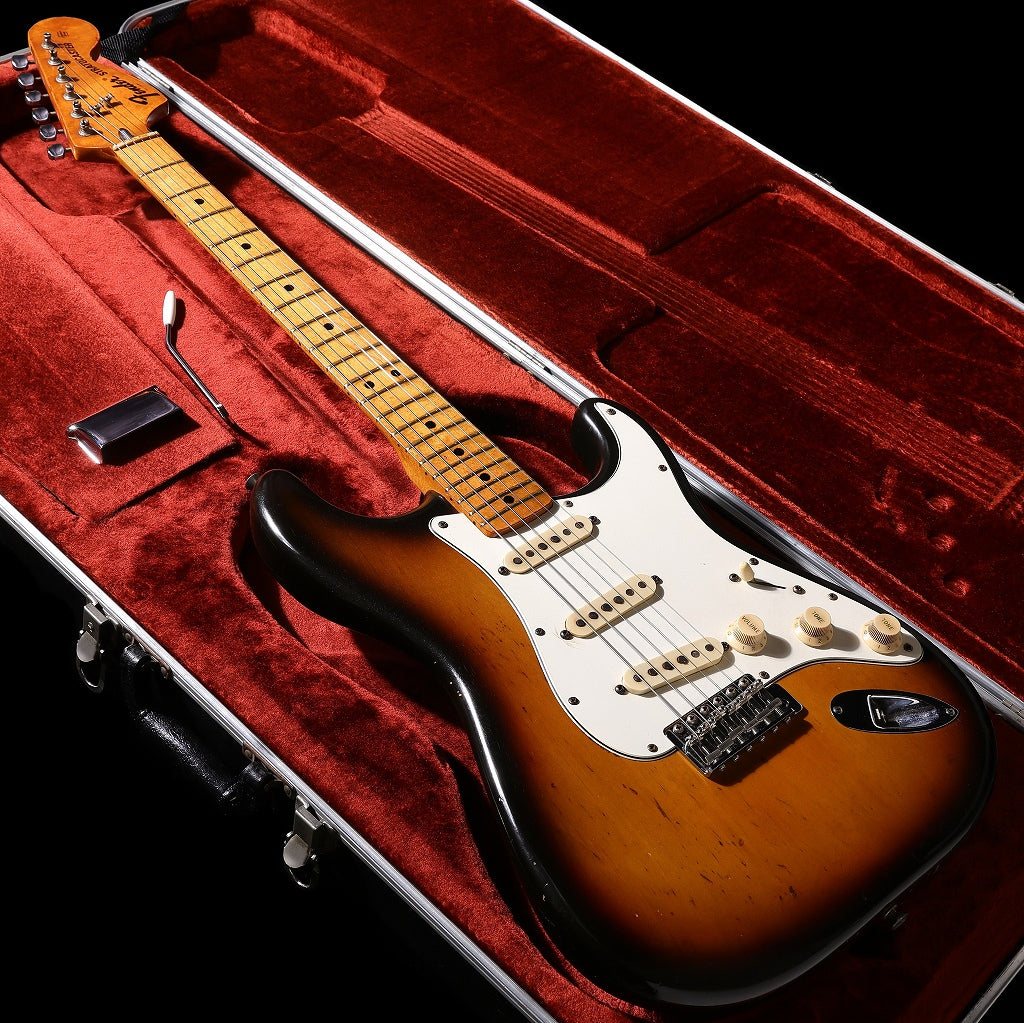

It comes with a molded case believed to date from the 1980s.

This Stratocaster features excellent pedal compatibility and a sparkling sound, embodying the unique charm of that era.
Please be sure to consider this opportunity.

* We sincerely apologize, but we are unable to accommodate requests to view this item at other Ishibashi Music locations or to have it transferred to another store.
Please direct any inquiries to the Ishibashi Music Ochanomizu Main Store.
Truss rod: Tested to 60 degrees in both directions (limited adjustment remaining in the loosening direction)
Neck Condition: No issues

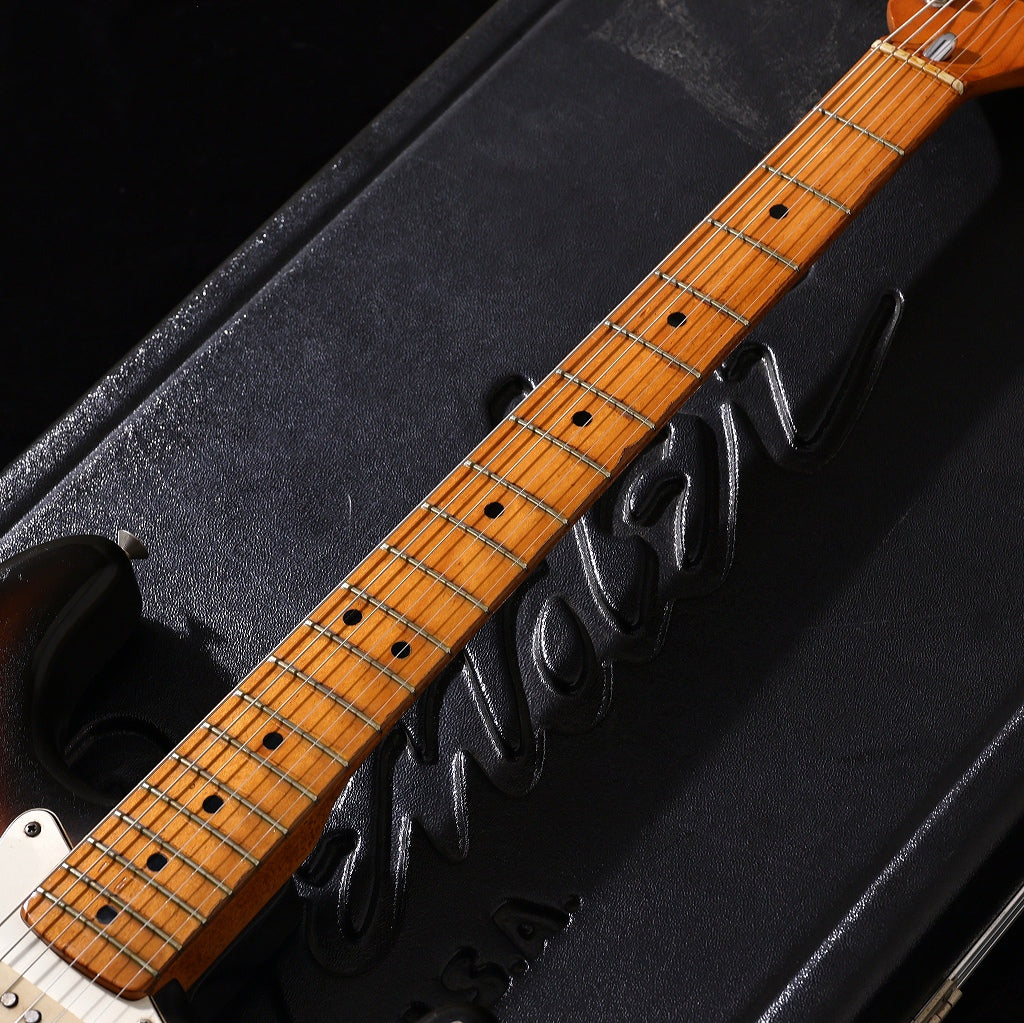

Frets: Approximately 50% remaining
Case: Fender molded case
Accessories: Non-original tremolo arm, bridge cover
Serial Number: 566923
Weight: 3.43 kg

Condition: B: Shows significant wear and signs of use, but is in good working order for normal use

Serial Number: 566923
Year of Manufacture: 1974
Country of Manufacture: United States
Case: Hard case
Weight: 3.43 kg
Truss Rod: Note: Tested up to 60 degrees to the left and right with no issues (some play remaining)
Fret Wear: Within normal range; fret height is sufficient for playability
String height (low-string side): 2.0 mm at the 12th fret
String Action (Treble Side): 1.5 mm at the 12th fret
Nut width: 41.1 mm
Neck thickness near the 1st fret: 20.7 mm
Neck thickness near the 12th fret: 22.1 mm
Scale: 648 mm (25.5")
Radius: 184 mm (7.25")
Strings at Setup: ERNIE BALL 2221 / .010-.046 set
Repairs and Maintenance Performed: Cleaning, string replacement, truss rod adjustment, octave adjustment, action adjustment
