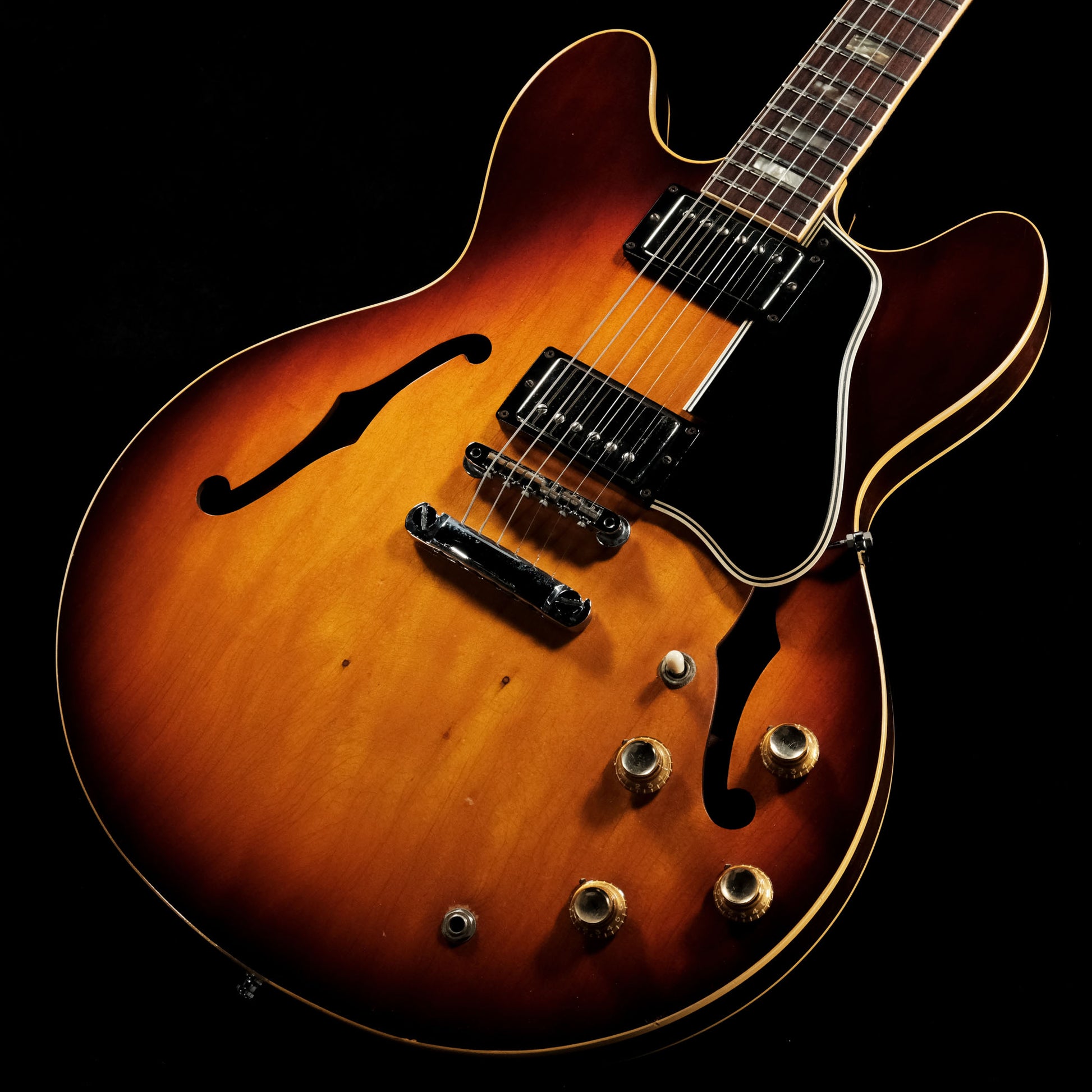

USED Gibson / 1967 ES-335 Sunburst [05]

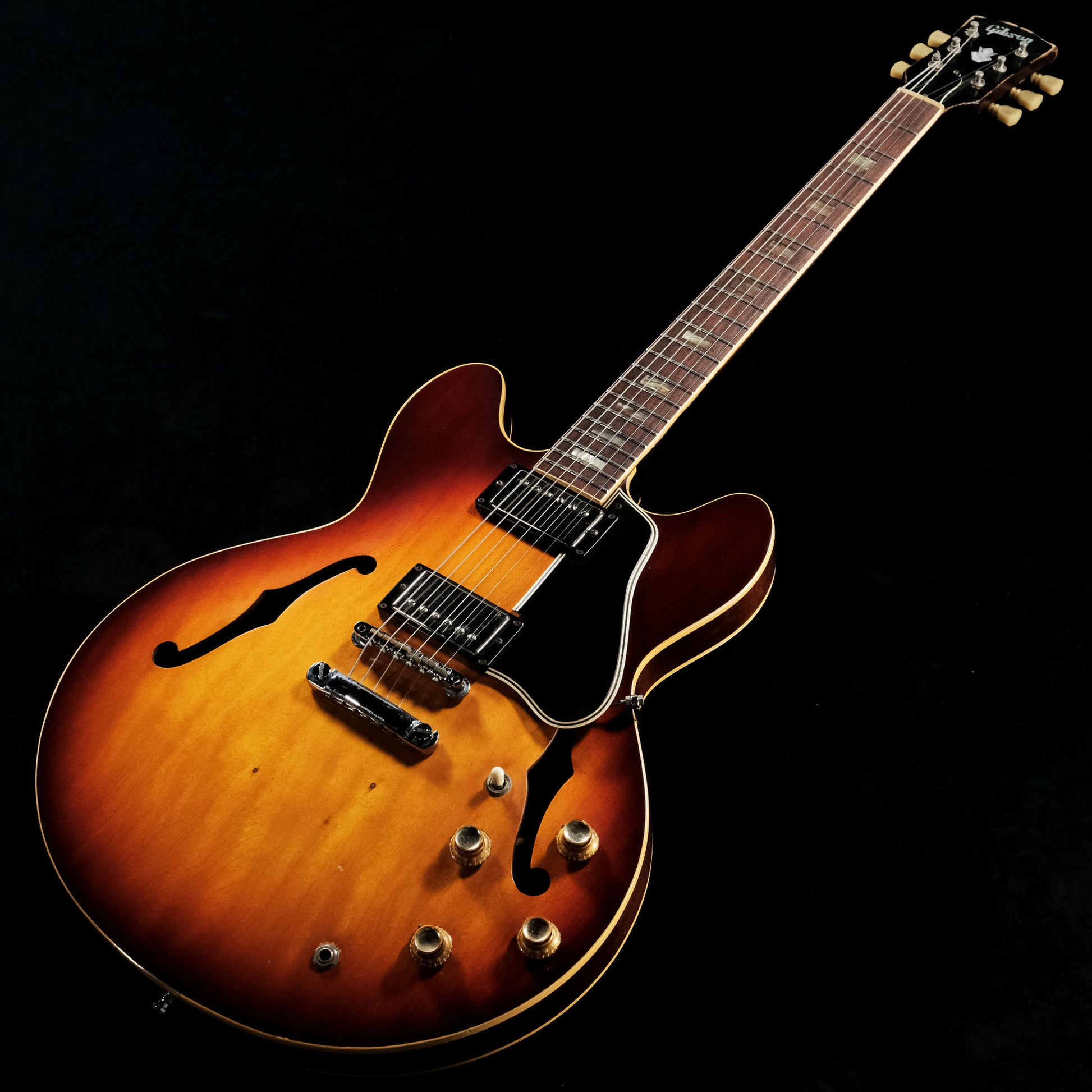

We are pleased to announce the arrival of a 1967 ES-335 Sunburst!

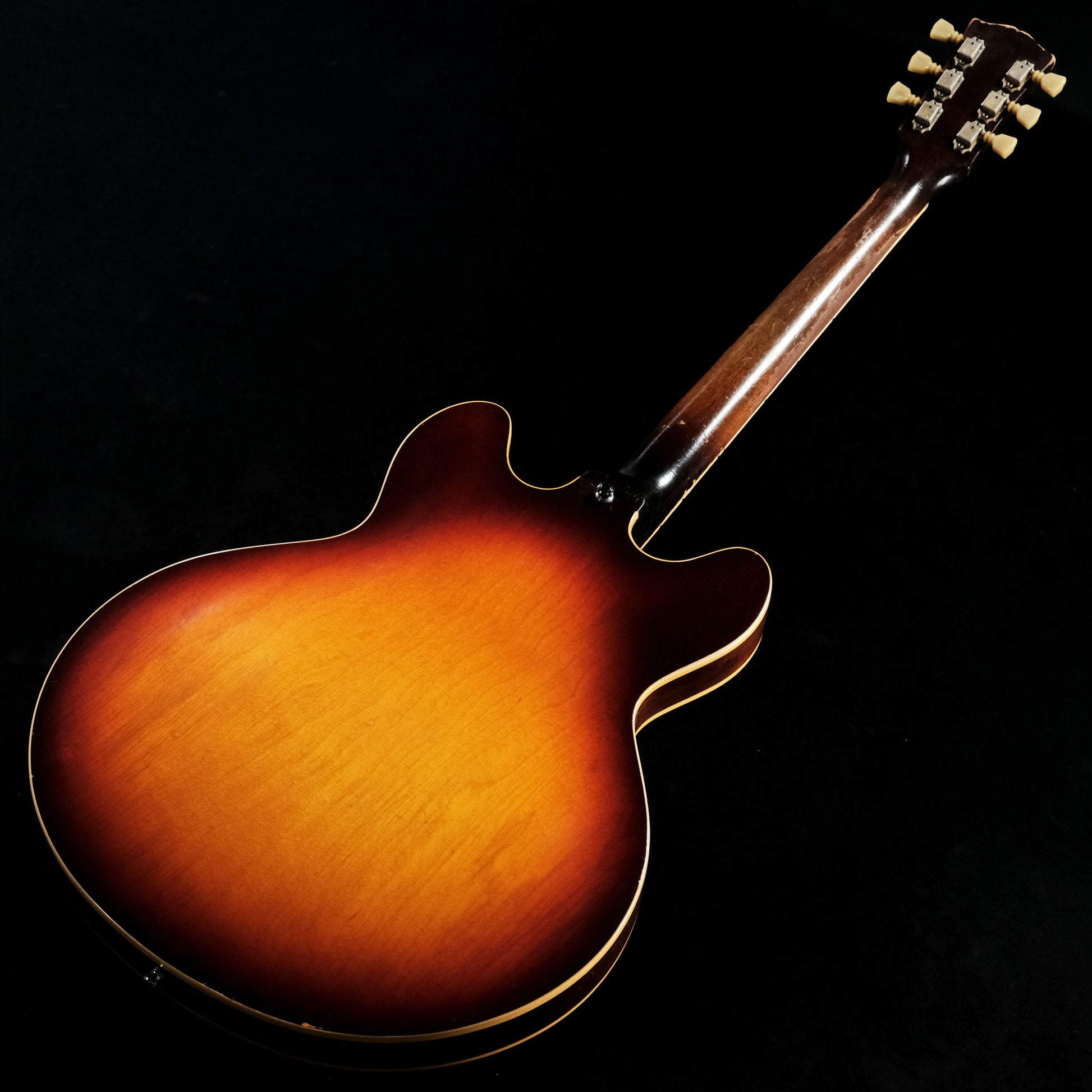

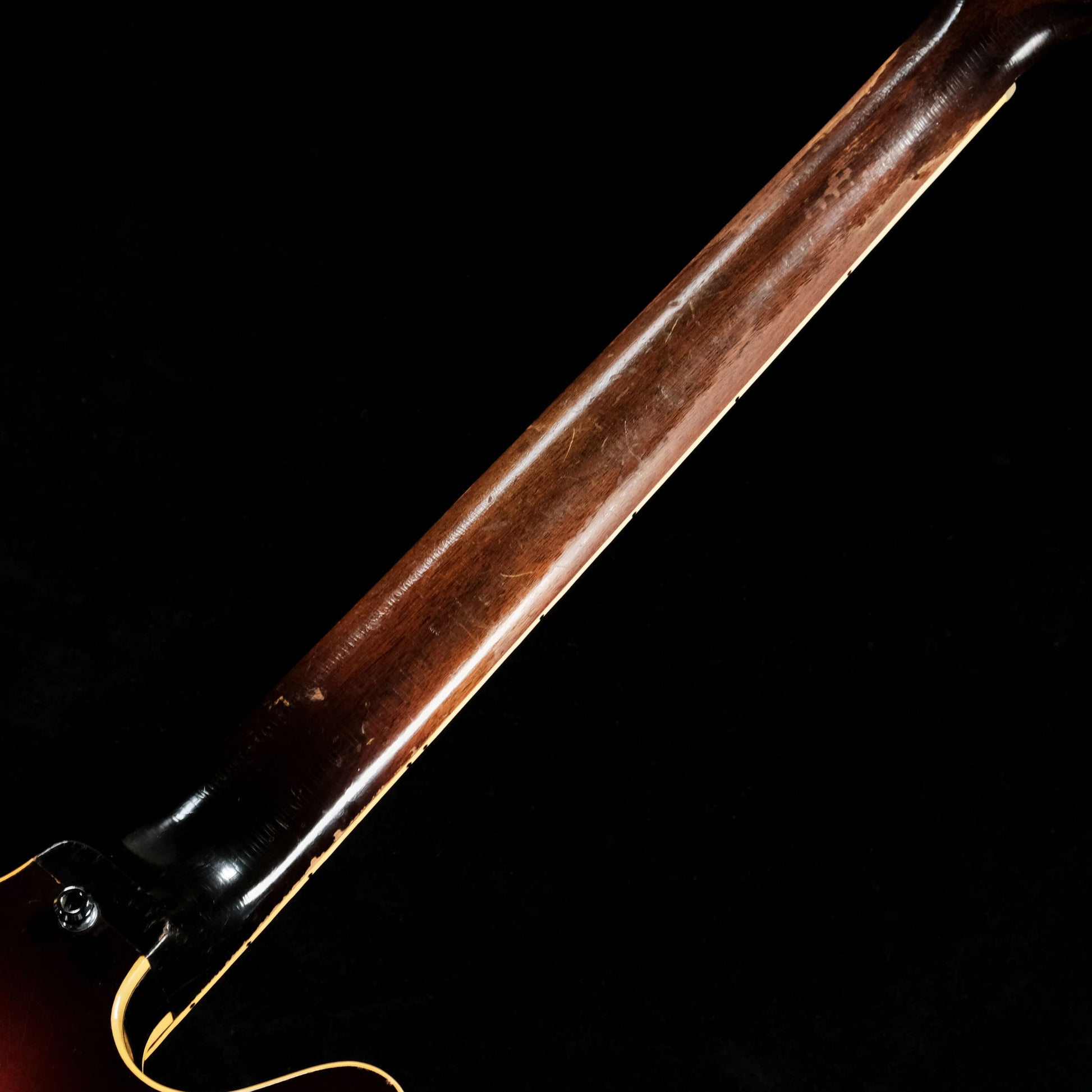

It is made in 1967 with mahogany 1 piece narrow neck.
The neck shape is about 40mm narrow and easy to grip.
Those who play with a "gripping form" with the thumb on the neck will find it especially easy to play.

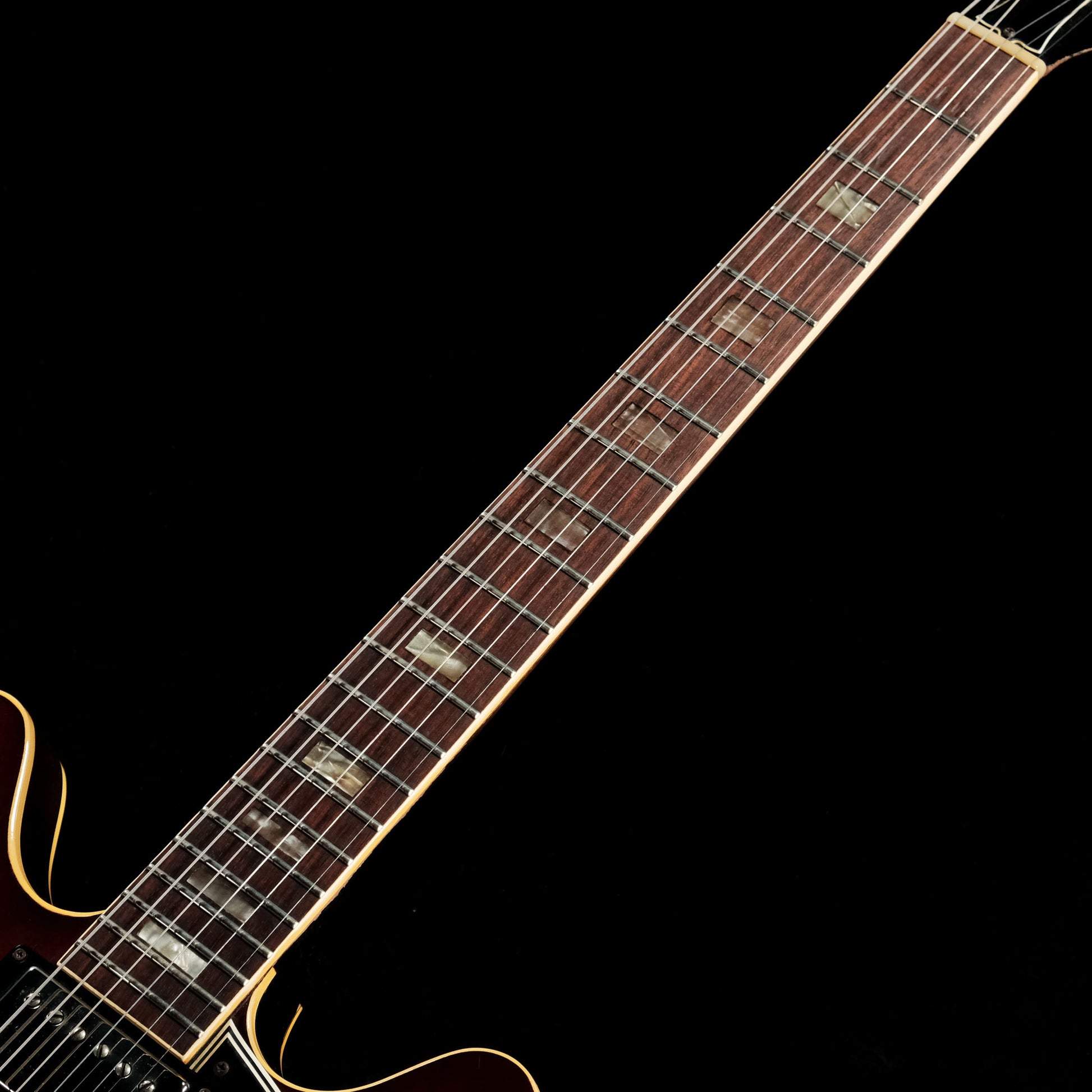

Choking and vibrato can be easily applied, and the close distance between the strings makes it easy to make quick chord changes. The fingerboard is made of rosewood and inlaid with small blocks.

Pickups
The pickups are Steckard Numbered PAF.
The mid-high range is emphasized and you can enjoy the fast rising humbucker sound.
The high frequencies are well defined, but the sound is not sharp.
The output is a little modest, but it has both transparency and sweetness.

Controls.

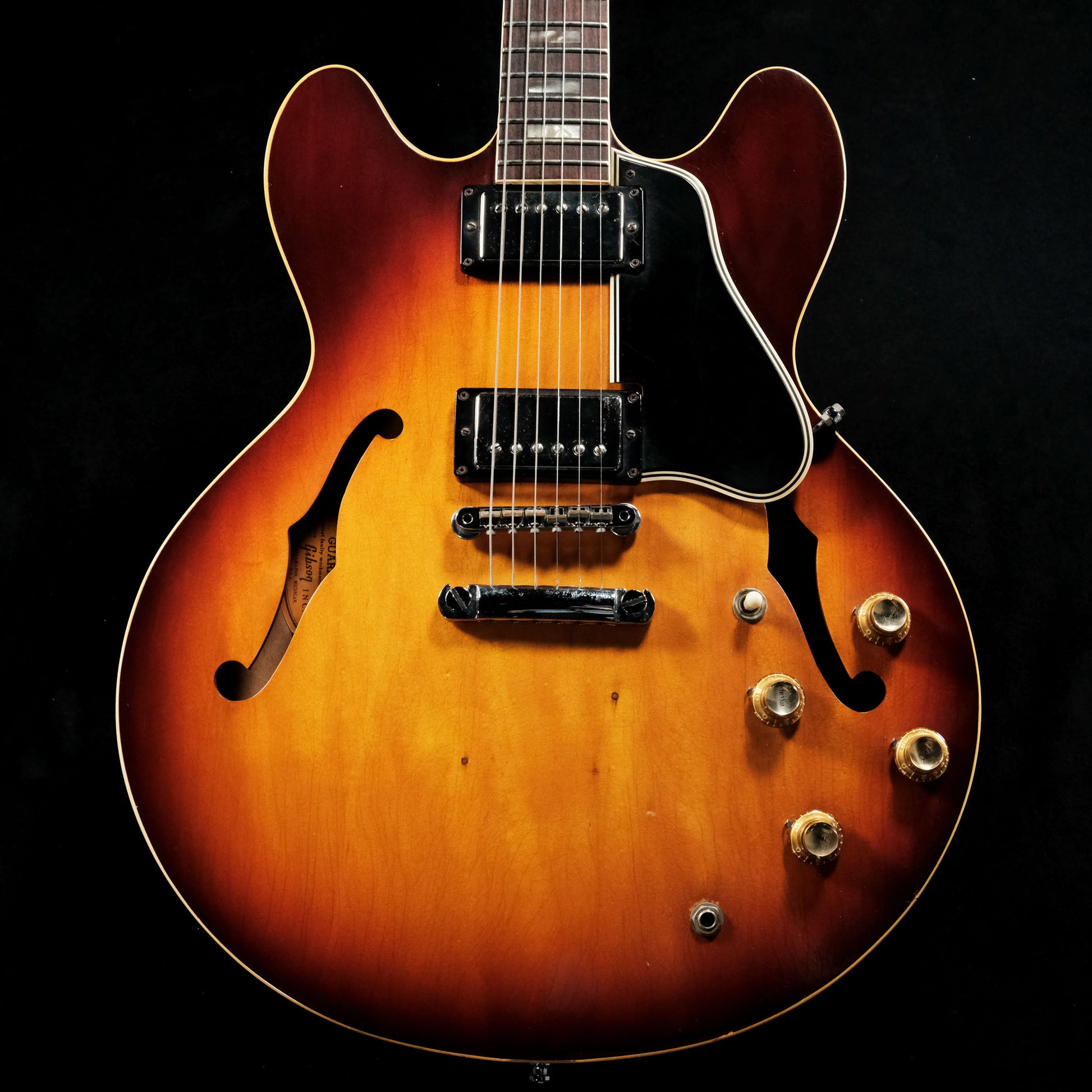

2 volume, 2 tone, 3-way toggle switch.
All four pot dates are CTS and do not appear to have been replaced, but the only one we could confirm for sure is the rear volume, which shows the two digits of the year: 13766XX.
The toggle switch and jack are Switchcraft.
The condenser is a SPRAGUE .022.

Hardware.
The bridge is equipped with an ABR-1 tune-o-matic.
The tailpiece is currently equipped with a stop bar, but it looks like a Bigsby was installed and the hole has been filled in.

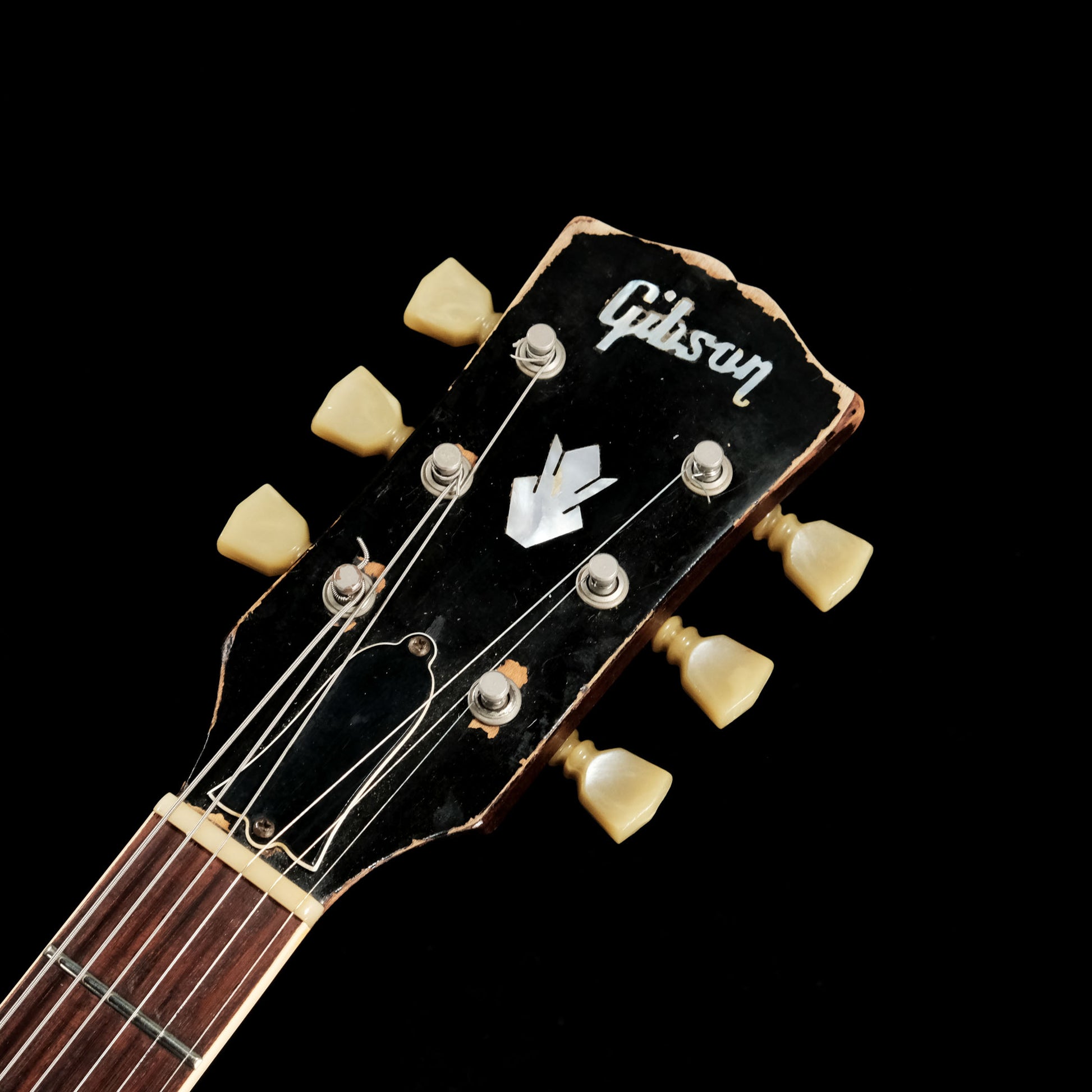

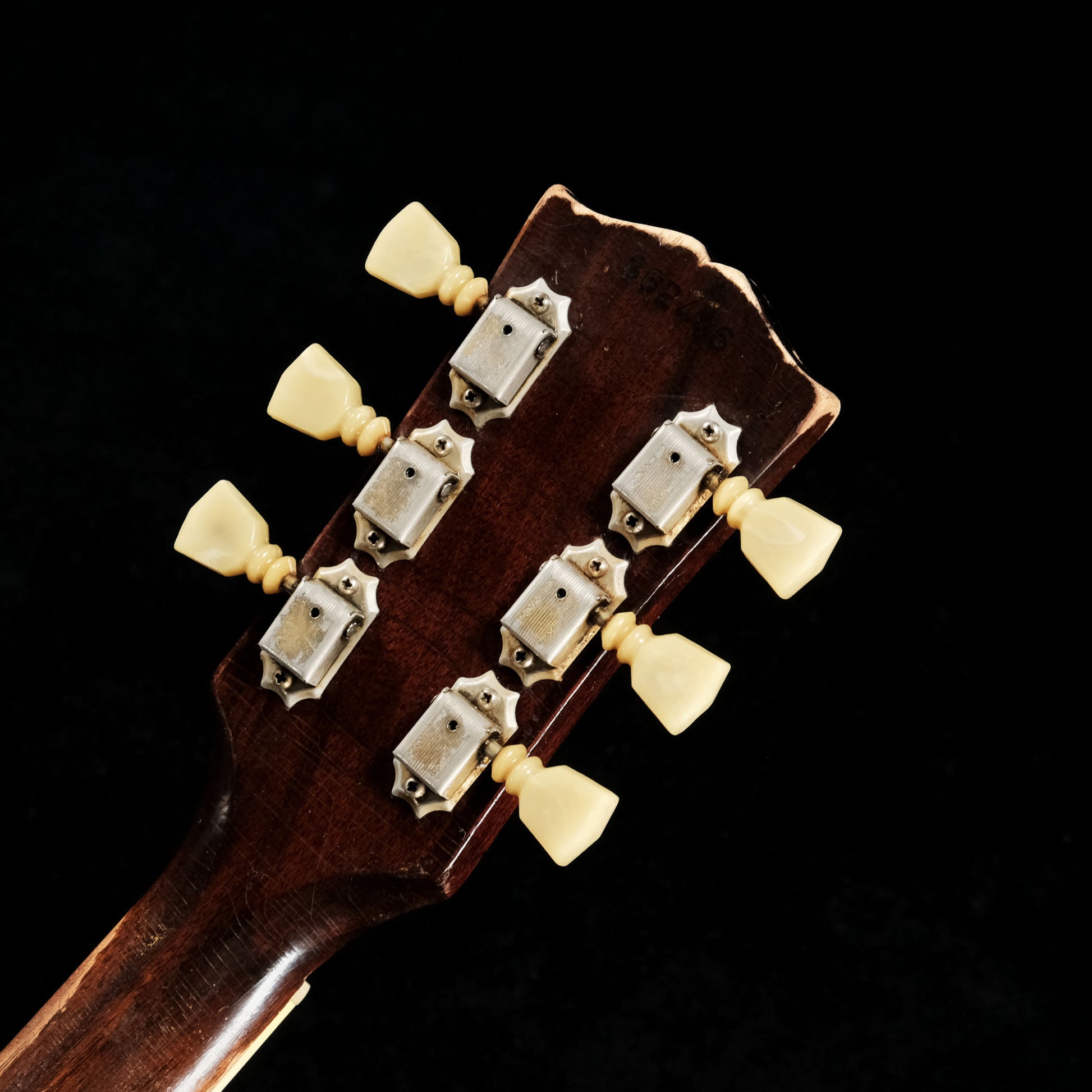

The pegs are double line, double ring Cruson triple pegs.
The strap pins have been replaced.

Sound
The mahogany neck is clear and tight for its age, and the response is clear and tight.
The sound of the Steckard-numbered PAF from this period has a strong impression, and it seems to be a good match for rock and blues because it can produce a sharp sound compared to the models from the first half of 1960.
It also seems to be a good match for jazz and modern music.

Condition

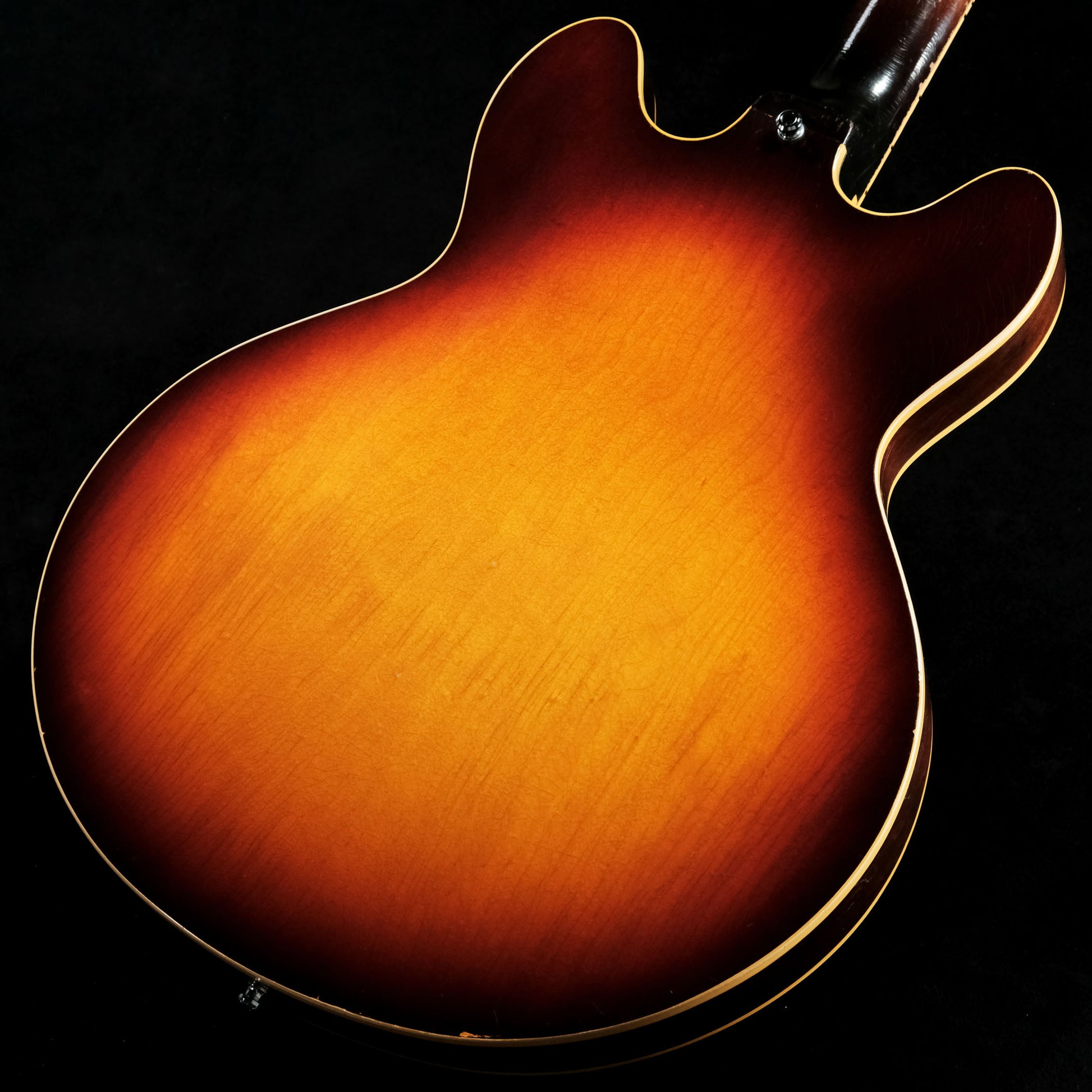

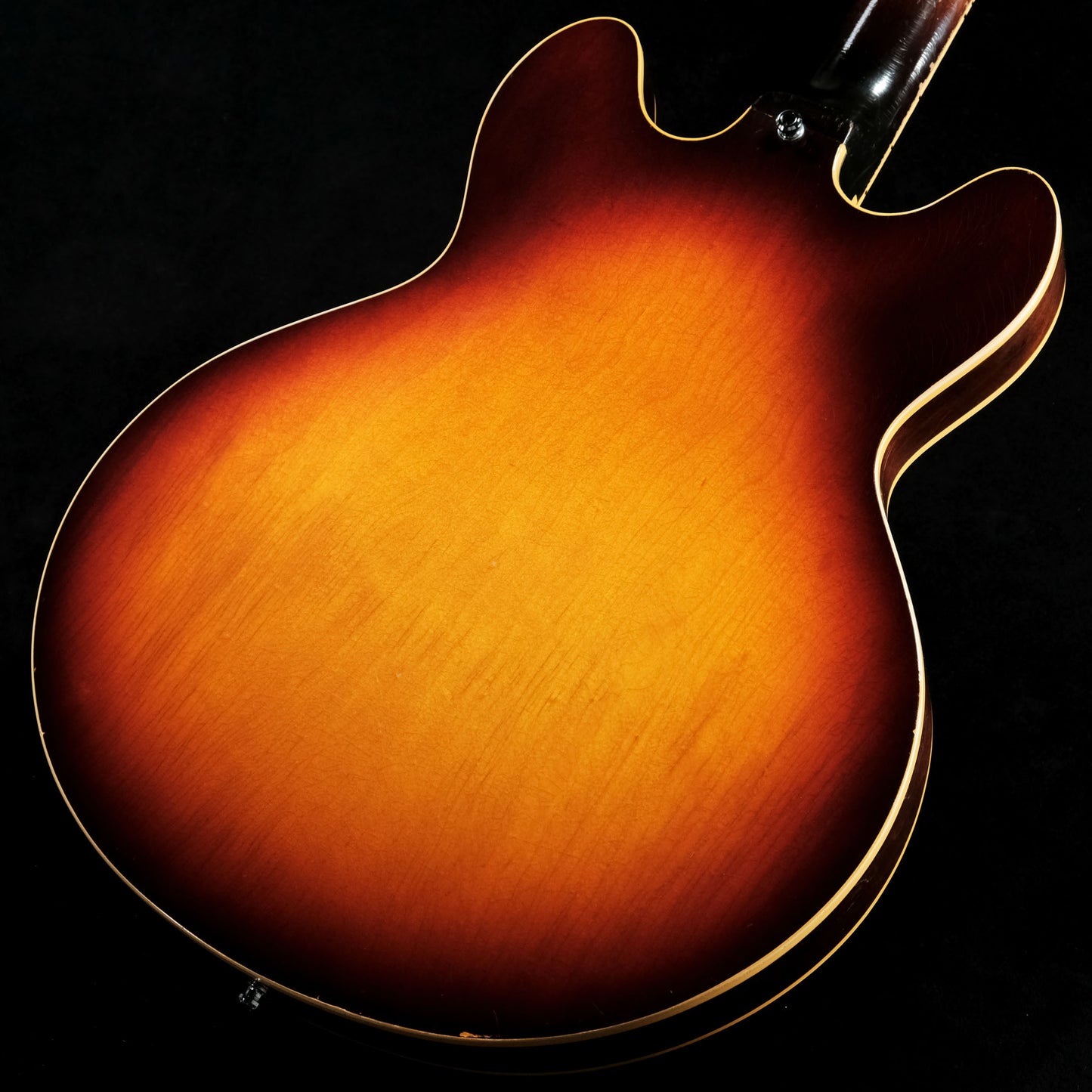

The instrument shows signs of use commensurate with its age, and there are scratches throughout.
However, each part has been aged and the paint has weather checks, giving it an old look that cannot be imitated by aging.

The nuts, frets, and strap pins have been replaced, but the guitar has been set up by a repair shop to ensure that it is easy to play, and playability is ensured.

Item Rank: B: Fairly scratched and used, but no problems in normal use.

Serial Number: 862446
Year of manufacture: 1967
Country of manufacture: USA
Case: Semi-hard case made by MONO
Accessories: None
Weight: 3.49kg
Truss Rod: No problem, rod is fine, checked up to 60 degrees to the left and right
Fret life: No problem, no need to replace for a while.
String height on bass side: 2.0mm above 12th fret
String height on treble string side: 1.5mm above 12th fret
Nut width: 40.0mm
Neck Thickness near 1st fret: .846" (approx. 21.5mm)
Neck thickness near 12th fret: 1.003" (approx. 25.5mm)
SCALE: 628mm (24.75")
RADIUS: 305mm (12")
Strings in setup: .010-.046
Modified: Nuts, frets, strap pins
Repair and Maintenance: Pot cleaning, string change, string height adjustment, octave adjustment
Pot Front Volume: CBA-811-1053 500K ATXXXXXXXXX
Pot Front Tone: CBA-811-1053 500K AT137XXXXXX
Pot Rear Volume: CBA-811-1053 500K AT13766XXX
Pot rear tone : CBA-811-1053 50XX XXXXXXXXXXX

* Due to used condition, there may be scratches, dents, etc. that are not easily seen in the photos or scratches other than those listed. Please note that there are scratches, dents, etc. that are difficult to see in the photos or that are not listed.

* If the truss rod, remaining frets, or string height is indicated, it was measured by our staff at the time of setup, and may change due to climate, humidity, or other environmental factors.
The values are intended to be used as a reference at the time of purchase, and we do not guarantee that they will be the same when you receive the instrument.

* This item is a one-of-a-kind item and is listed on multiple malls at the same time, including in-store displays. We try to delete product information as soon as possible, but this is not always in real time.
We apologize in advance if the item is sold out after you place your order.

Specs (Japanese only)

Product rank
B: Fairly scratched and used, but no problem in normal use.

12 months old

Serial No.
862446

Year of manufacture
1967

Country of manufacture
U.S.A.

Case
Semi-hard case made by MONO

Accessories
None

Weight
3.49kg

Truss Rod
No problem, rod checked up to 60 degrees left and right

Fret remaining
No problem, no need to replace for a while

String Height Low String Side
2.0mm above 12th fret

String height on treble string side
1.5mm above the 12th fret

Nut width
40.0mm

Neck thickness near 1st fret
.846" (approx. 21.5mm)

Neck thickness near 12th fret
1.003" (approx. 25.5mm)

Scale
628mm (24.75")

RADIUS
305mm (12")

Strings at setup
.010-.046

Modified parts
Nut, Fret, Strap Pin

Repair and maintenance parts
Pot cleaning String replacement String height adjustment Octave adjustment

Pot Front Volume
CBA-811-1053 500K ATXXXXXXXXX

Pot front tone
CBA-811-1053 500K AT137XXXX

Pot rear volume
CBA-811-1053 500K AT13766XX

Pot rear tone
CBA-811-1053 50XX XXXXXXXXXXX
