USED GIBSON USA / EB-4L 1973 Walnut [03]

Gibson EB-4L made in 1973 is now in stock.

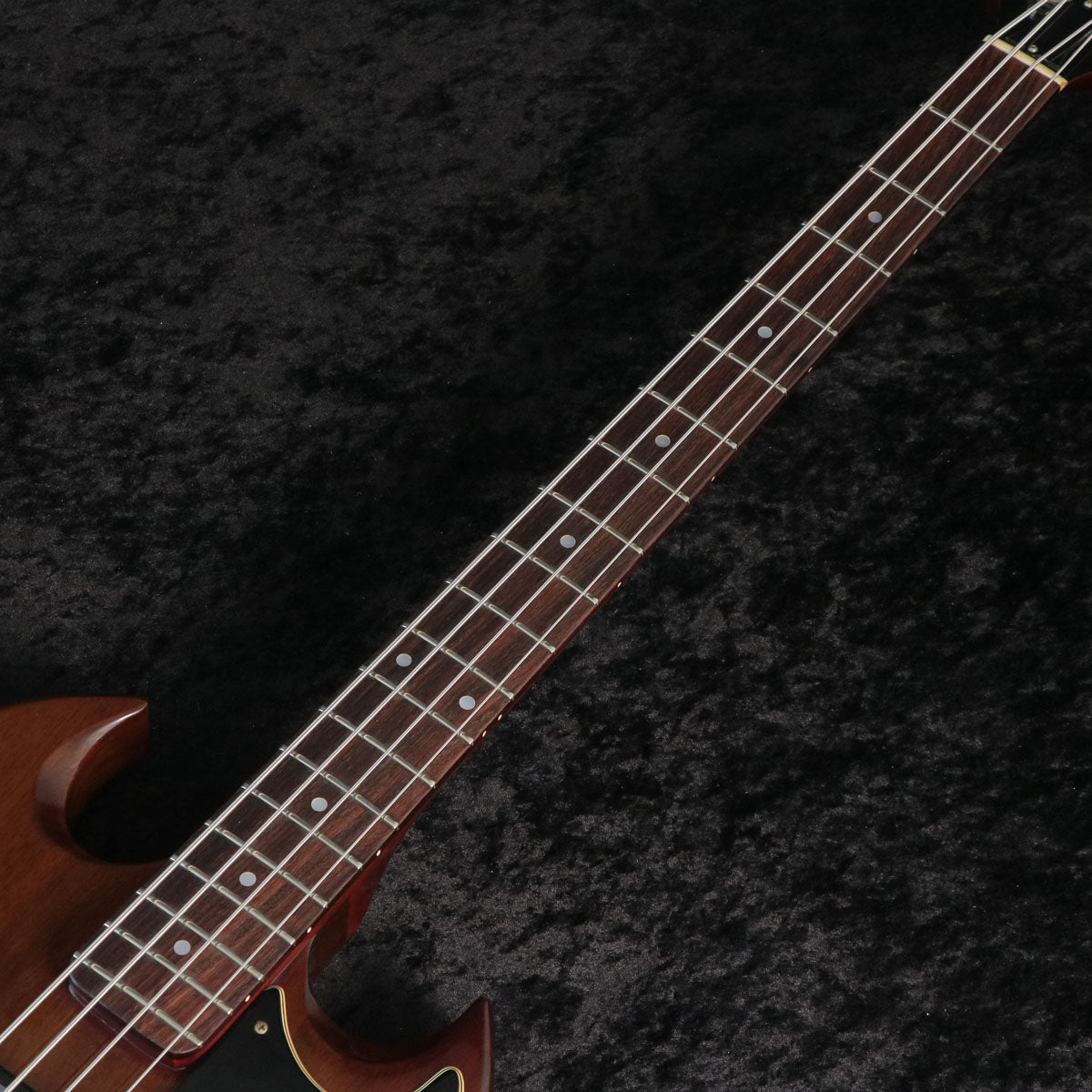

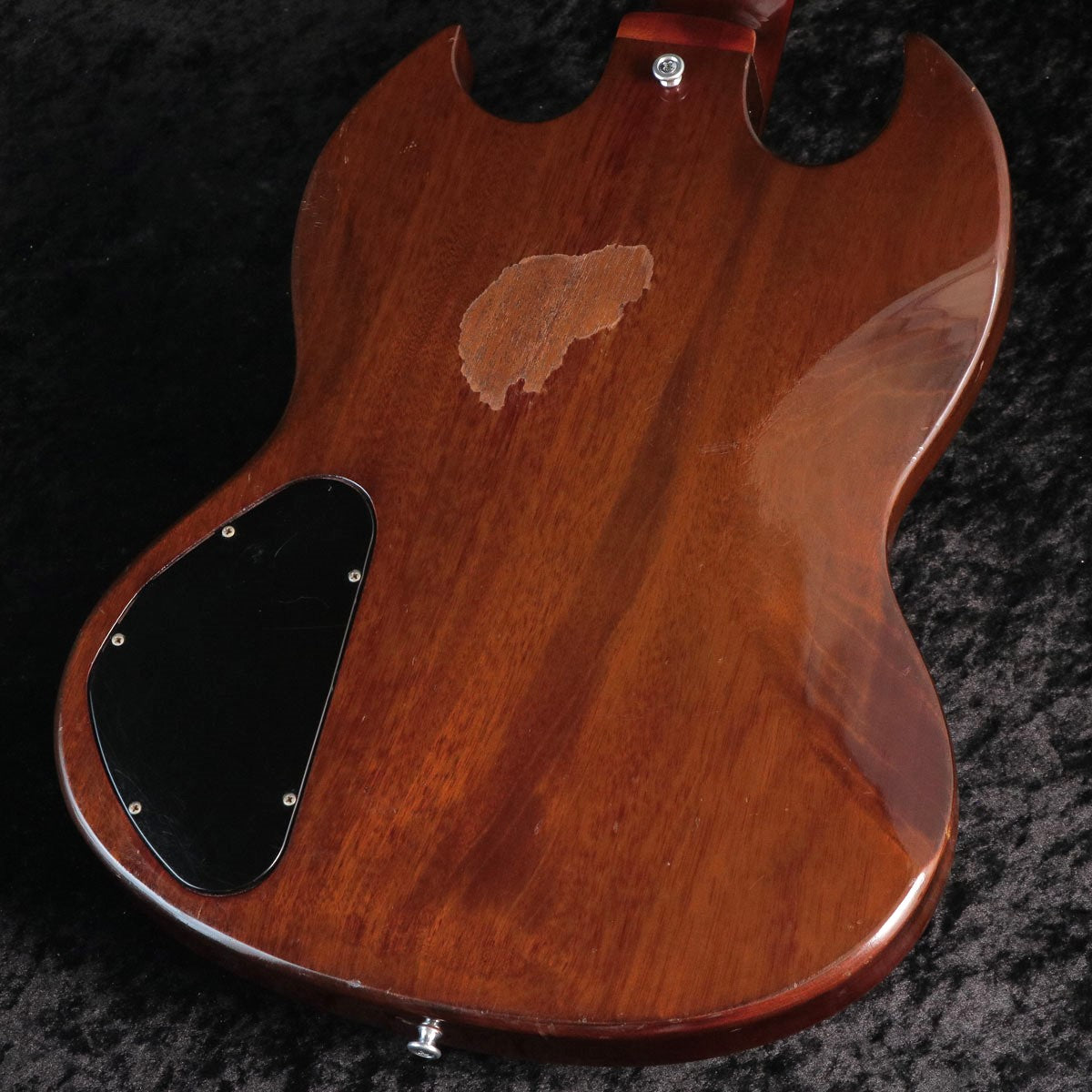

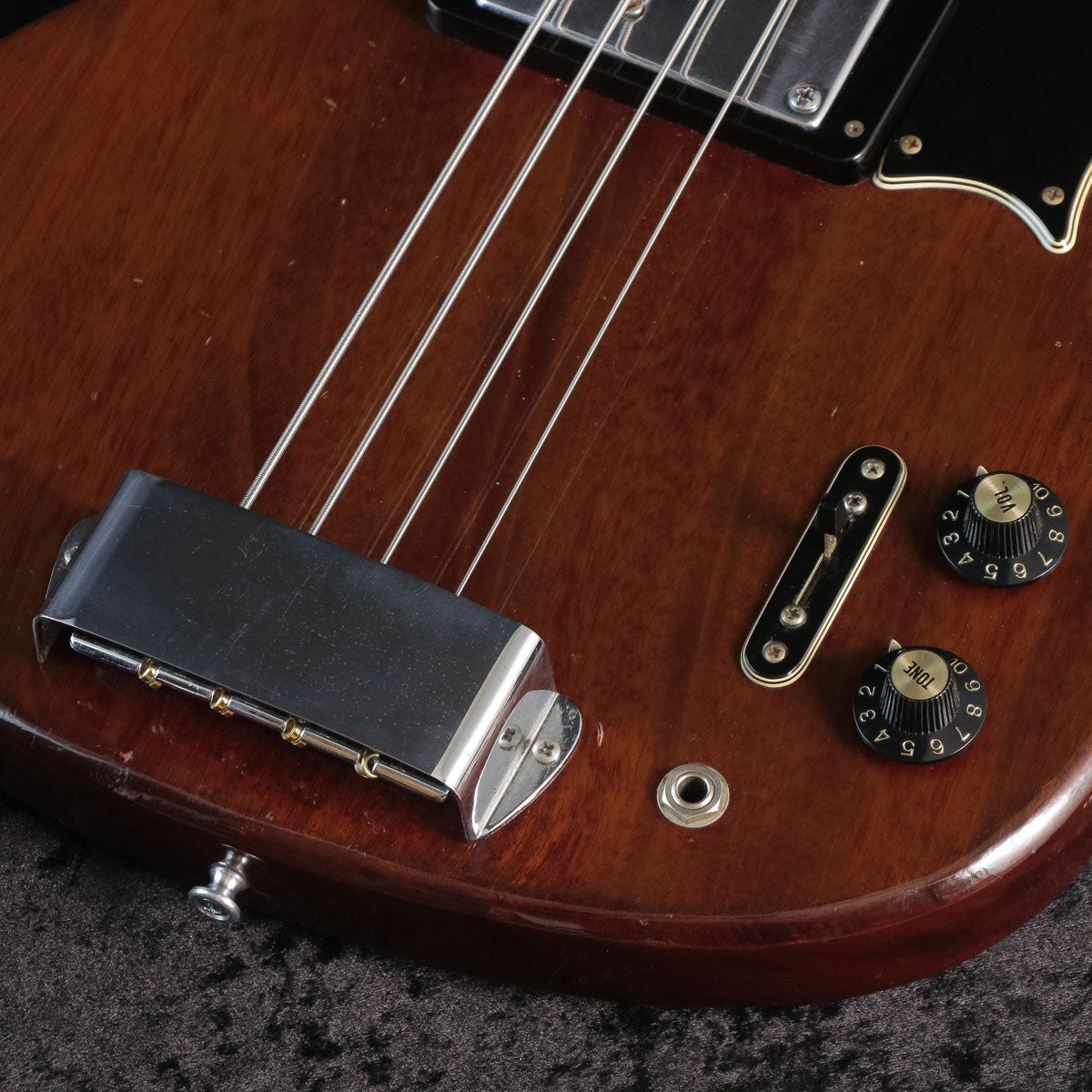

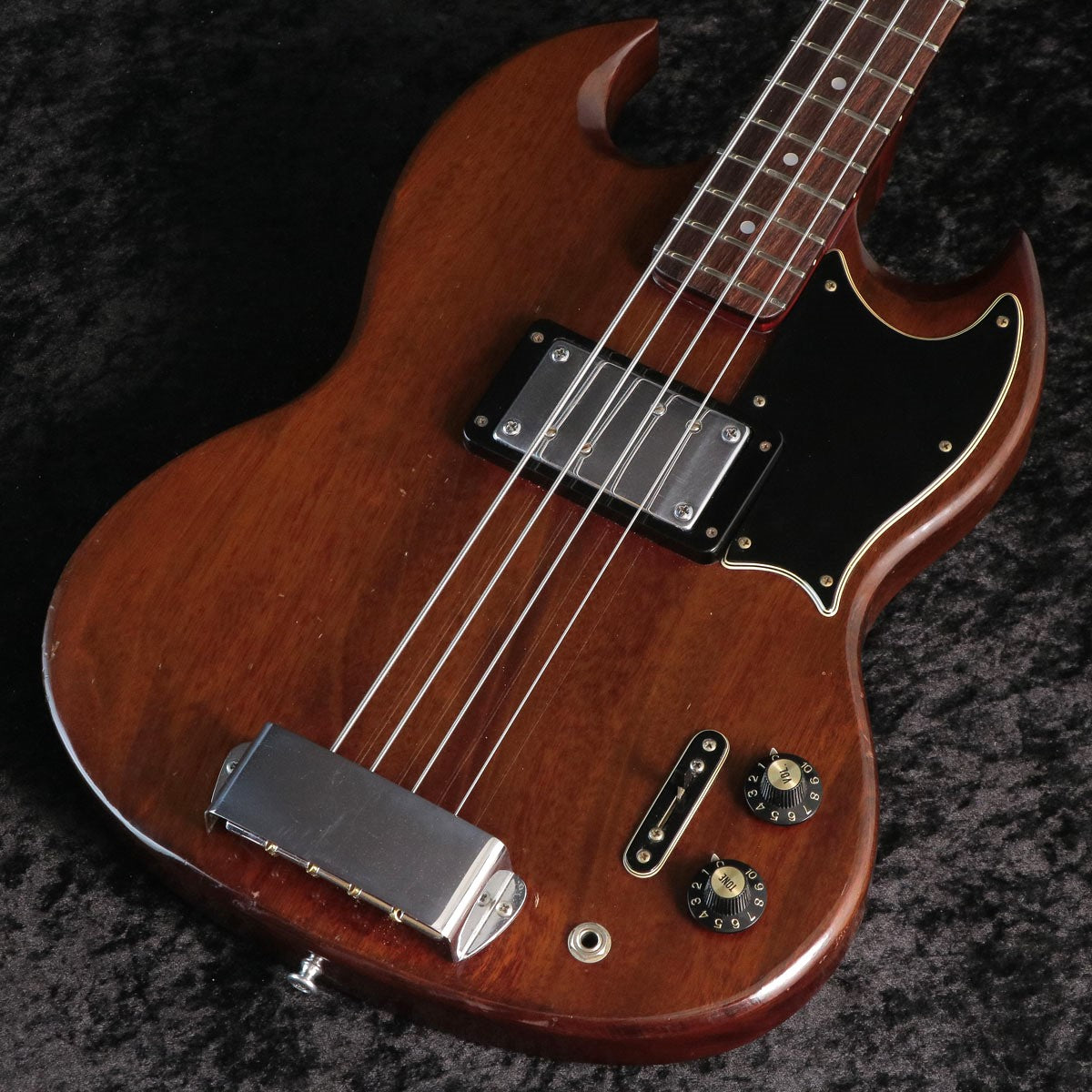

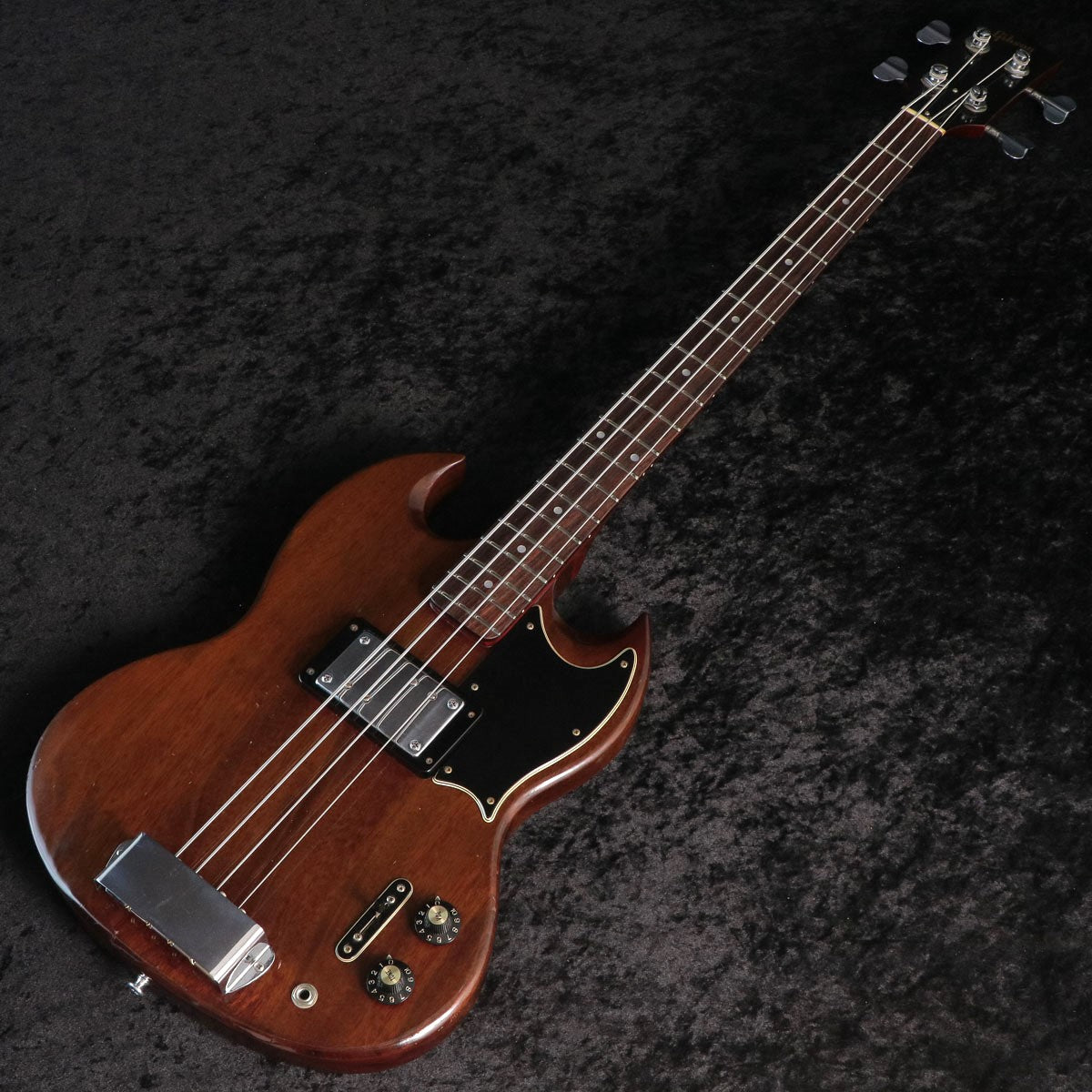

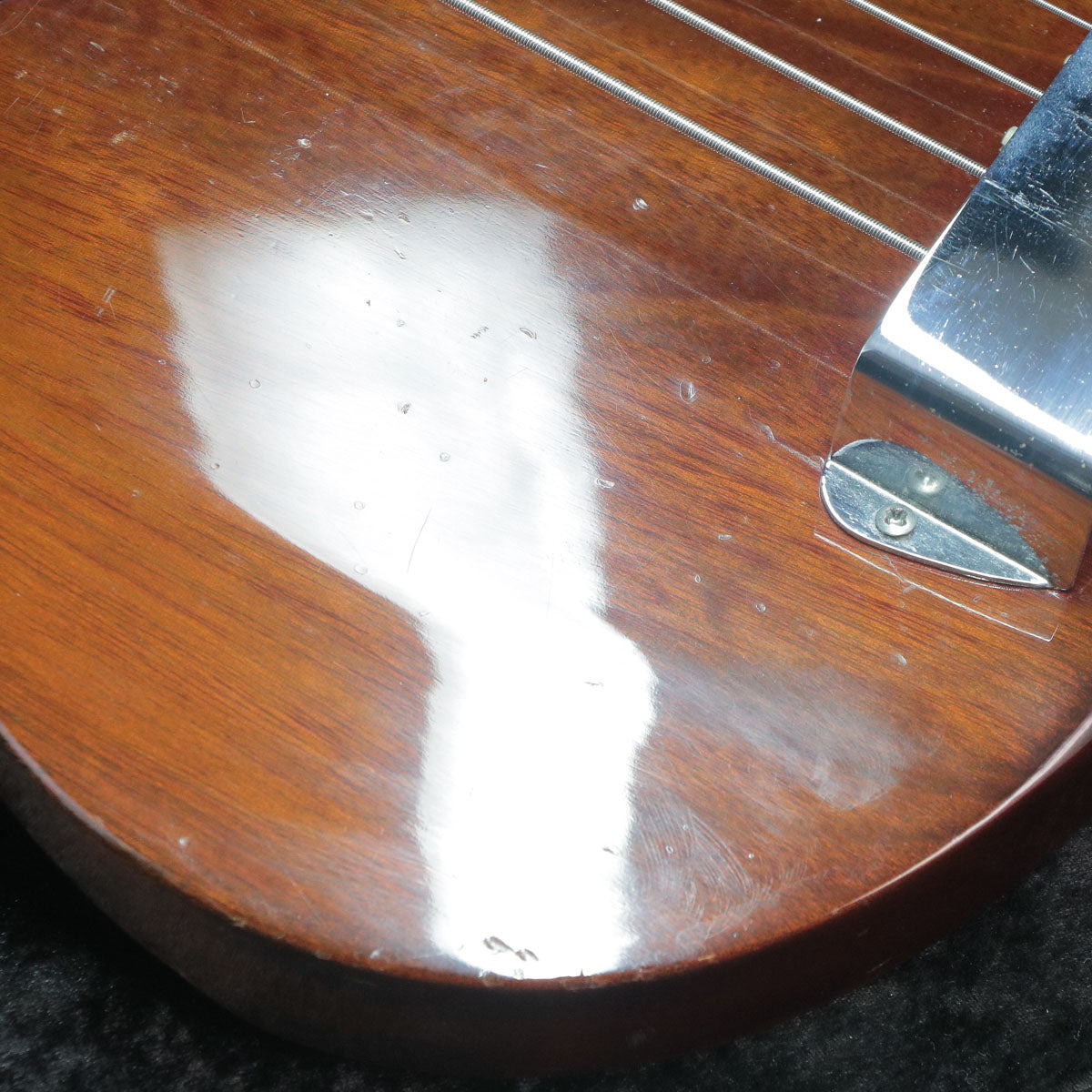

The EB-4L comes in a shiny Walnut color, with a mahogany body, 3-piece maple set neck, and rosewood fingerboard. This coloring was common in the first half of 1973. The two-point bridge also indicates that it was made in the first half of 1973.

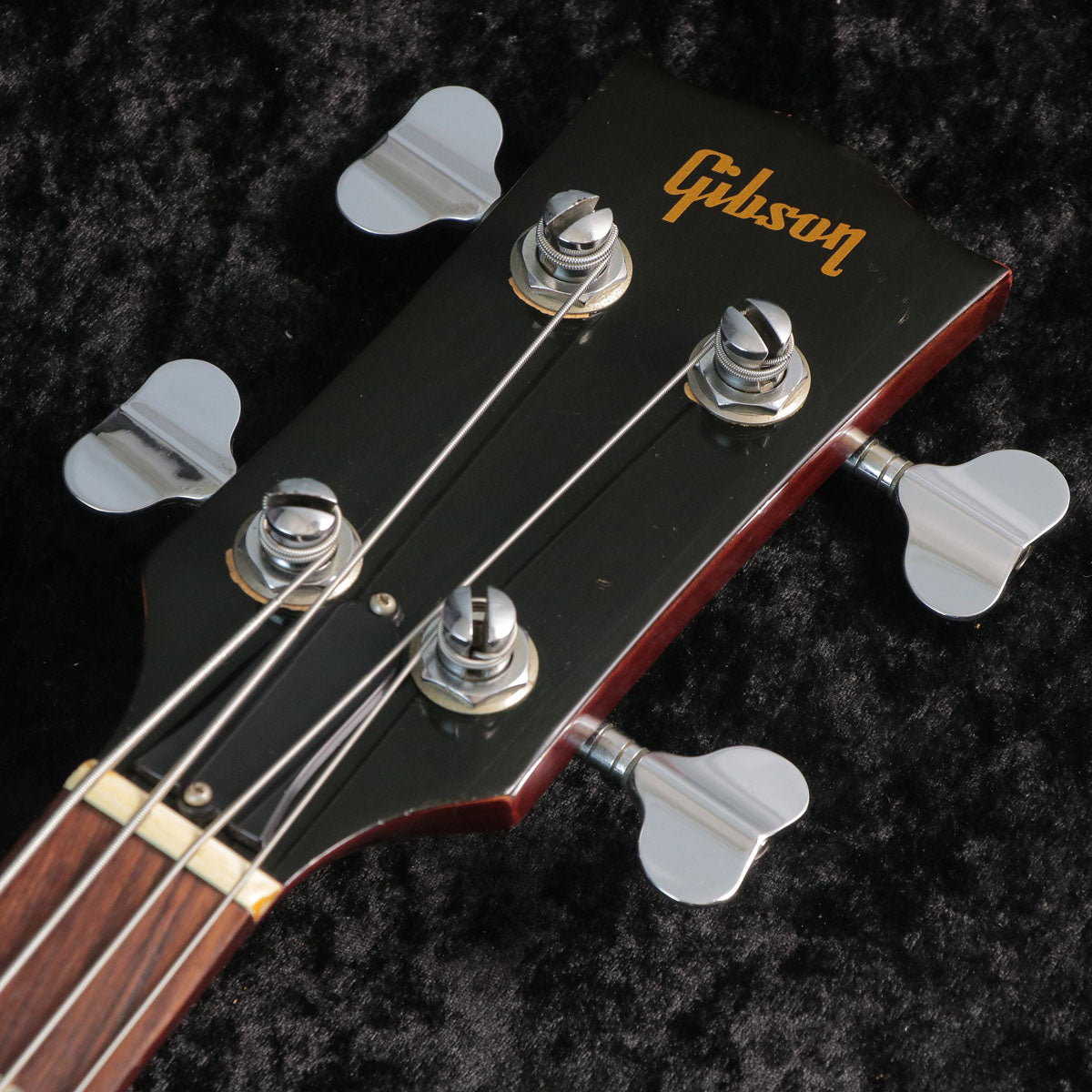

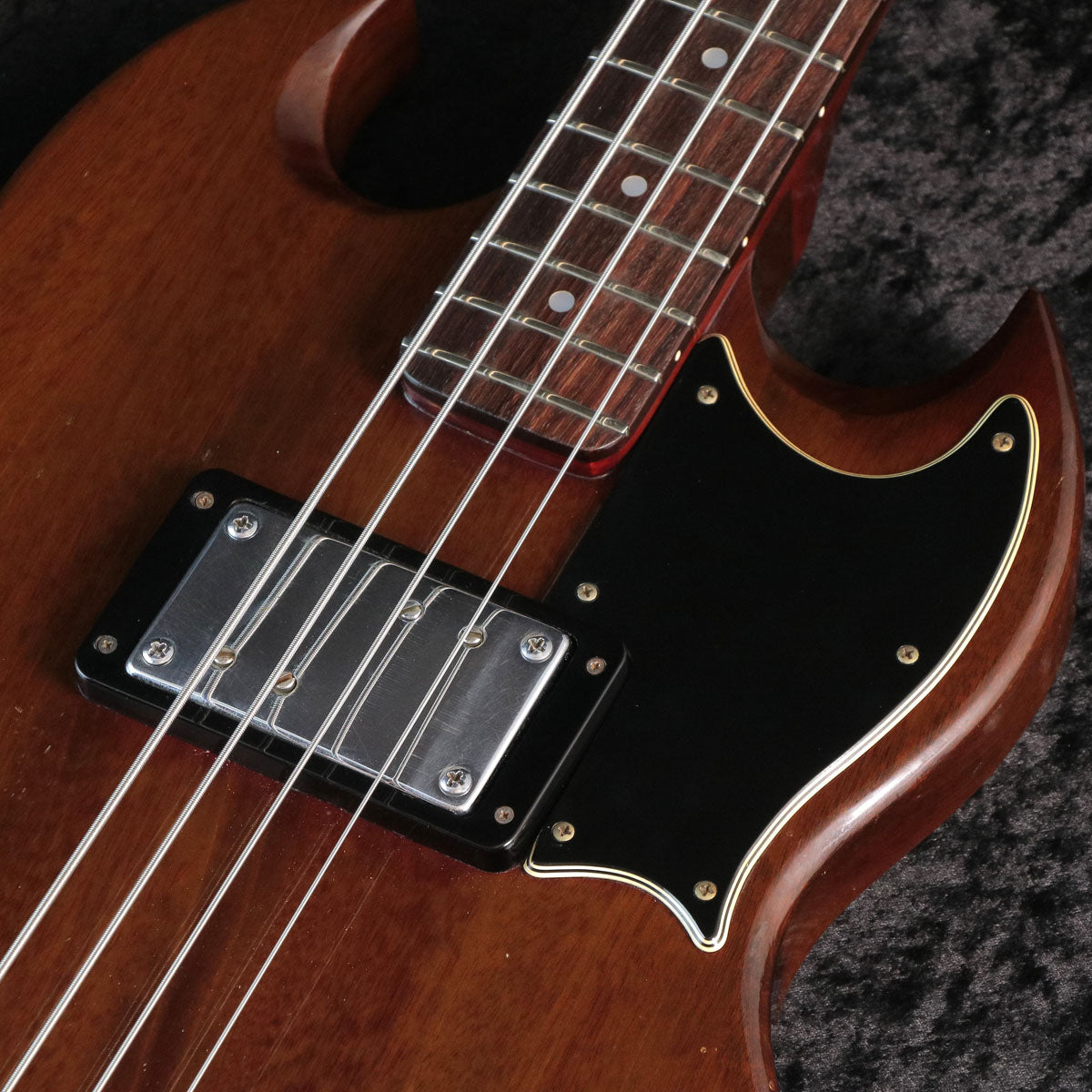

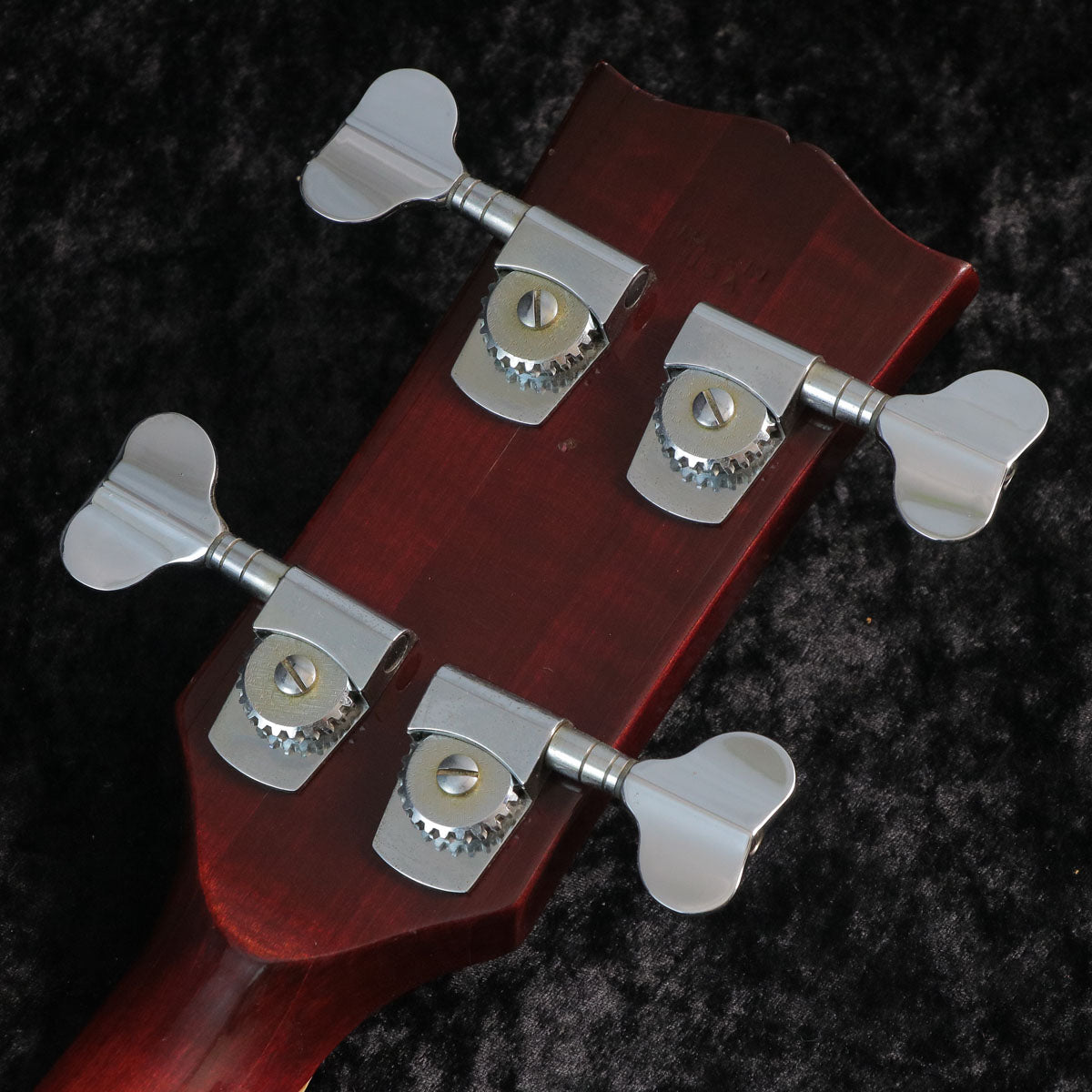

Unlike the EB-0, the pickups have been changed, with the upper and lower pole pieces separated from each other, the position of the pickups further away from the joint, and a tone selector. Also, the pegs have been changed from thin clover pegs to rounded and thick heart-shaped pegs.

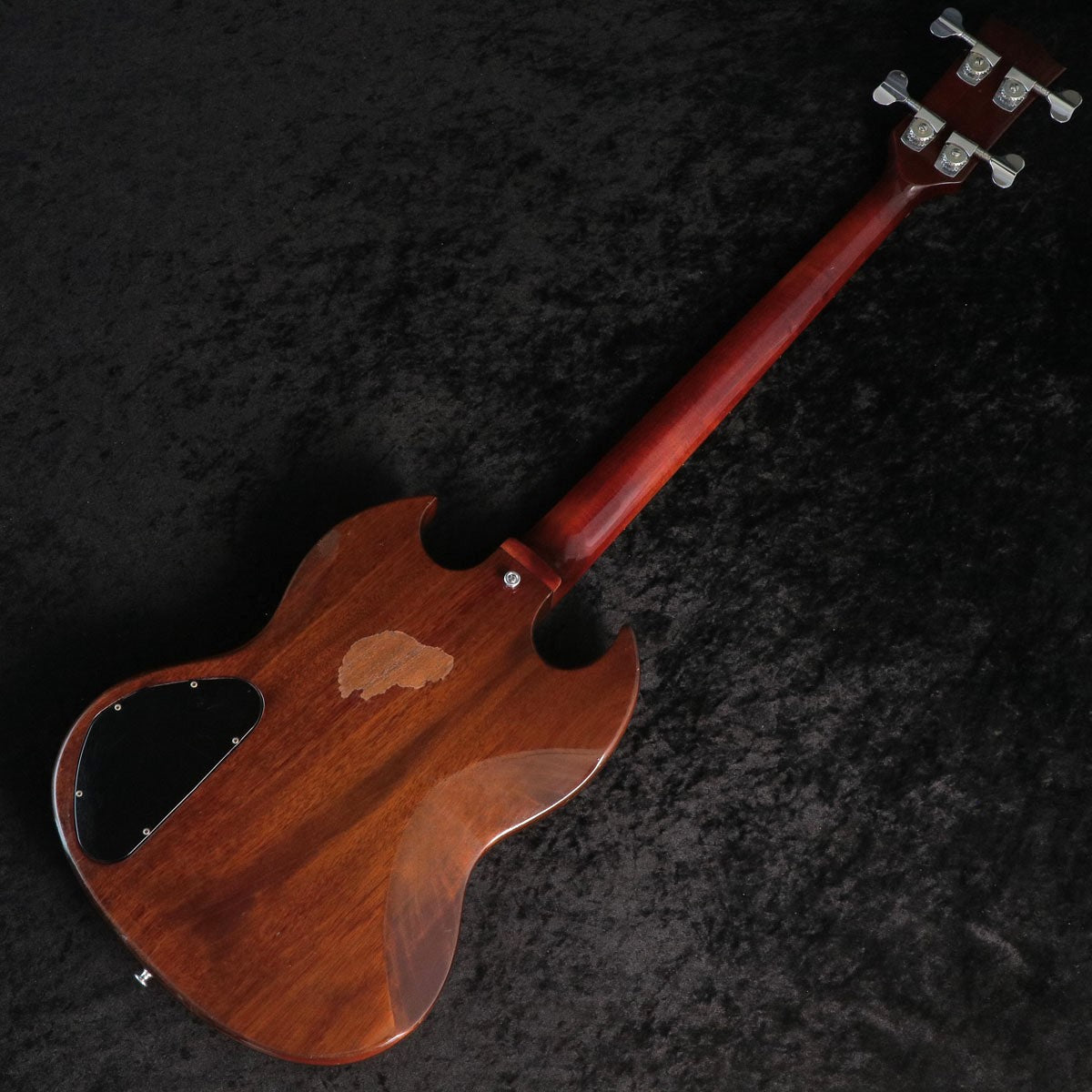

The serial number on the back of the head is "104098" and the pot date is "xxx-7320" on the volume side (the x is hidden by solder) and "137-7320" on the tone side, both indicating that it was made in 1973. Since the last 4 digits match and there is no trace of re-soldering, we judge them to be original. The pickup date was not written and could not be confirmed, but there are no traces of replacement here either, so we believe it is probably original.

The sound is full with boosted low end like EB, but the position of the pickups makes it more defined and easy to use even today. It has a glossy vintage warmth.

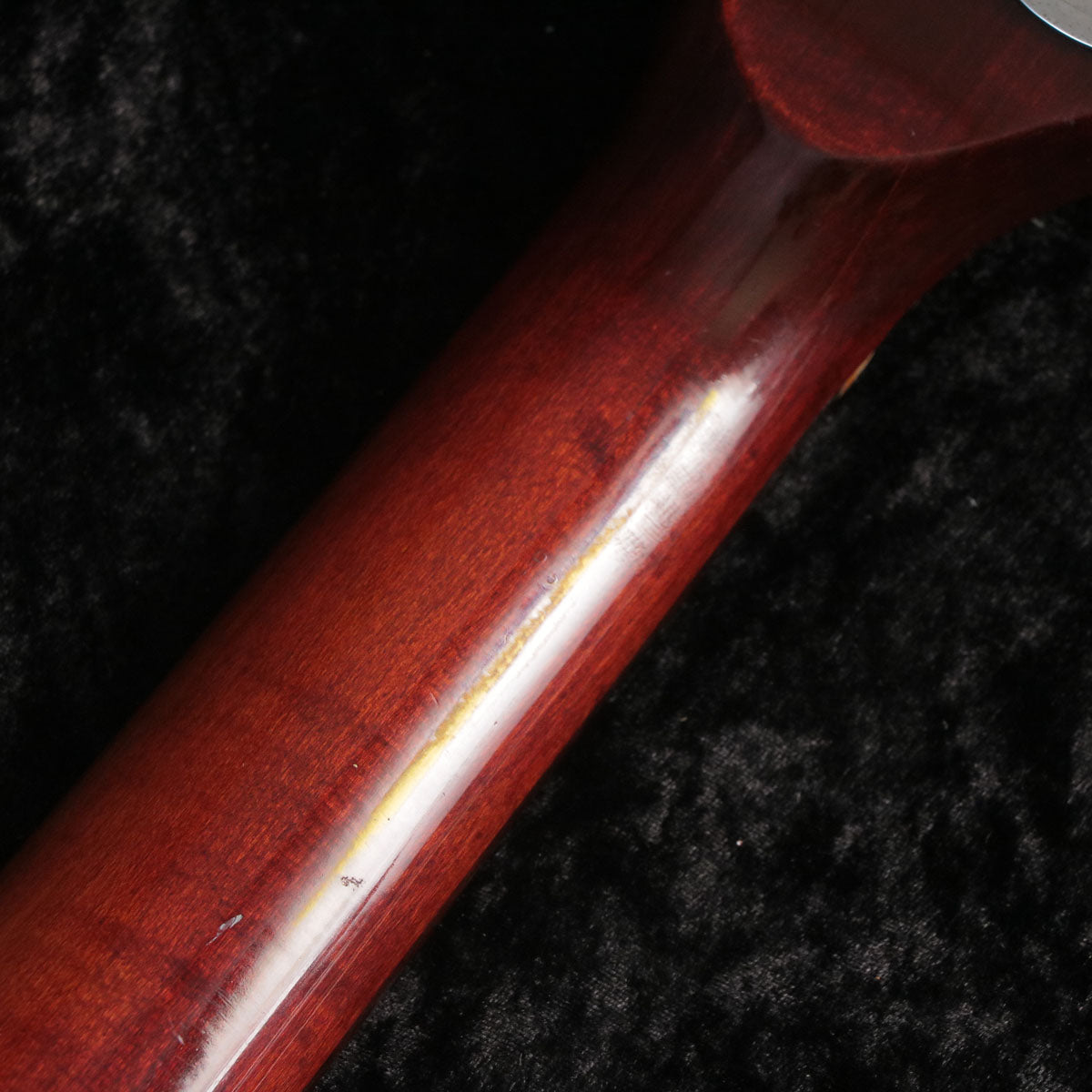

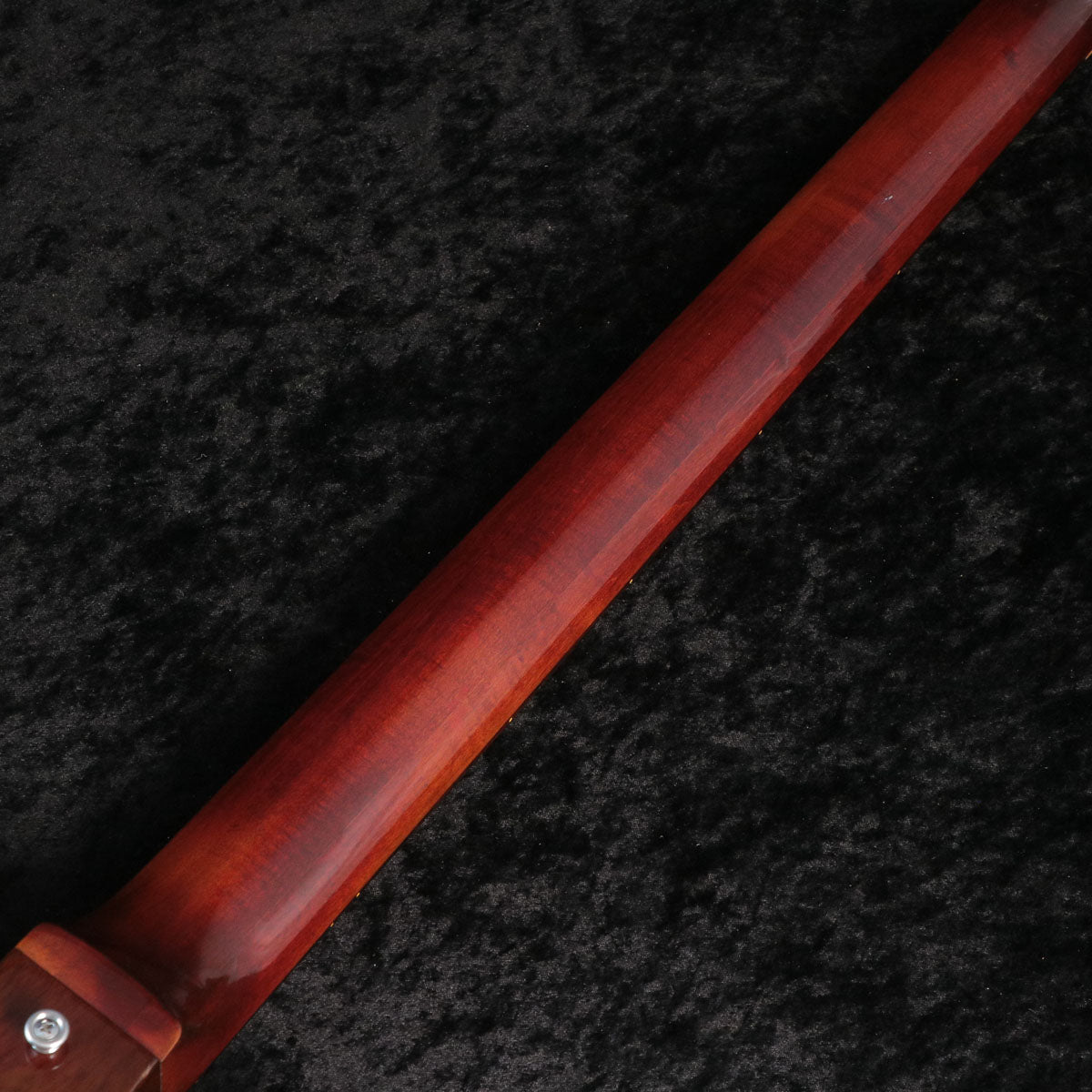

Neck is in good condition. The truss rod also works fine.

EB-4L is a relatively lightweight mahogany body model!
Please take advantage of this opportunity to purchase one!
Truss rod: No problem in tightening direction/no problem in loosening direction
Neck Condition: No problem
Fret: 60% fretted

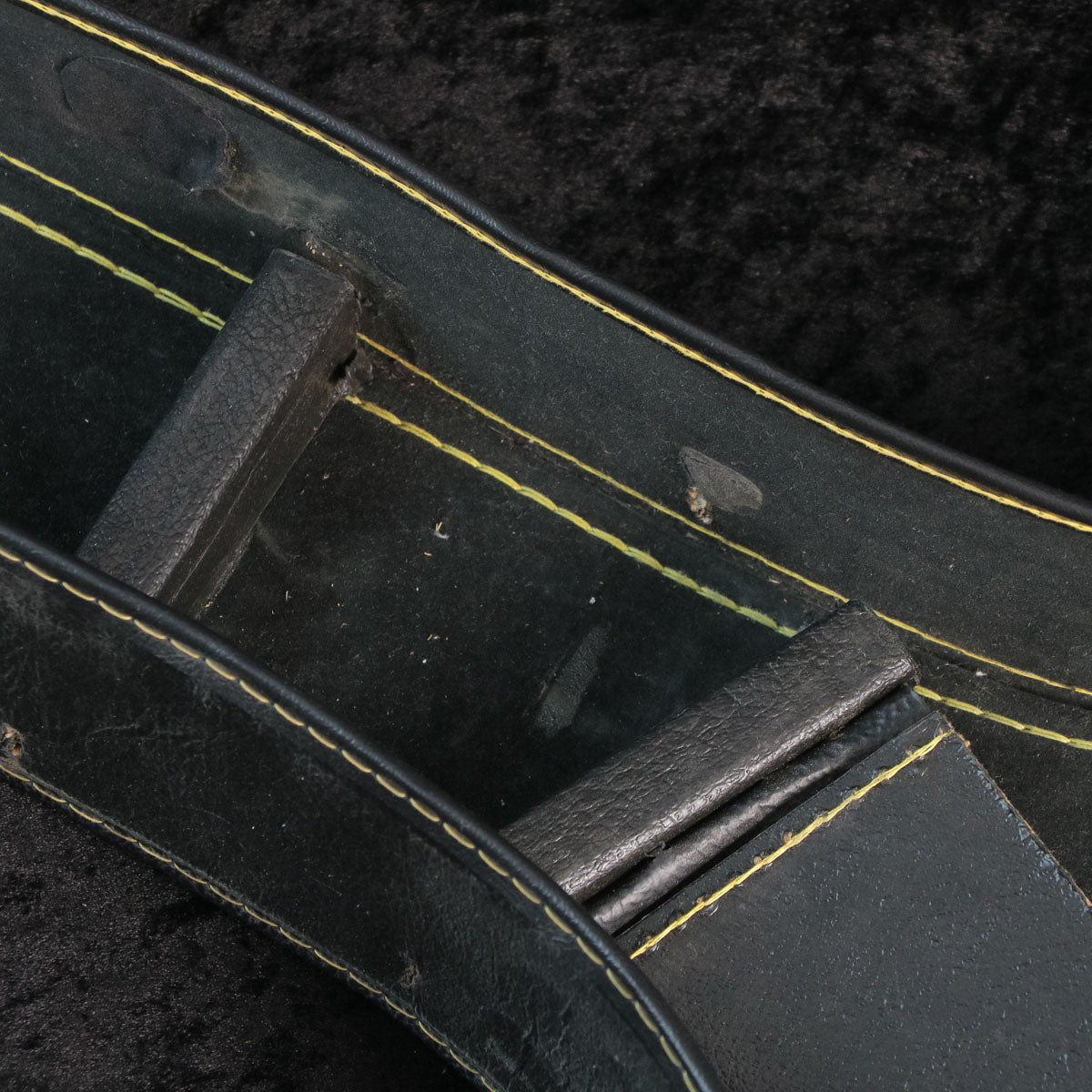

Case: Hard case (low durability)
Accessories: None
Other: 2 screws for pickguard are not tightened
Serial number:104098
Weight (kg):3.97

* Due to the nature of this product, we will refrain from showing or moving this item to other stores within Ishibashi Gakki. Please understand this in advance.
Please contact the Ochanomizu Main Store for further information.

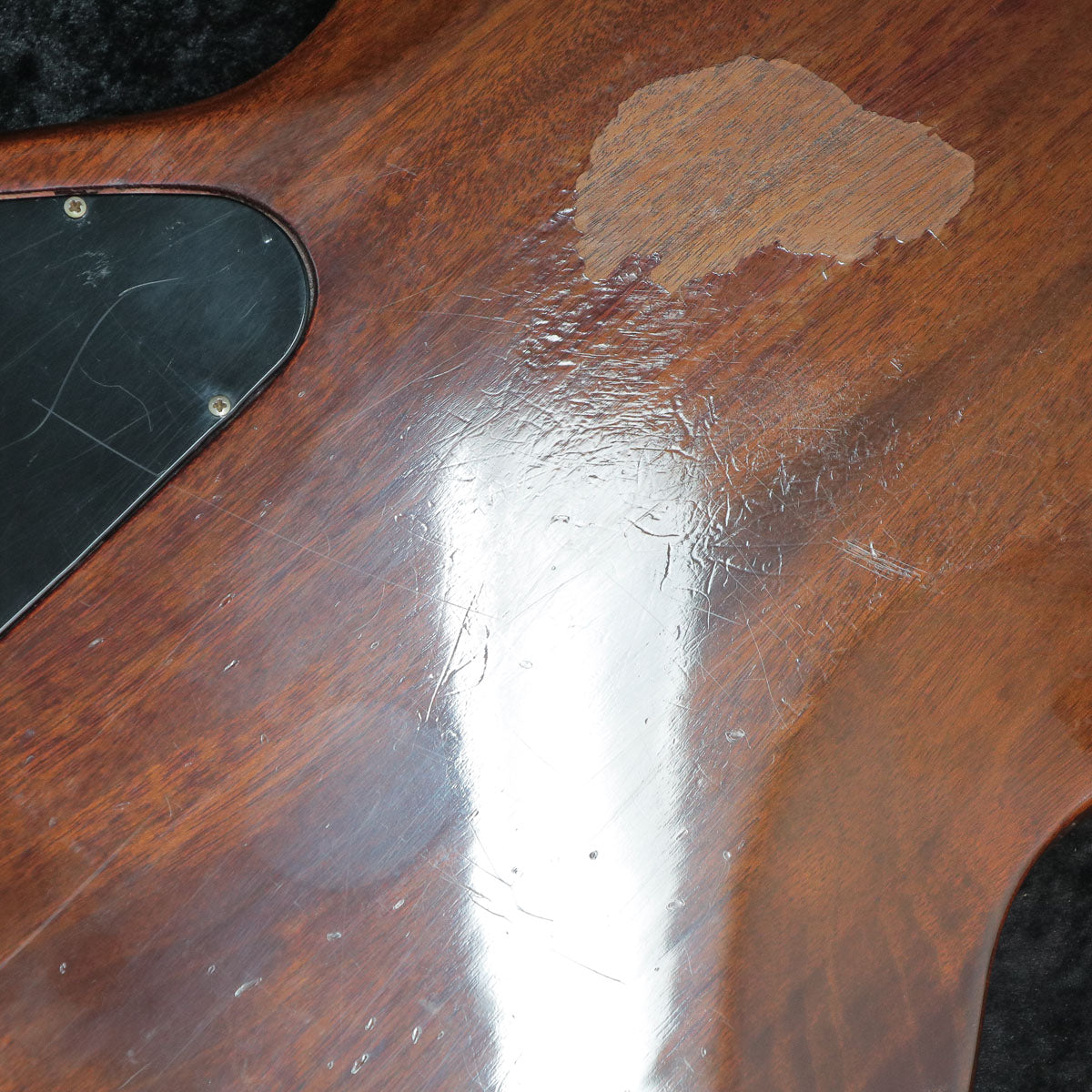

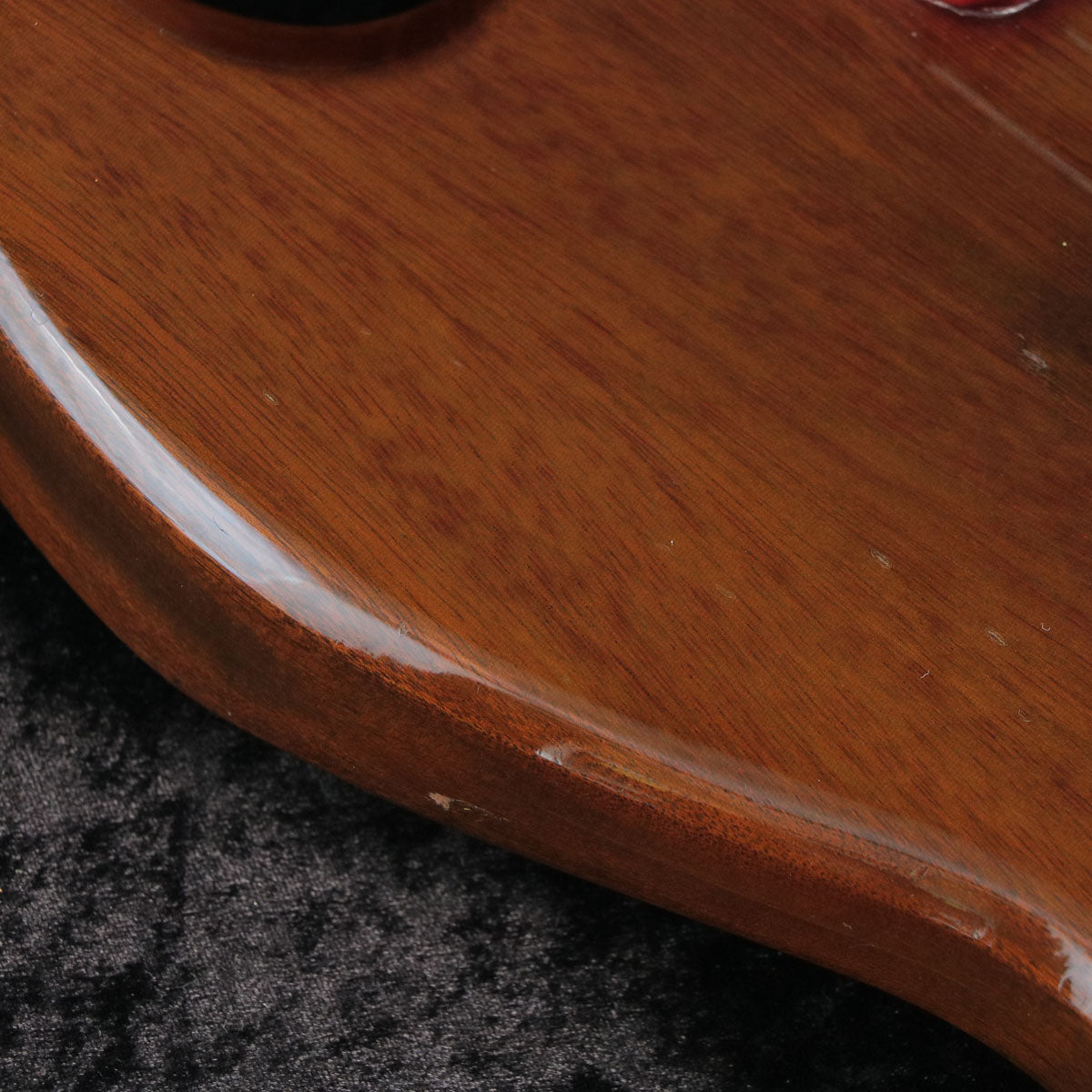

Item Rank: B: Fairly scratched and used, but no problem in normal use.

Serial Number: 104098

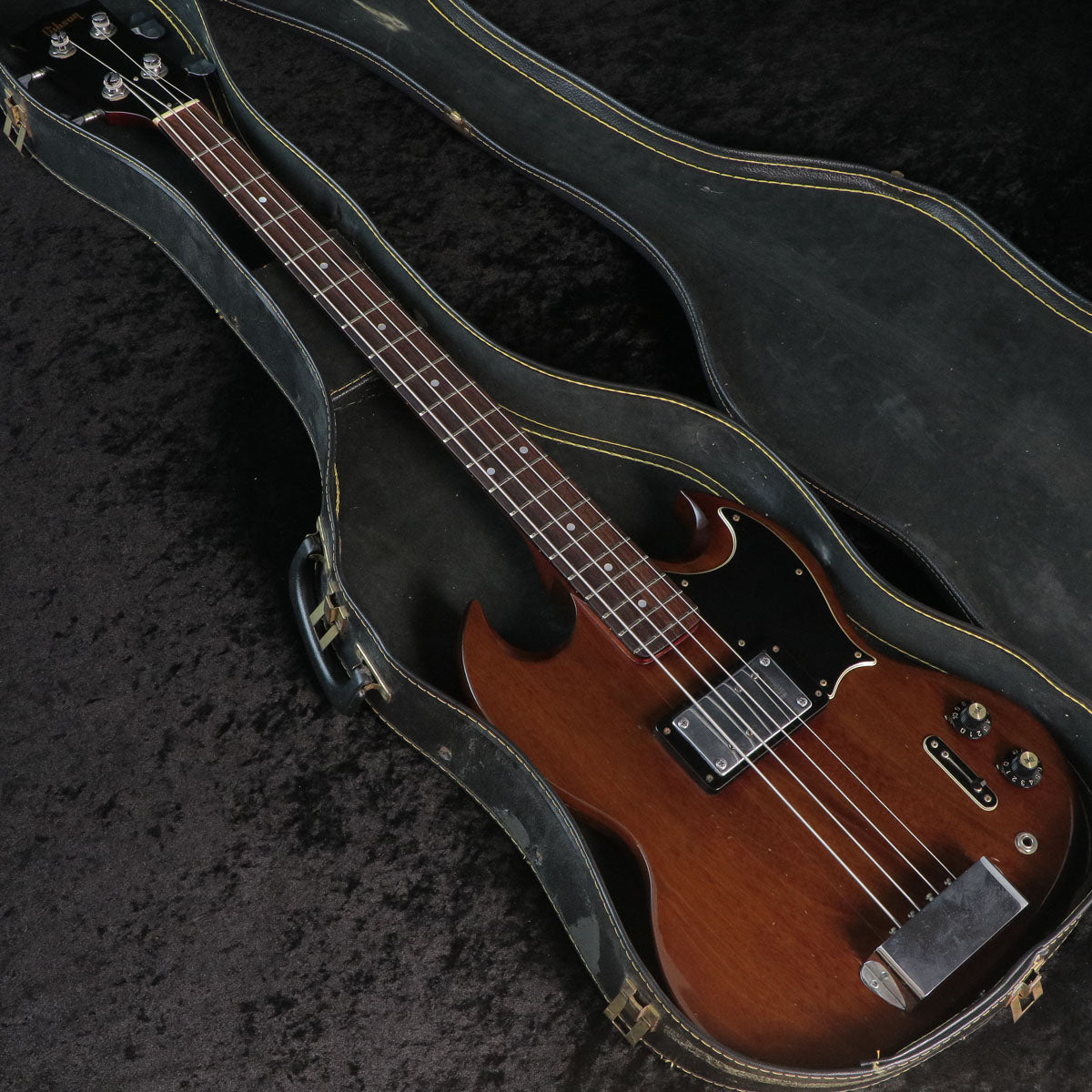

Case: Hard Case
Weight: 3.97kg
Truss Rod: Tightened side checked to 90°.
Fret Remaining: Fret height is present
String Height Low String Side: 3.0mm above 12th fret
String height on treble string side: 3.1mm above 12th fret
Nut width: 41.4mm
Neck thickness near 1st fret: 21.0mm
Neck thickness near 12th fret: 25.5mm
SCALE: 864mm (34")
RADIUS: 254mm (10")
Strings in setup: .045-.100 set
Repair and maintenance: Cleaning, string replacement, rod adjustment, octave adjustment, string height adjustment, and rubbing

* There are scratches, dents, etc. that are difficult to see in the photos or other than those listed due to the used nature of the instrument. Please understand that there are scratches, dents, etc. that are difficult to see in the photos or that are not listed.

* If the truss rod, remaining frets, or string height is indicated, it was measured by our staff at the time of setup, and may change due to climate, humidity, or other environmental factors.
The values are intended to be used as a reference at the time of purchase, and we do not guarantee that they will be the same when you receive the instrument.

* This item is a one-of-a-kind item and is listed on multiple malls at the same time, including in-store displays. We try to delete product information as soon as possible, but this is not always in real time.
We apologize in advance if the item is sold out after you place your order.

Specs (Japanese only)

Product rank
B: Fairly scratched and used, but no problem in normal use.

12 months old

Serial No.
104098

Case
Hard case

Weight
3.97kg

Truss Rod
Checked to 90° on the tightening side

Fret remainder
Fret height available

String Height Low String Side
3.0mm above 12th fret

High string side
3.1mm above the 12th fret

Nut width
41.4mm

Neck thickness near 1st fret
21.0mm

Neck thickness near 12th fret
25.5mm

Scale
864mm (34")

RADIUS
254mm (10")

Strings for Setup
.045-.100 set

Repair and maintenance parts
Cleaning, string replacement, rod adjustment, octave adjustment, string height adjustment, and rubbing
