USED FENDER USA / 1966 Jazzmaster Sunburst [03]

A 1966 Fender Jazzmaster has just arrived!!

The Fender Jazzmaster was released in 1958 as a high-end model.
Although it was originally developed for jazz musicians, as its name suggests, its unique sound and distinctive design have led to its use in rock, alternative, grunge, shoegaze, and indie rock genres. Today, it is one of the most popular models and is loved by many guitarists.

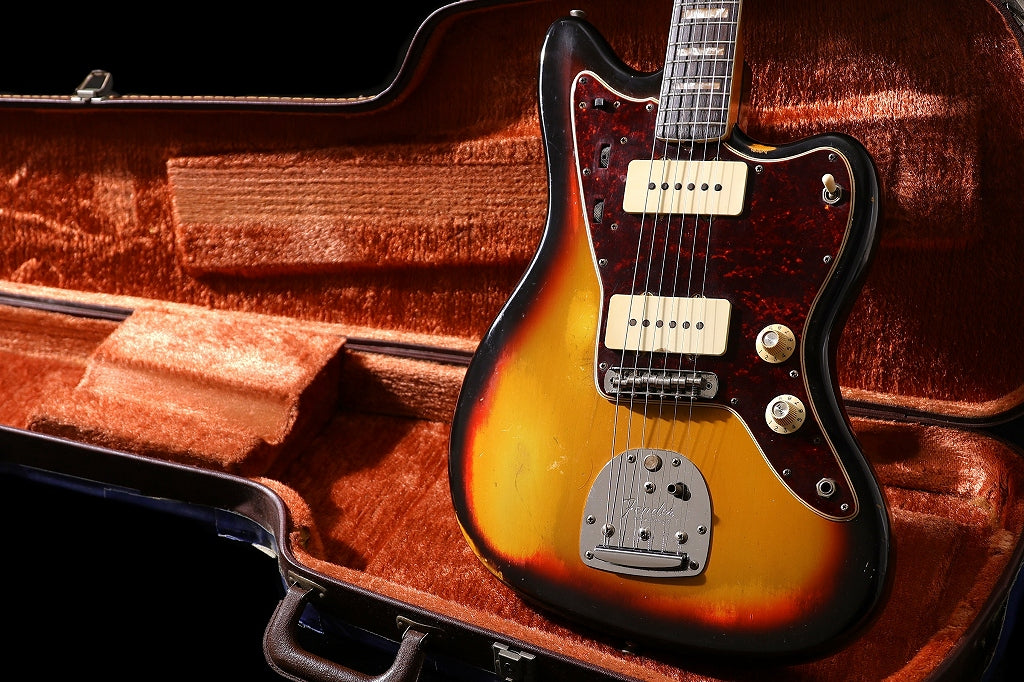

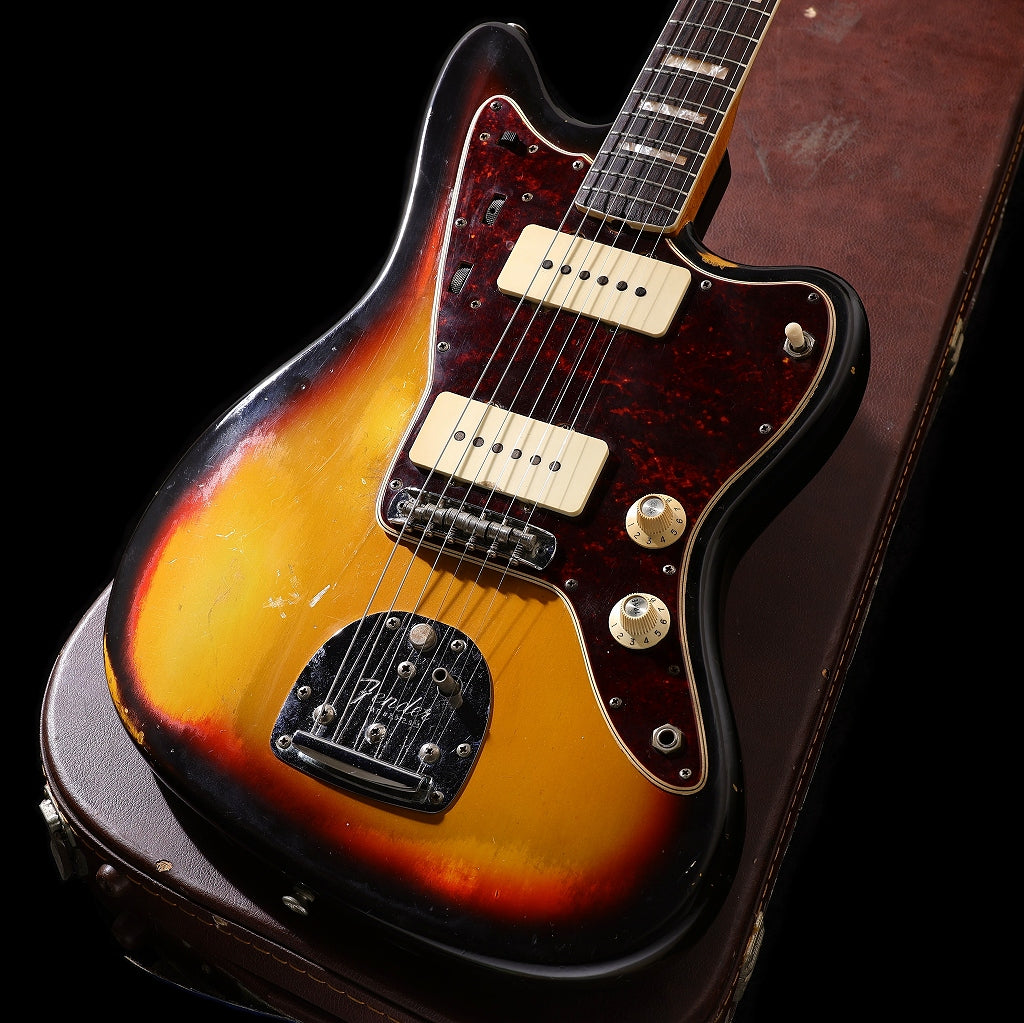

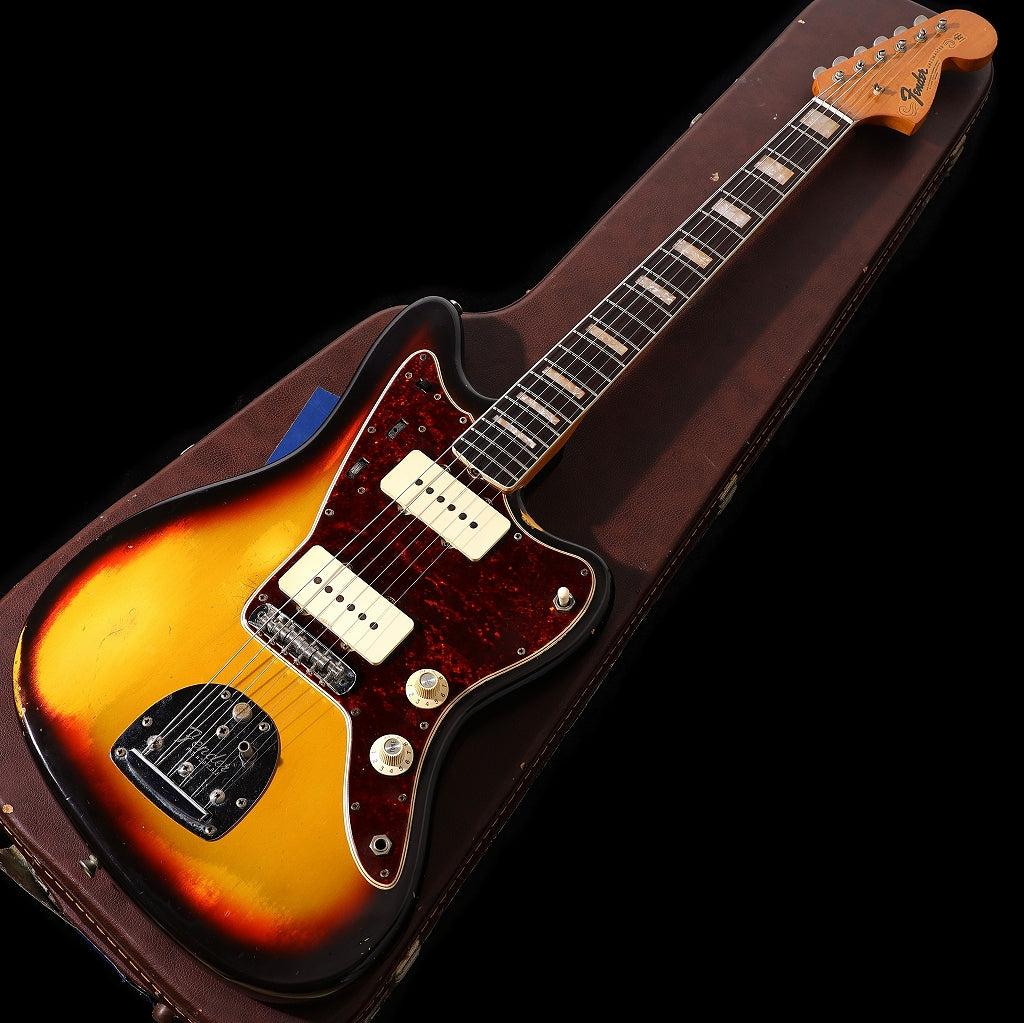

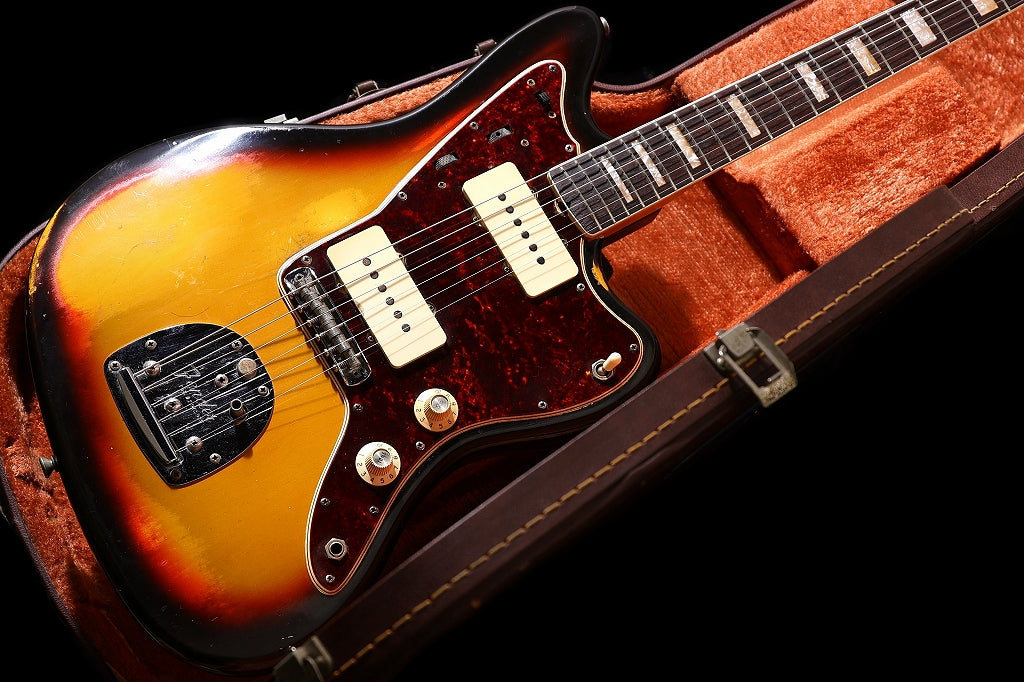

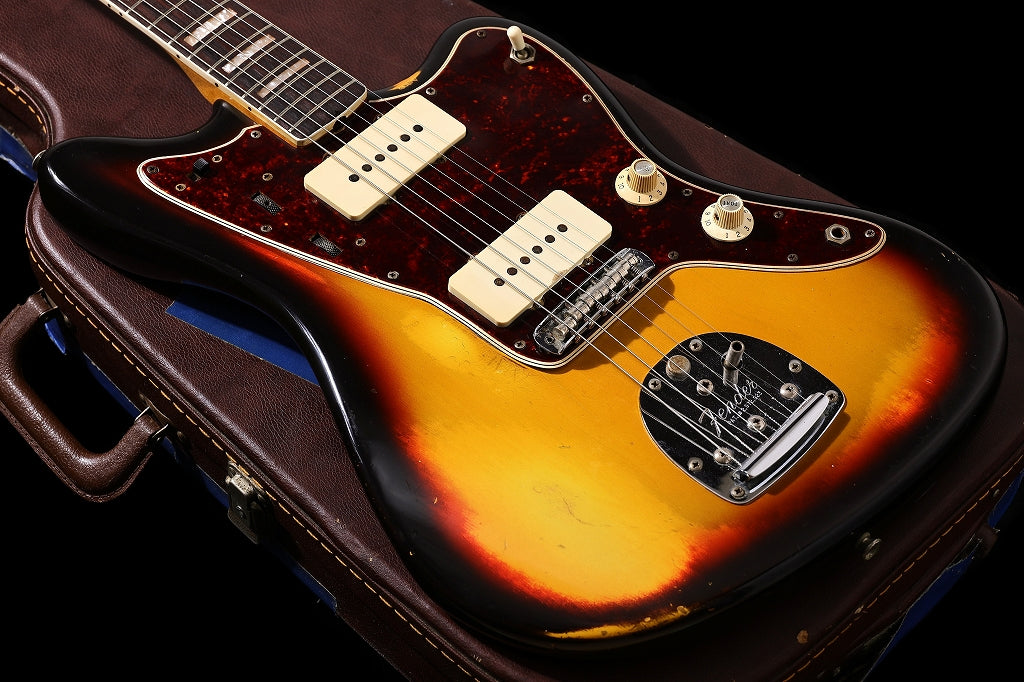

It features a classic sunburst-finished alder body with a tortoiseshell-patterned pickguard.

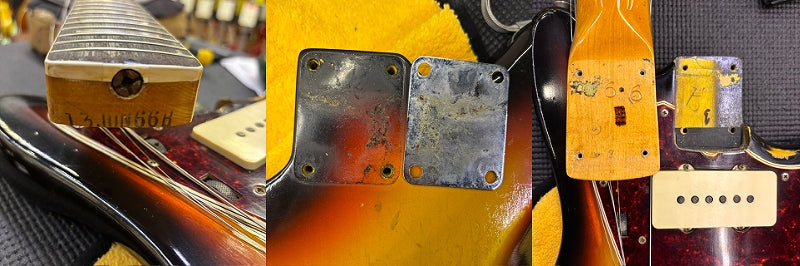

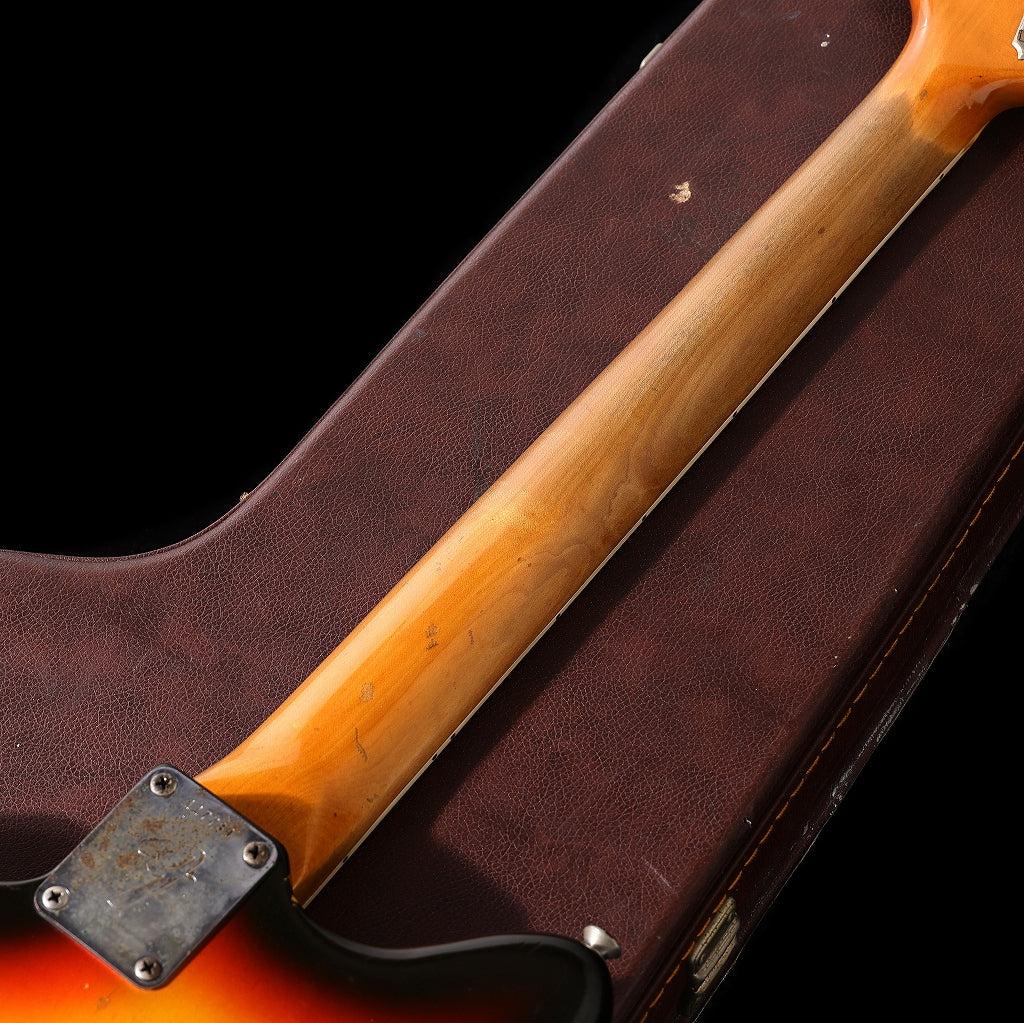

The neck, marked “13JUN66B,” is a 1966 maple neck with a rosewood fingerboard.

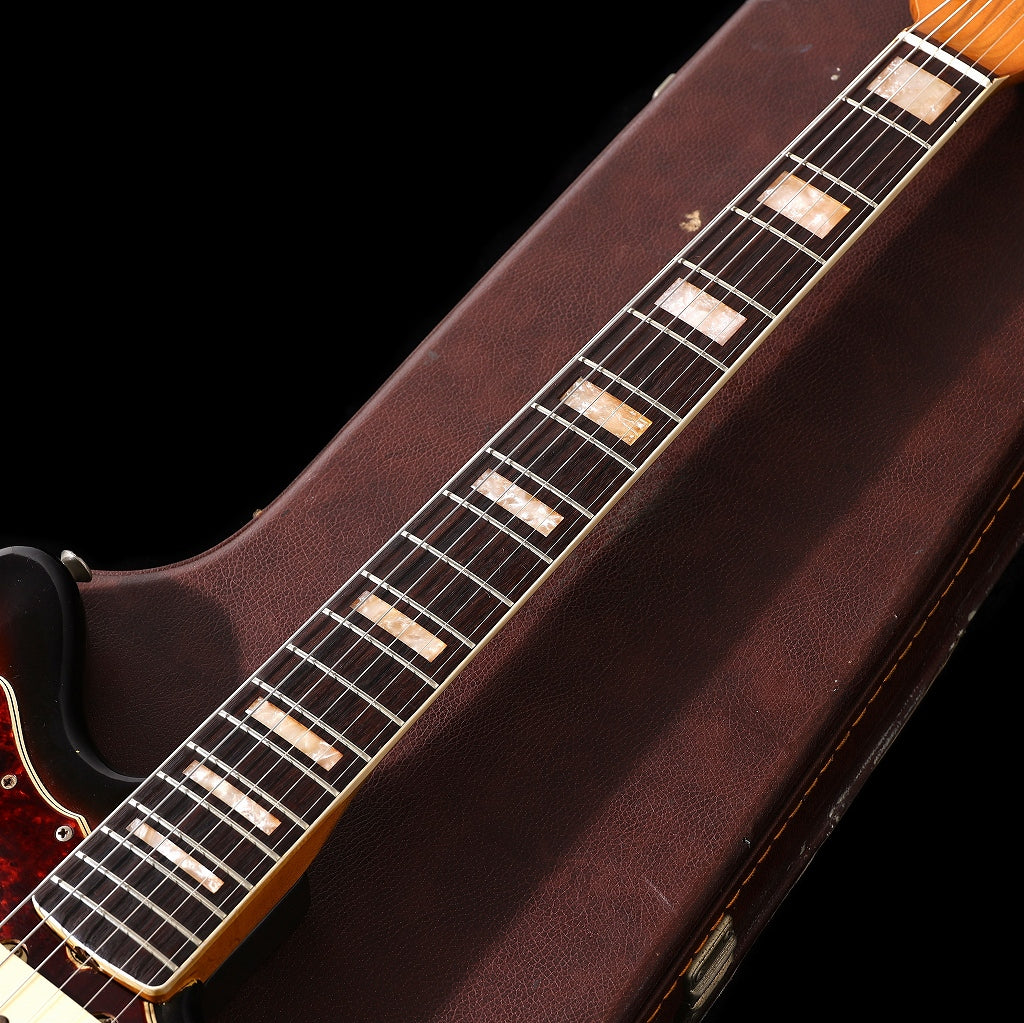

It features specifications typical of that era, such as a bound neck and block position marks.

The neck shape is a slightly thin C-shape that gives the impression of becoming
, making it a comfortable neck that’s typical of that era.

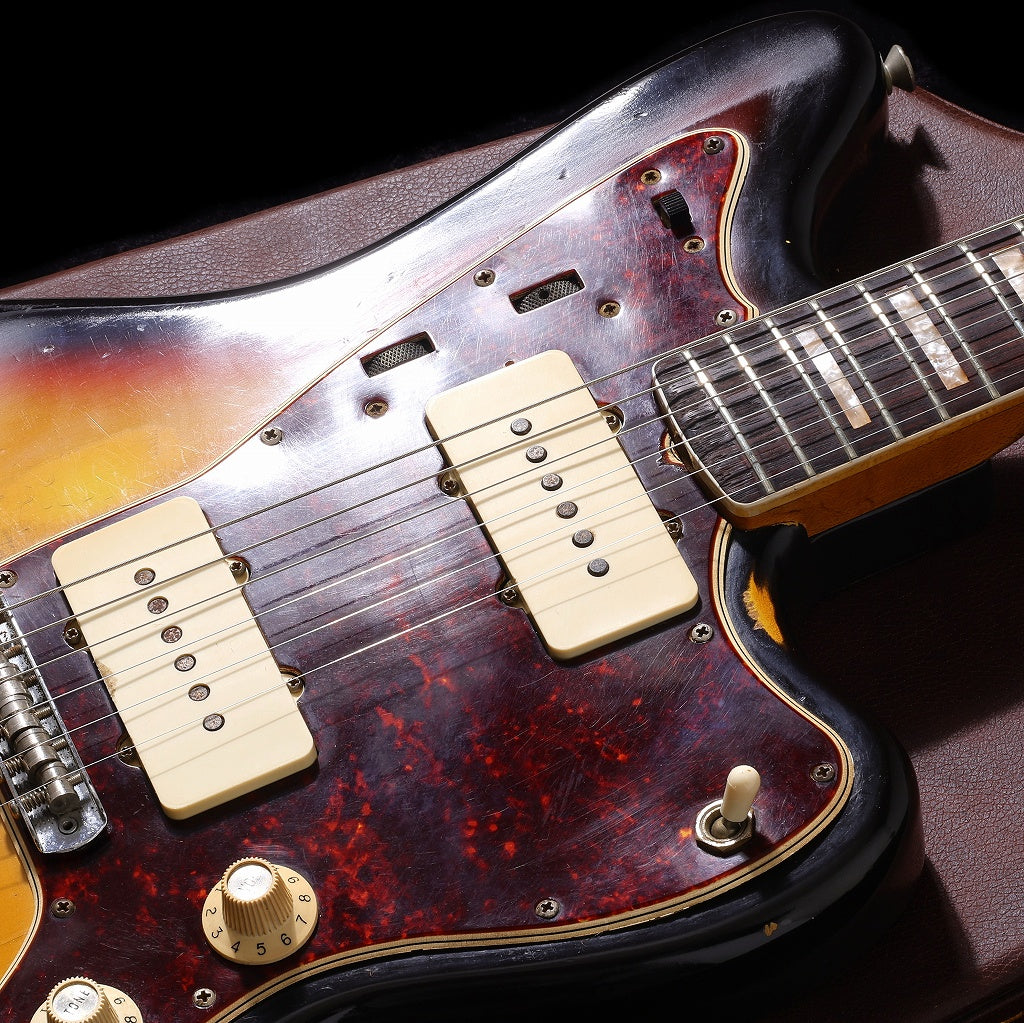

It is equipped with two pickups with gray bobbins.
The front pickup is dated 7-11-66, and the rear pickup is dated 10-14-66; both were manufactured in 1966.
Additional foam padding has been added beneath the pickups.

The sound has the crisp clarity typical of a Jazzmaster and
.

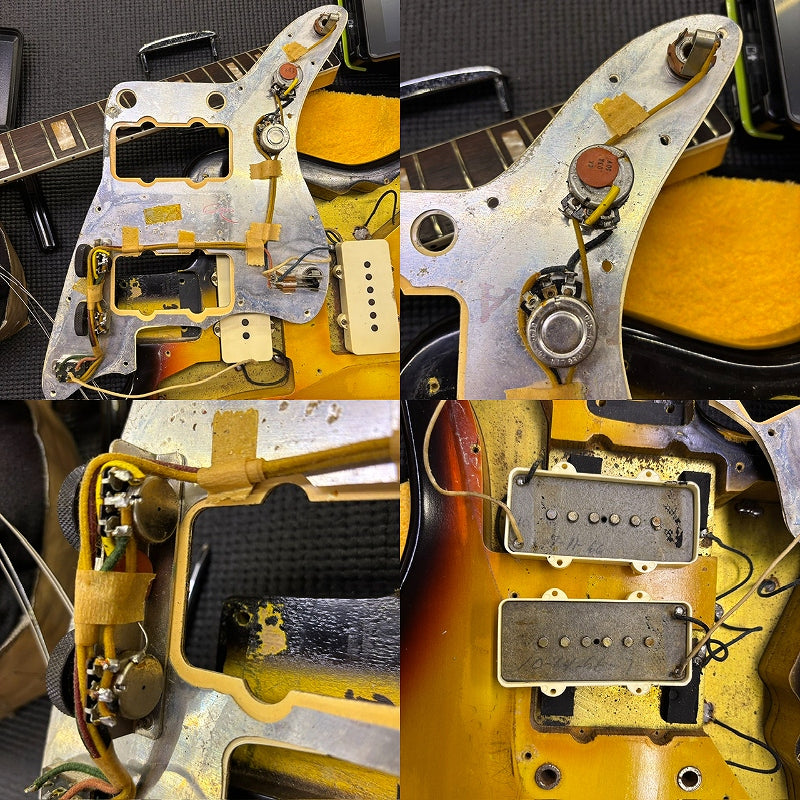

The volume pot is 304-6610, and the tone pot is 304-6612; both are original parts manufactured in 1966.

Although the dates on the pots in the preset section were not visible, they are believed to be original.
The neck has been adjusted with shims.

The truss rod nut has been replaced, and there are signs that the binding at the top of the truss rod
shows signs of having been cut and re-glued.

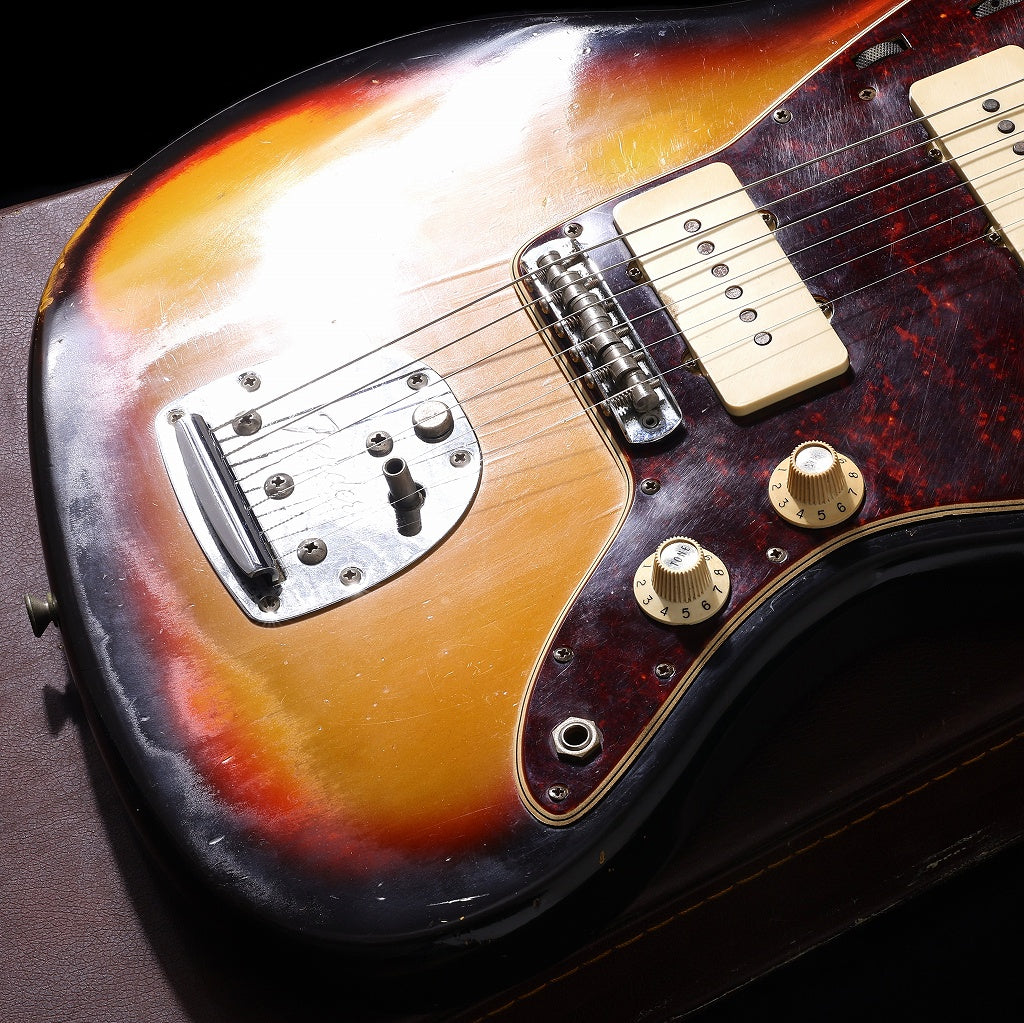

The nut has been replaced, and the bridge has likely been swapped out for a domestic Mustang-type bridge.

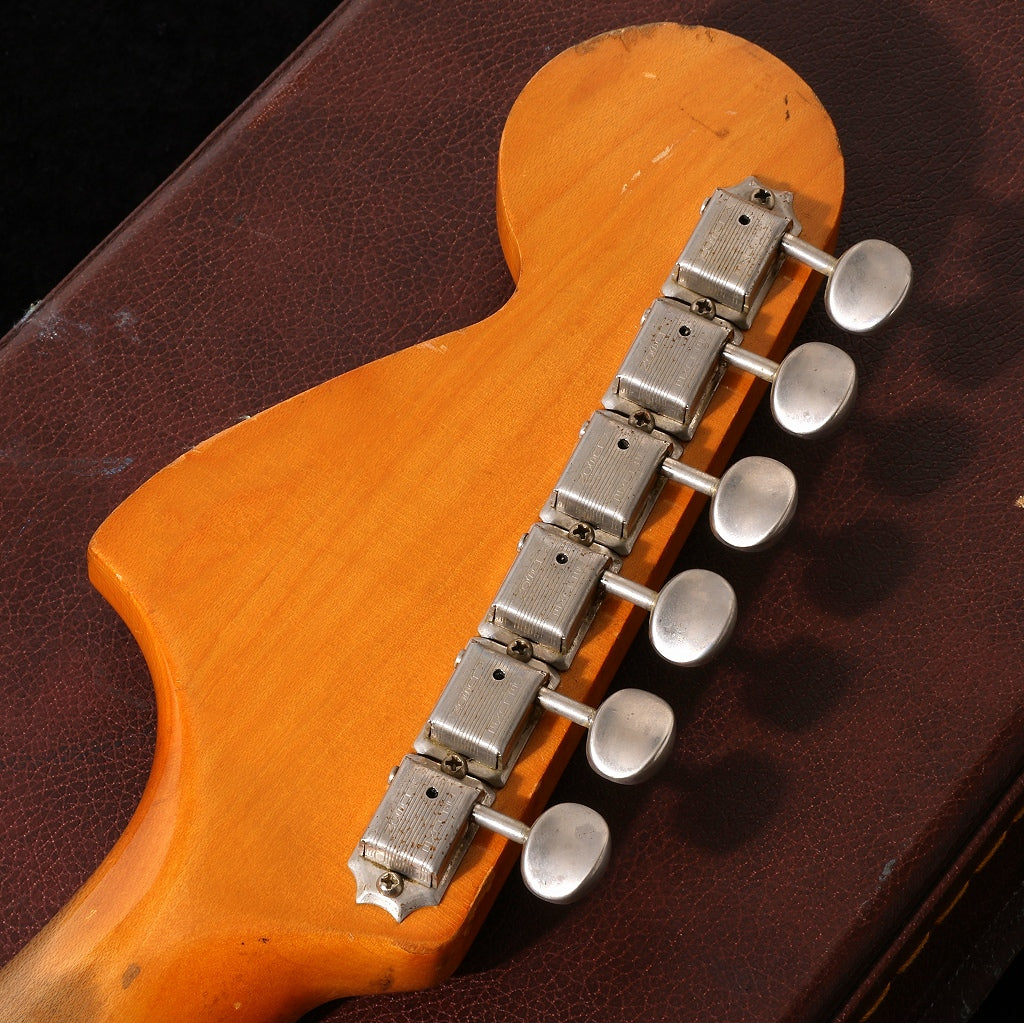

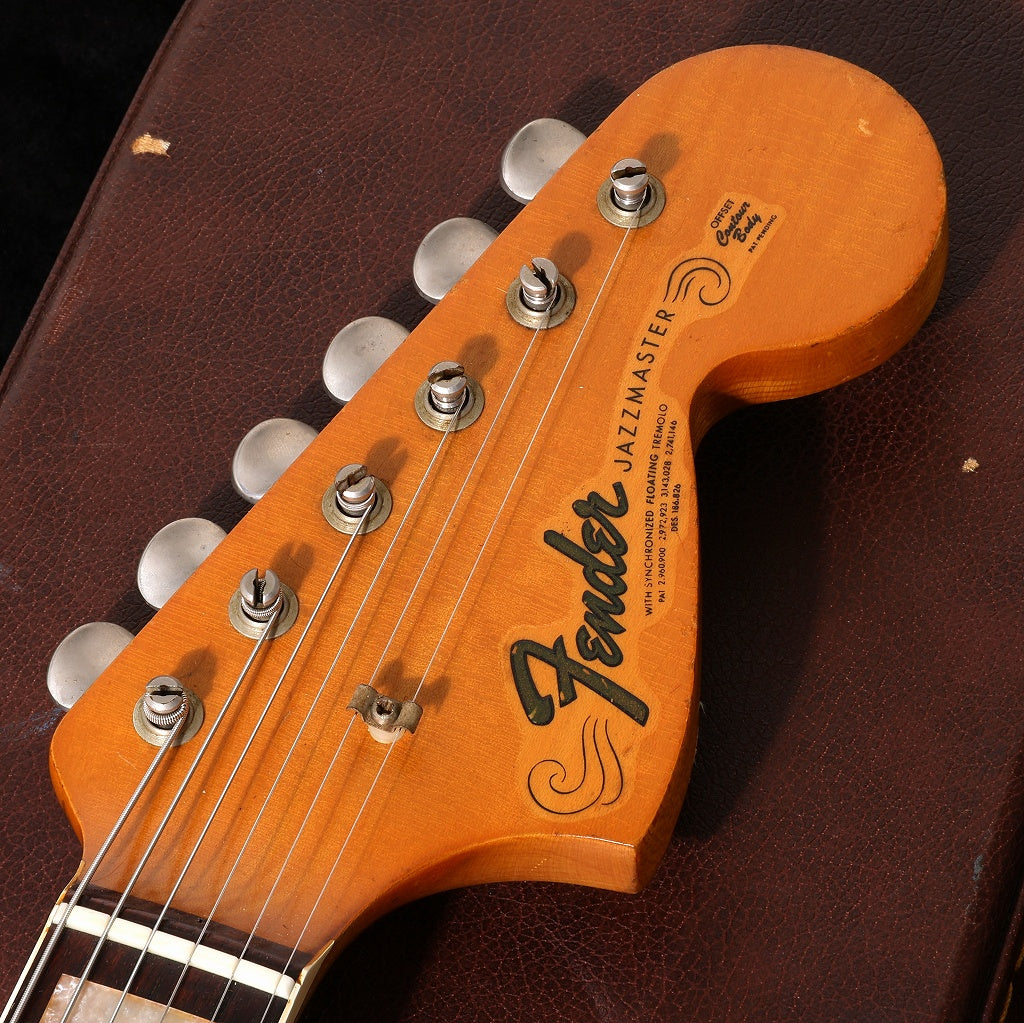

The tuning pegs for the 1st, 3rd, and 4th strings, as well as the switch knob, have been replaced.

The frets are set low, and there are areas where the sound gets muffled when bending in the higher positions,
, but since they are the original frets, they have not been replaced.

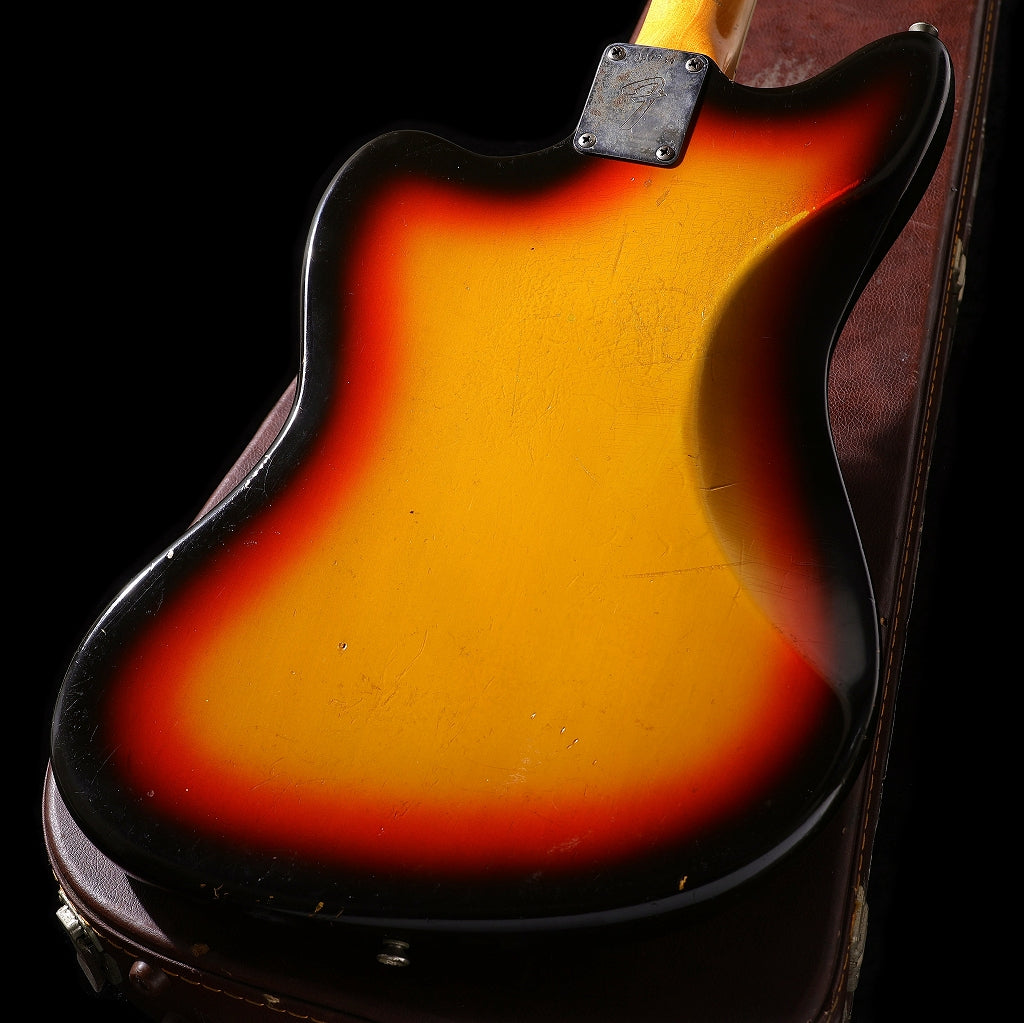

Overall, there are signs of wear such as scratches, dents, and peeling paint, but
and has a cool look!

The Vintage Jazzmaster is highly sought-after, and its value continues to rise year after year.
Please be sure to take advantage of this opportunity!

* We sincerely apologize, but we are unable to accommodate inquiries regarding this item at other Ishibashi Music stores or through our mobile service.
Please direct all inquiries to the Ishibashi Music Ochanomizu Main Store.
Truss Rod: Tested up to 60 degrees in both directions—no issues (some playability remaining)
Neck Condition: Slightly wavy
Frets: Slightly low

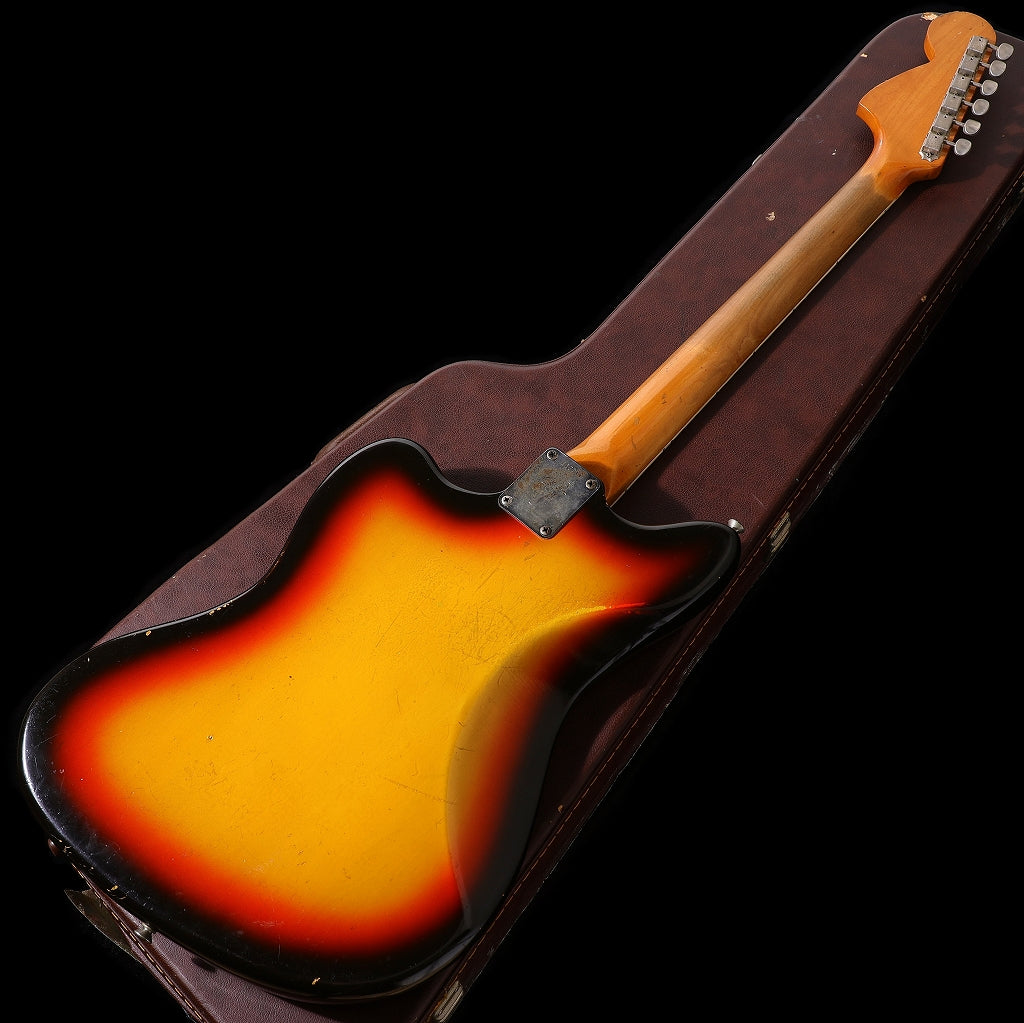

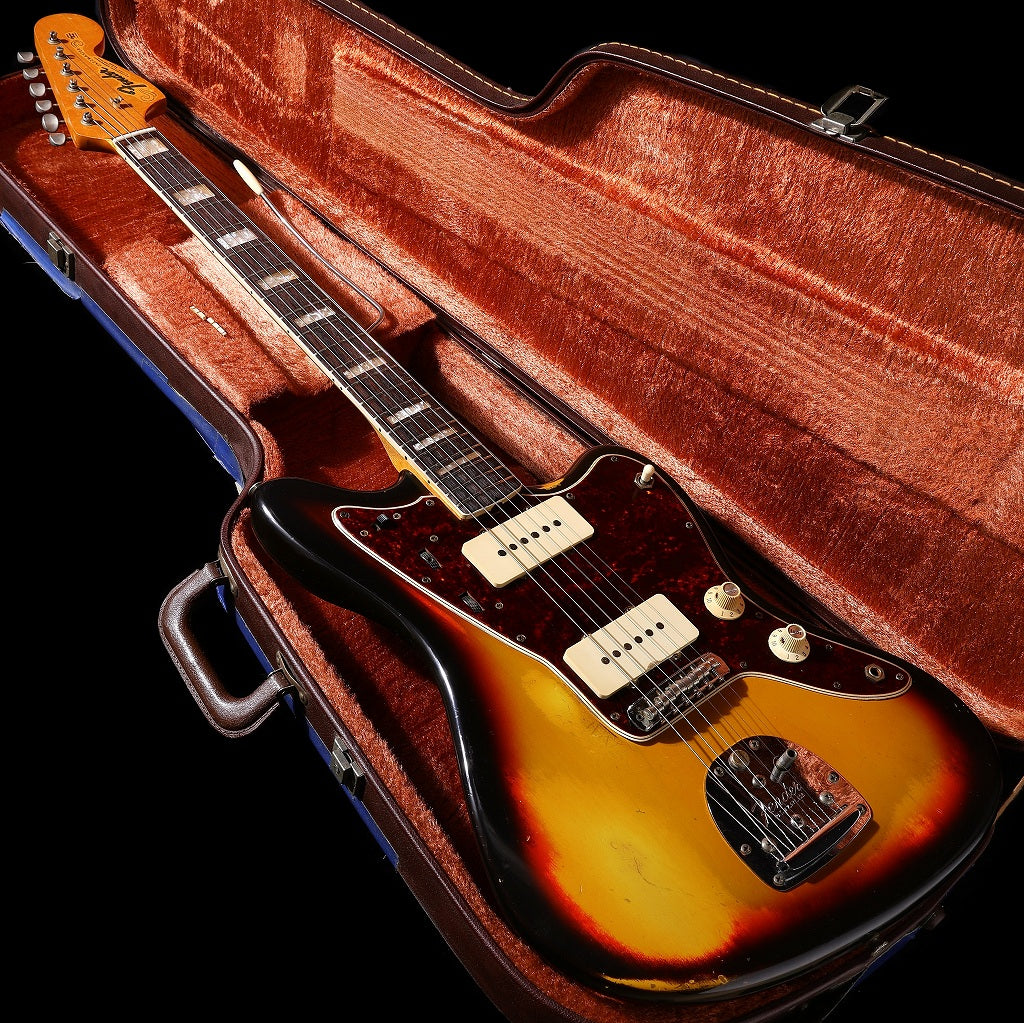

Case: Non-original hard case (shows some wear)
Accessories: Tremolo arm
Serial Number: 117730
Weight: 3.67 kg

Condition: B: Shows significant wear and signs of use, but is in good working condition for normal use

Serial Number: 117730
Year of Manufacture: 1966
Country of Manufacture: United States
Case: Hard case
Accessories: Tonearm
Weight: 3.67 kg
Truss Rod: Note: Tested up to 60 degrees to the left and right with no issues (frets are somewhat worn)
Fret Wear: Note: While the frets can still withstand filing, they are on the low side
String Height (Low String Side): 2.0 mm at the 12th fret
String action (treble side): 1.5 mm at the 12th fret
Nut width: 41.29 mm
Neck thickness near the 1st fret: 21.52 mm
Neck thickness near the 12th fret: 22.94 mm
Scale: 648 mm (25.5")
Radius: 184 mm (7.25")
Strings at Setup: ERNIE BALL 2221 / .010-.046 set
Repairs and Maintenance Performed: Cleaning, string replacement, truss rod adjustment, octave adjustment, action adjustment, and removal of string buzz

* As this is a used item, there may be scratches, dents, and other imperfections that are not clearly visible in the photos or not listed here. Please be aware of this in advance.

* Any listed measurements for the truss rod, remaining fret life, string height, etc., were taken by our staff during setup and are subject to change due to environmental factors such as climate and humidity.
These measurements are intended as a reference at the time of purchase; we cannot guarantee that the measurements will be identical when the item arrives at your location.

* This is a one-of-a-kind item that is listed simultaneously on multiple marketplaces, including our in-store display. We strive to promptly remove product listings once an item is sold, but updates may not always be in real time.
We sincerely apologize if the item happens to be sold out after you place your order, and we ask for your understanding.
